Oracle SOA Suite and WebLogic: Overview of key and keystore configuration

Keystores and the keys within can be used for security on the transport layer and application layer in Oracle SOA Suite and WebLogic Server. Keystores hold private keys (identity) but also public certificates (trust). This is important when WebLogic / SOA Suite acts as the server but also when it acts as the client. In this blog post I’ll explain the purpose of keystores, the different keystore types available and which configuration is relevant for which keystore purpose.

Why use keys and keystores?

The below image (from here) illustrates the TCP/IP model and how the different layers map to the OSI model. When in the below elaboration, I’m talking about the application and transport layers, I mean the TCP/IP model layers and more specifically for HTTP.

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration TCP IP model vs OSI model

The two main reasons why you might want to employ keystores are that

  • you want to enable security measures on the transport layer
  • you want to enable security measures on the application layer

Almost all of the below mentioned methods/techniques require the use of keys and you can imagine the correct configuration of these keys within SOA Suite and WebLogic Server is very important. They determine which clients can be trusted, how services can be called and also how outgoing calls identity themselves.

You could think transport layer and application layer security are two completely separate things. Often they are not that separated though. The combination of transport layer and application layer security has some limitations and often the same products / components are used to configure both.

  • Double encryption is not allowed. See here. ‘U.S. government regulations prohibit double encryption’. Thus you are not allowed to do encryption on the transport layer and application layer at the same time. This does not mean you cannot do this though, but you might encounter some product restrictions since, you know, Oracle is a U.S. company.
  • Oracle Webservice Manager (OWSM) allows you to configure policies that perform checks if transport layer security is used (HTTPS in this case) and is also used to configure application level security. You see this more often that a single product is used to perform both transport layer and application layer security. For example also API gateway products such as Oracle API Platform Cloud Service.

Transport layer (TLS)

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration tls

Cryptography is achieved by using keys from keystores. On the transport layer you can achieve

You can read more on TLS in SOA Suite here.

Application layer

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration application security

On application level you can achieve similar feats (authentication, integrity, security, reliability), however often more fine grained such as for example on user level or on a specific part of a message instead of on host level or for the entire connection. Performance is usually not as good as with transport layer security because the checks which need to be performed, can require actual parsing of messages instead of securing the transport (HTTP) connection as a whole regardless of what passes through. The implementation depends on the application technologies used and is thus quite variable.

  • Authentication by using security tokens such as for example
    • SAML. SAML tokens can be used in WS-Security headers for SOAP and in plain HTTP headers for REST.
    • JSON Web Tokens (JWT) and OAuth are also examples of security tokens
    • Certificate tokens in different flavors can be used which directly use a key in the request to authenticate.
    • Digest authentication can also be considered. Using digest authentication, a username-password token is created which is send using WS-Security headers.
  • Security and reliability by using message protection. Message protection consists of measures to achieve message confidentiality and integrity. This can be achieved by
    • signing. XML Signature can be used for SOAP messages and is part of the WS Security standard. Signing can be used to achieve message integrity.
    • encrypting. Encrypting can be used to achieve confidentiality.

Types of keystores

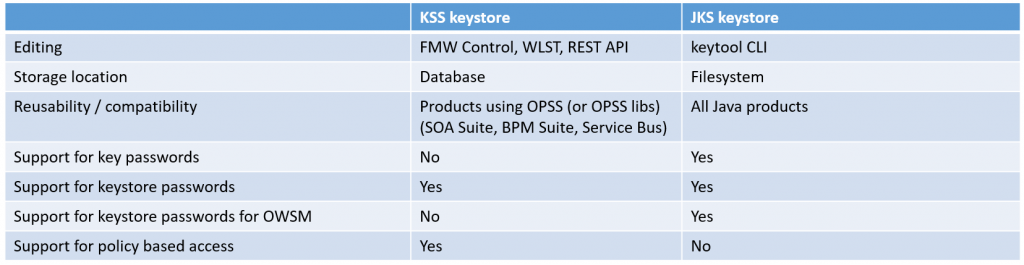

There are two types of keystores in use in WebLogic Server / OPSS. JKS keystores and KSS keystores. To summarize the main differences see below table:

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration screenshot jksvskss

JKS

There are JKS keystores. These are Java keystores which are saved on the filesystem. JKS keystores can be edited by using the keytool command which is part of the JDK. There is no direct support for editing JKS keystores from WLST, WebLogic Console or Fusion Middleware Control. You can use WLST however to configure which JKS file to use. For example see here

connect('weblogic','Welcome01','t3://localhost:7001')
edit()
startEdit()
cd ('Servers/myserver/ServerMBean/myserver')

cmo.setKeyStores('CustomIdentityAndCustomTrust')
cmo.setCustomIdentityKeyStoreFileName('/path/keystores/Identity.jks')
cmo.setCustomIdentityKeyStorePassPhrase('passphrase')
cmo.setCustomIdentityKeyStoreType('JKS')
cmo.setCustomIdentityKeyStoreFileName('/path/keystores/Trust.jks')
cmo.setCustomTrustKeyStorePassPhrase('passphrase')
cmo.setCustomTrustKeyStoreType('JKS')

save()
activate()
disconnect()

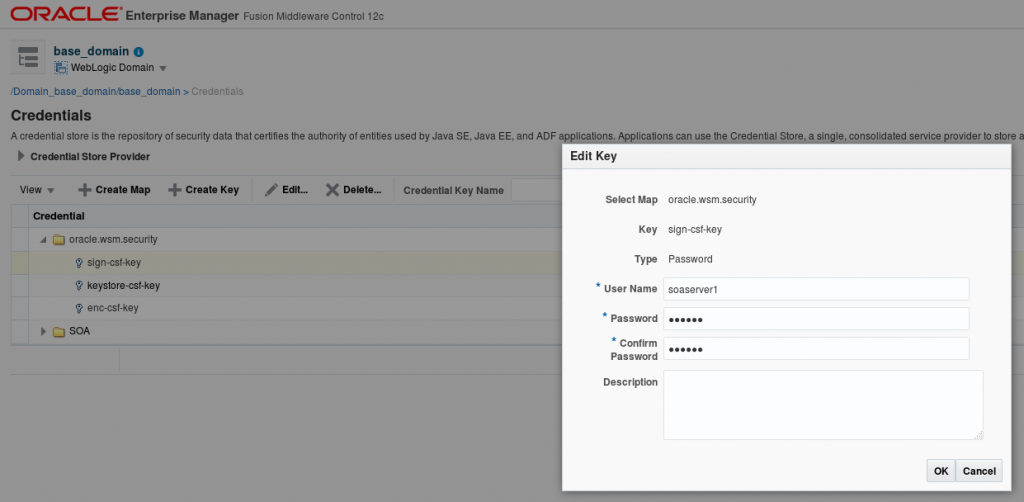

Keys in JKS keystores can have passwords as can keystores themselves. If you use JKS keystores in OWSM policies, you are required to configure the key passwords in the credential store framework (CSF). These can be put in the map: oracle.wsm.security and can be called: keystore-csf-key, enc-csf-key, sign-csf-key. Read more here. In a clustered environment you should make sure all the nodes can access the configured keystores/keys by for example putting them on a shared storage.

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration CaptureSignKey 1

KSS

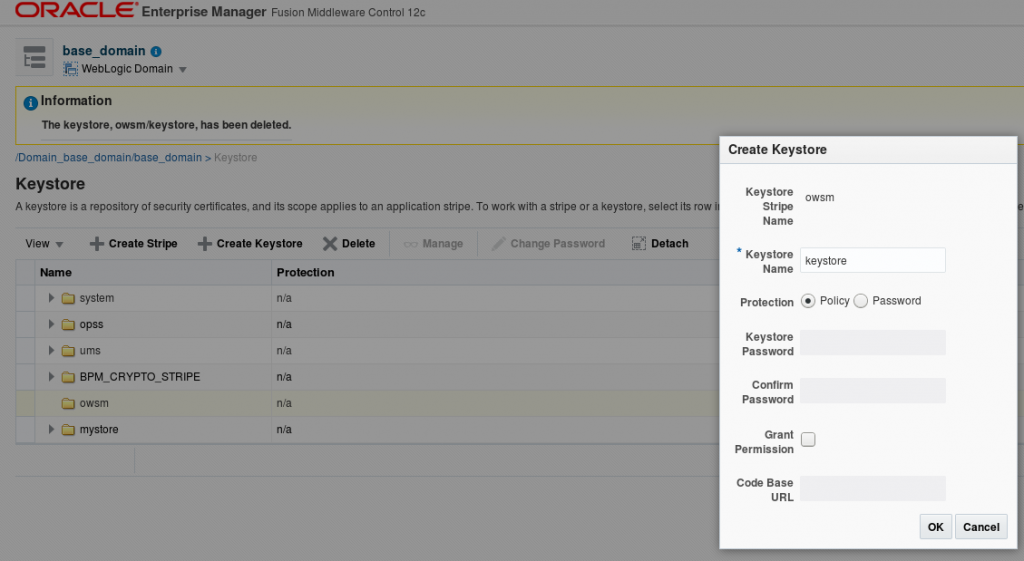

OPSS also offers KeyStoreService (KSS) keystores. These are saved in a database in an OPSS schema which is created by executing the RCU (repository creation utility) during installation of the domain. KSS keystores are the default keystores to use since WebLogic Server 12.1.2 (and thus for SOA Suite since 12.1.3). KSS keystores can be configured to use policies to determine if access to keys is allowed or passwords. The OWSM does not support using a KSS keystore which is protected with a password (see here: ‘Password protected KSS keystores are not supported in this release’) thus for OWSM, the KSS keystore should be configured to use policy based access.

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration CapturePolicyBased

KSS keys cannot be configured to have a password and using keys from a KSS keystore in OWSM policies thus do not require you to configure credential store framework (CSF) passwords to access them. KSS keystores can be edited from Fusion Middleware Control, by using WLST scripts or even by using a REST API (here). You can for example import JKS files quite easily into a KSS store with WLST using something like:

connect('weblogic','Welcome01','t3://localhost:7001')
svc = getOpssService(name='KeyStoreService')
svc.importKeyStore(appStripe='mystripe', name='keystore2', password='password',aliases='myOrakey', keypasswords='keypassword1', type='JKS', permission=true, filepath='/tmp/file.jks')

Where and how are keystores / keys configured

As mentioned above, keys within keystores are used to achieve transport security and application security for various purposes. If we translate this to Oracle SOA Suite and WebLogic Server.

Transport layer

Incoming

  • Keys are used to achieve TLS connections between different components of the SOA Suite such as Admin Servers, Managed Servers, Node Managers. The keystore configuration for those can be done from the WebLogic Console for the servers and manually for the NodeManager. You can configure identity and trust this way and if the client needs to present a certificate of its own so the server can verify its identity. See for example here on how to configure this.
  • Keys are used to allow clients to connect to servers via a secure connection (in general, so not specific for communication between WebLogic Server components). This configuration can be done in the same place as above, with the only difference that no manual editing of files on the filesystem is required (since no NodeManager is relevant here).

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration CaptureSetIdentityAndTrust

Outgoing

Composites (BPEL, BPM)

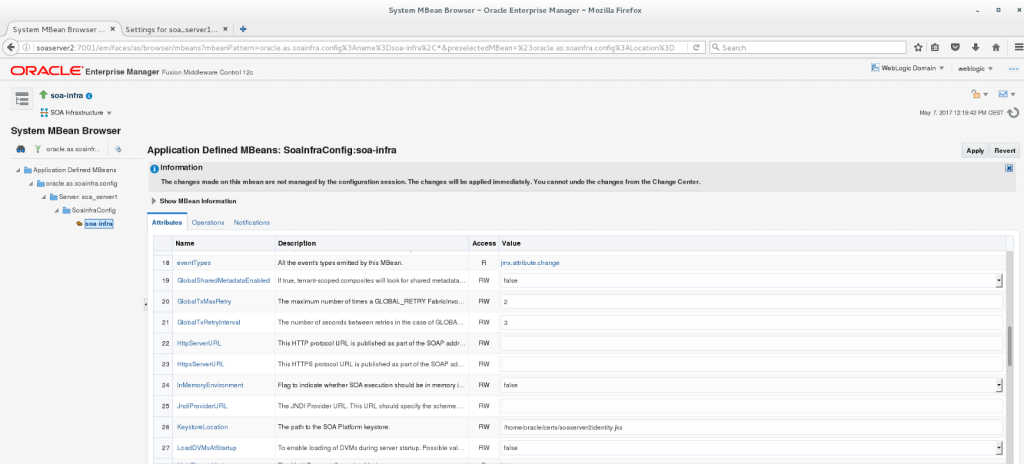

Keys are be used to achieve TLS connections to different systems from the SOA Suite. The SOA Suite acts as the client here. The configuration of identity keystore can be done from Fusion Middleware Control by setting the KeystoreLocation MBean. See the below image. Credential store entries need to be added to store the identity keystore password and key password. Storing the key password is not required if it is the same as the keystore password. The credential keys to create for this are: SOA/KeystorePassword and SOA/KeyPassword with the user being the same as the keyalias from the keystore to use). In addition components also need to be configured to use a key to establish identity. In the composite.xml a property oracle.soa.two.way.ssl.enabled can be used to enable outgoing two-way-ssl from a composite.

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration CaptureSetTruststore

Setting SOA client identity store for 2-way SSL



Oracle SOA Suite and WebLogic: Overview of key and keystore configuration CaptureSOACredentialStore

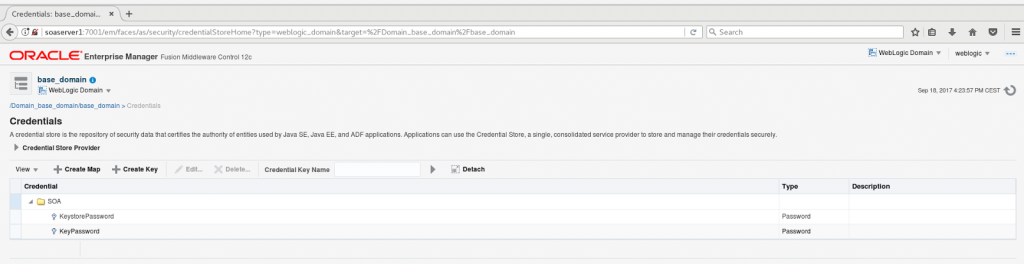

Specifying the SOA client identity keystore and key password in the credential store

You can only specify one keystore/key for all two-way-SSL outgoing composite connections. This is not a setting per process. See here.

Service Bus

The Service Bus configuration for outgoing SSL connections is quite different from the composite configuration. The following blog here describes the locations where to configure the keystores and keys nicely. In WebLogic Server console, you create a PKICredentialMapper which refers to the keystore and also contains the keystore password configuration. From the Service Bus project, a ServiceKeyProvider can be configured which uses the PKICredentialMapper and contains the configuration for the key and key password to use. The ServiceKeyProvider configuration needs to be done from the Service Bus console since JDeveloper can not resolve the credential mapper.

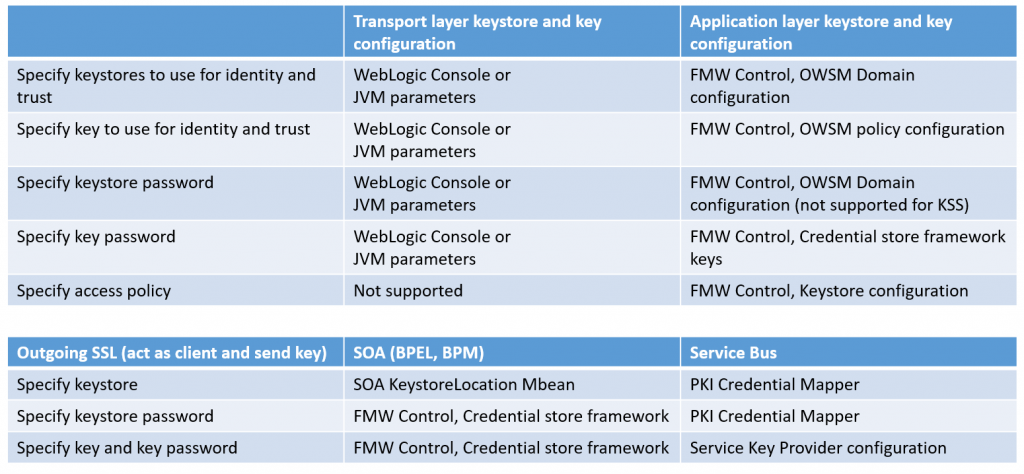

To summarize the above:

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration outgoingsslconfig

Overwriting keystore configuration with JVM parameters

You can override the keystores used with JVM system parameters such as javax.net.ssl.trustStore, javax.net.ssl.trustStoreType, javax.net.ssl.trustStorePassword, javax.net.ssl.keyStore, javax.net.ssl.keyStoreType, javax.net.ssl.keyStorePassword in for example the setDomainEnv script. These will override the WebLogic Server configuration and not the OWSM configuration (application layer security described below). Thus if you specify for example an alternative truststore by using the command-line, this will not influence HTTP connections going from SOA Suite to other systems. Even when message protection (using WS-Security) has been enabled, which uses keys and check trust. It will influence HTTPS connections though. For more detail on the above see here.

Application layer

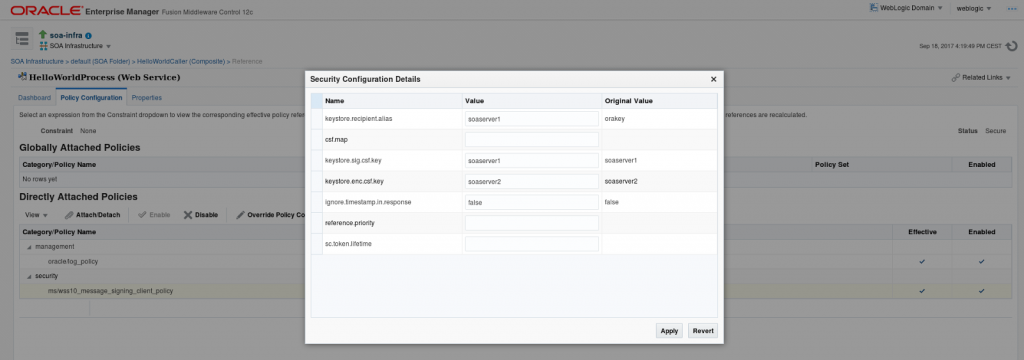

Keys can be used by OWSM policies to for example achieve message protection on the application layer. This configuration can be done from Fusion Middleware Control.

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration CapturePolicyOverride

The OWSM run time does not use the WebLogic Server keystore that is configured using the WebLogic Server Administration Console and used for SSL. The keystore which OWSM uses by default is kss://owsm/keystore since 12.1.2 and can be configured from the OWSM Domain configuration. If you do not use the default keystore name for the KSS keystore, you must grant permission to the wsm-agent-core.jar in OPSS.

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration CaptureOWSMKeystore

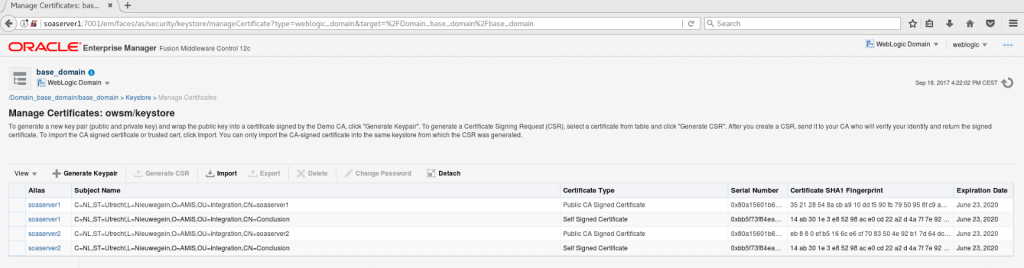

OWSM keystore contents and management from FMW Control

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration CaptureOWSMKeystoreConfig

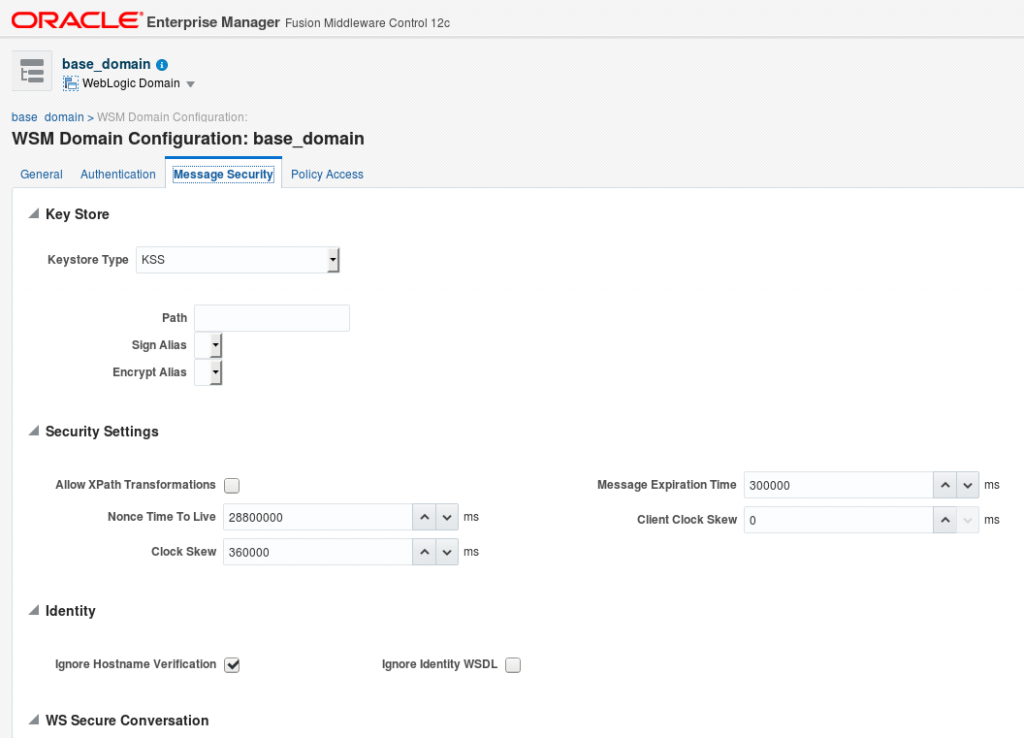

OWSM keystore domain config

In order for OWSM to use JKS keystores/keys, credential store framework (CSF) entries need to be created which contain the keystore and key passwords. The OWSM policy configuration determines the key alias to use. For KSS keystores/keys no CSF passwords to access keystores/keys are required since OWSM does not support KSS keystores with password and KSS does not provide a feature to put a password on keys. In this case the OWSM policy parameters such as keystore.sig.csf.key refer to a key alias directly instead of a CSF entry which has the key alias defined as the username.

Identity for outgoing connections (application policy level, e.g. signing and encryption keys) is established by using OWSM policy configuration. Trust for SAML/JWT (secure token service and client) can be configured from the OWSM Domain configuration.

Oracle SOA Suite and WebLogic: Overview of key and keystore configuration CaptureSAMLJWTTrust

Finally

This is only the tip of the iceberg

There is a lot to tell in the area of security. Zooming in on transport and application layer security, there is also a wide range of options and do’s and don’ts. I have not talked about the different choices you can make when configuring application or transport layer security. The focus of this blog post has been to provide an overview of keystore configuration/usage and thus I have not provided much detail. If you want to learn more on how to achieve good security on your transport layer, read here. To configure 2-way SSL using TLS 1.2 on WebLogic / SOA Suite, read here. Application level security is a different story altogether and can be split up in a wide range of possible implementation choices.

Different layers in the TCP/IP model

If you want to achieve solid security, you should look at all layers of the TCP/IP model and not just at the transport and application layer. Thus it also helps if you use different security zones, divide your network so your development environment cannot by accident access your production environment or the other way around.

Final thoughts on keystore/key configuration in WebLogic/SOA Suite

When diving into the subject, I realized using and configuring keys and keystores can be quite complex. The reason for this is that it appears that for every purpose of a key/keystore, configuration in a different location is required. It would be nice if that was it, however sometimes configuration overlaps such as for example the configuration of the truststore used by WebLogic Server which is also used by SOA Suite. This feels inconsistent since for outgoing calls, composites and service bus use entirely different configuration. It would be nice if it could be made a bit more consistent and as a result simpler.
