Oracle WebLogic: Configuring DyeInjection Monitor

January 7, 2011 Oracle, Oracle WebLogic Server 4 Comments

Now Configuring Delegating Monitors to Use Dye Filtering:

Configure a dye mask and enable dye filtering for the HttpSessionDebug diagnostic monitor. In the Administration Console:

1. Select the application from the Deployments section, in our case the the FMW  Welcome page application

2. Select Configuration–> Instrumentation, and click on the HttpSessionDebug monitor at the bottom of the page

3. Enable Dye filtering and select some Dye masks

Oracle WebLogic: Configuring DyeInjection Monitor dye4

4. Redeploy the application

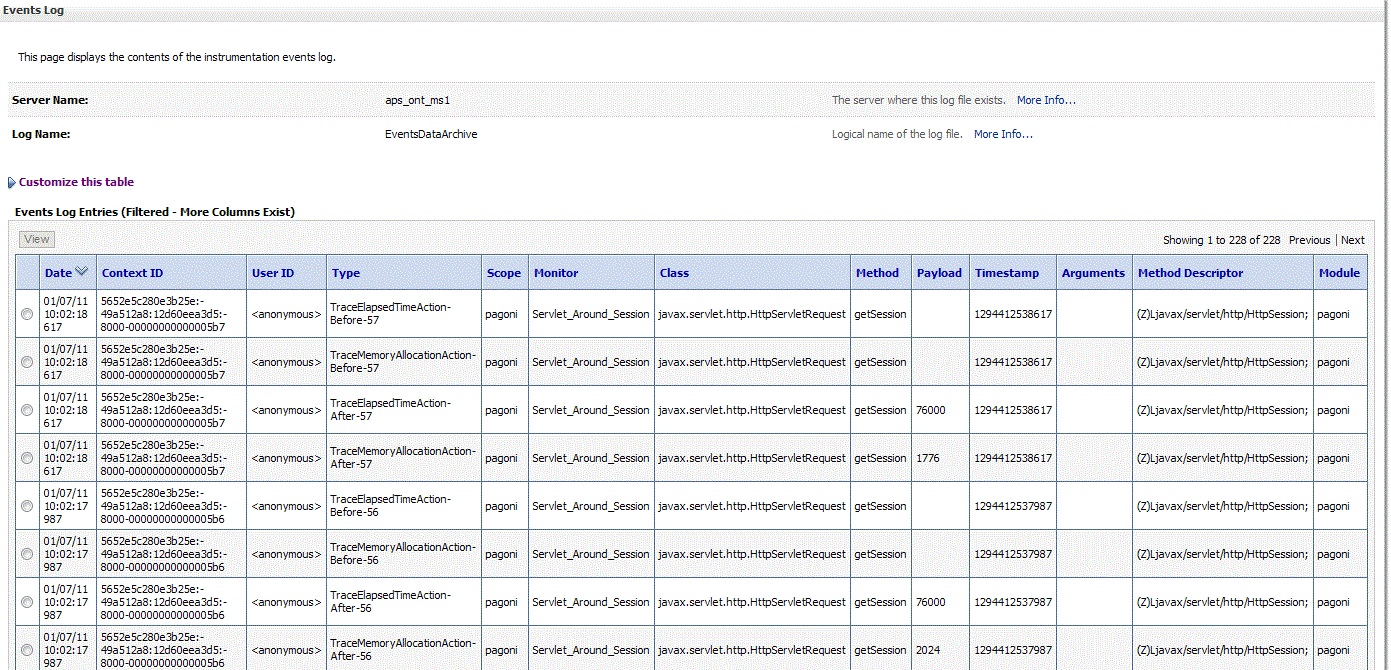

In the EventArchivesData events should appear like:

Oracle WebLogic: Configuring DyeInjection Monitor event archive
