I wanted to set up a demo environment with Apache Kafka (an open-source distributed event streaming platform) and an Oracle Database, all within containers. For my purpose I opted for Oracle Database XE.
[https://kafka.apache.org/]
As I did before, on my Windows laptop, I wanted to use a demo environment within an Oracle VirtualBox appliance, with the help of Vagrant.
I am going to use Linux, and at the time I wrote this article, the general availability of Oracle Database 21c Express Edition (XE) on Linux was announced!
[https://blogs.oracle.com/database/post/oracle-database-21c-xe-generally-available]
In a series of articles, I will take you with me on my path to set everything up.
In this article I will share with you the steps I took, to set up a demo environment with an Oracle Database XE. The focus in this article will be on getting Oracle Database 21c XE working and using IntelliJ IDEA Community Edition and the Database Navigator to connect to it.
Remember, I ended my previous article with an error I got:
So, this accounts for:
Incorrect ownership/permissions detected for the file /opt/oracle/product/21c/dbhomeXE/bin/oradism
Again, as mentioned above, root(0) was expected, but oracle(54321) was found.
So, what to do now?
Summarization of my findings as described in my previous article
First, let’s have a look at the error again:
[FATAL] [DBT-10011] Incorrect ownership/permissions detected for the file (/opt/oracle/product/21c/dbhomeXE/bin/oradism). CAUSE: Following nodes does not have required file ownership/permissions: Node :9a4154bb1e13 PRVG-11960 : Set user ID bit is not set for file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" on node "9a4154bb1e13". PRVG-2031 : Owner of file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" did not match the expected value on node "9a4154bb1e13". [Expected = "root(0)" ; Found = "oracle(54321)"]
There is a problem with the file:
/opt/oracle/product/21c/dbhomeXE/bin/oradism
with regard to file ownership/permissions.
Apparently, root(0) was expected, but oracle(54321) was found.
Next, I summarize the findings I described in my previous article:
- The RUN part from file Dockerfile.xe , contains this line:
chown -R oracle:oinstall /opt/oracle /home/oracle && \
So, what we see here is that via the command above, the directories /opt/oracle and /home/oracle are owned by oracle and belong to group oinstall.
- The RUN part from file Dockerfile.xe , contains this line:
chmod ug+x /opt/oracle/*.sh
So, what we see here is that via the command above, for every shell script (*.sh) in the directory /opt/oracle the user who owns it (u), and other users in the file’s group (g) can execute (x) that script.
[Oracle Database 21c XE, setting up a demo environment using Vagrant and Oracle VirtualBox (part 2)]
Getting a list of files and directories from the running docker container
I wanted a list of files and directories from the running docker container for the Oracle Database 12c XE version. But this time, I could not get them by opening a shell into the running docker container, as I did with the Oracle Database 18.4.0 XE version (as described in my previous article), because obviously I got an error when I tried to create the container.
So, I had another plan.
I looked the instructions in the file Dockerfile.xe (only showing the last part):
… CMD exec $ORACLE_BASE/$RUN_FILE
For my own convenience, I repeat here the CMD part from file Dockerfile.xe , with the actual values:
CMD exec /opt/oracle/runOracle.sh
Remark:
When used in the shell or exec formats, the CMD instruction sets the command to be executed when running the image.
[https://docs.docker.com/engine/reference/builder/#cmd ]
I also had a look at the content of file runOracle.sh. In line with other commands in that file, I added the command to get a list of files and directories (for /opt/oracle/product/21c/dbhomeXE/bin):
[in bold, I highlighted the changes]
… ############# MAIN ################ # Set SIGTERM handler trap _term SIGTERM echo "AMIS begin list of files and directories" su -p oracle -c "ls -latr /opt/oracle/product/21c/dbhomeXE/bin" echo "AMIS end list of files and directories" # Check whether database already exists if [ -d $ORACLE_BASE/oradata/$ORACLE_SID ]; then symLinkFiles; # Make sure audit file destination exists if [ ! -d $ORACLE_BASE/admin/$ORACLE_SID/adump ]; then su -p oracle -c "mkdir -p $ORACLE_BASE/admin/$ORACLE_SID/adump" fi; else # If the oradata folder is missing/empty, but db was previously set up, # allow a new db to be set up in its place undoSymLinkFiles; fi; /etc/init.d/oracle-xe-21c start | grep -qc "Oracle Database is not configured" if [ "$?" == "0" ]; then # Create database createDB; # Execute custom provided setup scripts runUserScripts $ORACLE_BASE/scripts/setup fi; # Check whether database is up and running $ORACLE_BASE/$CHECK_DB_FILE if [ $? -eq 0 ]; then echo "#########################" echo "DATABASE IS READY TO USE!" echo "#########################" # Execute custom provided startup scripts runUserScripts $ORACLE_BASE/scripts/startup else echo "#####################################" echo "########### E R R O R ###############" echo "DATABASE SETUP WAS NOT SUCCESSFUL!" echo "Please check output for further info!" echo "########### E R R O R ###############" echo "#####################################" fi; echo "The following output is now a tail of the alert.log:" tail -f $ORACLE_BASE/diag/rdbms/*/*/trace/alert*.log & childPID=$! wait $childPID
Stop and start the running machine
I continue where I left off in the previous article, where I created an Oracle VirtualBox appliance with
Oracle Database 21c XE, with the help of Vagrant.
[Oracle Database 21c XE, setting up a demo environment using Vagrant and Oracle VirtualBox (part 2)]
I wanted to start more or less from scratch, and with Vagrant that’s no problem.
From the subdirectory named env on my Windows laptop, I opened a Windows Command Prompt (cmd) and typed:
vagrant destroy
With the following output:
ubuntu_docker: Are you sure you want to destroy the 'ubuntu_docker' VM? [y/N] y ==> ubuntu_docker: Destroying VM and associated drives...
Next, I typed:
vagrant up
With the following output (only showing certain parts):
Bringing machine 'ubuntu_docker' up with 'virtualbox' provider... ==> ubuntu_docker: Importing base box 'ubuntu/focal64'... ==> ubuntu_docker: Matching MAC address for NAT networking... ==> ubuntu_docker: Checking if box 'ubuntu/focal64' version '20211026.0.0' is up to date... ==> ubuntu_docker: Setting the name of the VM: Ubuntu Docker … ==> ubuntu_docker: Mounting shared folders... ubuntu_docker: /vagrant => C:/My/AMIS/env … ubuntu_docker: **** Begin installing Docker Engine … ubuntu_docker: Unable to find image 'hello-world:latest' locally ubuntu_docker: latest: Pulling from library/hello-world ubuntu_docker: 2db29710123e: Pulling fs layer ubuntu_docker: 2db29710123e: Verifying Checksum ubuntu_docker: 2db29710123e: Download complete ubuntu_docker: 2db29710123e: Pull complete ubuntu_docker: Digest: sha256:cc15c5b292d8525effc0f89cb299f1804f3a725c8d05e158653a563f15e4f685 ubuntu_docker: Status: Downloaded newer image for hello-world:latest ubuntu_docker: ubuntu_docker: Hello from Docker! ubuntu_docker: This message shows that your installation appears to be working correctly. ubuntu_docker: ubuntu_docker: To generate this message, Docker took the following steps: ubuntu_docker: 1. The Docker client contacted the Docker daemon. ubuntu_docker: 2. The Docker daemon pulled the "hello-world" image from the Docker Hub. ubuntu_docker: (amd64) ubuntu_docker: 3. The Docker daemon created a new container from that image which runs the ubuntu_docker: executable that produces the output you are currently reading. ubuntu_docker: 4. The Docker daemon streamed that output to the Docker client, which sent it ubuntu_docker: to your terminal. ubuntu_docker: ubuntu_docker: To try something more ambitious, you can run an Ubuntu container with: ubuntu_docker: nbsp;docker run -it ubuntu bash ubuntu_docker: ubuntu_docker: Share images, automate workflows, and more with a free Docker ID: ubuntu_docker: https://hub.docker.com/ ubuntu_docker: ubuntu_docker: For more examples and ideas, visit: ubuntu_docker: https://docs.docker.com/get-started/ ubuntu_docker: ubuntu_docker: **** End installing Docker Engine
Building Oracle Database container image for Oracle Database 12c XE
I used vagrant ssh to connect into the running VM. Next, in order to build the image for Oracle Database 21c XE, I used the following commands on the Linux Command:
cd /vagrant/oraclexedatabase/dockerfiles ./buildContainerImage.sh -v 21.0.0 -x
Remark:
There are some steps in the process that take a long time, it seems like the process is hanging, but you have to be patience. The whole process can take more than 5 minutes.
With the following output:
WARNING: No swap limit support Checking Docker version. Ignored MD5 checksum. ... Building image 'oracle/database:21.0.0-xe' ... Sending build context to Docker daemon 20.48kB Step 1/8 : FROM oraclelinux:7-slim 7-slim: Pulling from library/oraclelinux f09c1d3b7e7b: Pulling fs layer f09c1d3b7e7b: Verifying Checksum f09c1d3b7e7b: Download complete f09c1d3b7e7b: Pull complete ... Complete! Loaded plugins: ovl ... Transaction test succeeded Running transaction Installing : file-5.11-37.el7.x86_64 1/2 Installing : oracle-database-xe-21c-1.0-1.x86_64 2/2 [INFO] Executing post installation scripts... ... Successfully built 3c41ad9aac32 Successfully tagged oracle/database:21.0.0-xe Oracle Database container image for 'xe' version 21.0.0 is ready to be extended: ubuntu_docker: --> oracle/database:21.0.0-xe Build completed in 723 seconds.
So, as before building the image was successful.
But in order to see the result from my added command to get a list of files and directories, I had to run the image.
Running Oracle Database 21c XE in a container
In order to create the container, I used the following command on the Linux Command Prompt:
sudo docker run --name oracle_database_21.0.0-xe \ -p 1521:1521 -p 5500:5500 \ -e ORACLE_PWD=manager \ -e ORACLE_CHARACTERSET=AL32UTF8 \ -v /opt/oracle/oradata:/opt/oracle/oradata \ oracle/database:21.0.0-xe
With the following output:
AMIS begin list of files and directories total 810804 -rwxr-xr-x 1 oracle oinstall 153 Nov 7 1997 echodo -rwxr-xr-x 1 oracle oinstall 5226 Jan 1 2000 orald -rwxr-xr-x 1 oracle oinstall 6887 Jan 1 2000 oraenv -rw-r--r-- 1 oracle oinstall 5003 Jan 1 2000 oerr.pl -rwxr-xr-x 1 oracle oinstall 703 Jan 1 2000 oerr -rwxr-x--- 1 oracle oinstall 15737 Jan 1 2000 dbstart -rwxr-x--- 1 oracle oinstall 8142 Jan 1 2000 dbshut -rwxr-xr-x 1 oracle oinstall 2445 Jan 1 2000 dbhome -rwxr-xr-x 1 oracle oinstall 6468 Jan 1 2000 coraenv -rwxr-xr-x 1 oracle oinstall 3261 May 4 2000 symfind -rwxr-x--- 1 oracle oinstall 48 Sep 25 2000 oraxml -rwxr-x--- 1 oracle oinstall 48 Sep 25 2000 oraxsl -rwxr-x--- 1 oracle oinstall 46 Nov 7 2000 oracg -rwxr-x--- 1 oracle oinstall 45 Sep 26 2001 transx -rwxr-x--- 1 oracle oinstall 59 Nov 25 2002 orapipe -rwxr-x--- 1 oracle oinstall 44 Dec 5 2002 orajaxb -rwxr-x--- 1 oracle oinstall 6537 Sep 28 2012 emdwgrd -rwxr-xr-x 1 oracle oinstall 1000 Jul 1 2014 afdroot -rwxr-xr-x 1 oracle oinstall 1635 Dec 5 2014 linkshlib -rw------- 1 oracle oinstall 5978 Jun 21 2017 ore_srcexport.pl -rw------- 1 oracle oinstall 4331 Jun 21 2017 ore_dsiimport.pl -rw------- 1 oracle oinstall 4799 Jun 21 2017 ore_dsiexport.pl -rw------- 1 oracle oinstall 7472 Jun 21 2017 ore_destimport.pl -rw-r----- 1 oracle oinstall 999 Aug 23 2017 dbSetup.pl -rwxr-x--- 1 oracle oinstall 65179 Aug 24 2017 emdwgrd.pl -rwxr-x--- 1 oracle oinstall 768 Aug 26 2017 xsql -rwxr-x--- 1 oracle oinstall 5385 Oct 2 2017 patchgen -rwxr-xr-x 1 oracle oinstall 1001 Nov 27 2017 olfscmd -rwxr-xr-x 1 oracle oinstall 7059 Dec 7 2017 okcreate -rwxr-x--- 1 oracle oinstall 6966 Jan 30 2018 asmcmd -rwxr-xr-x 1 oracle oinstall 727 May 22 2018 acfsremote -rwxr-xr-x 1 oracle oinstall 6981 Aug 27 2018 relink -rwxr-xr-x 1 oracle oinstall 1007 Feb 23 2019 olfsroot -rwxr-xr-x 1 oracle oinstall 13483 Mar 21 2019 adapters -rwxr-xr-x 1 oracle oinstall 940 Jul 1 2019 okaroot -rwxr-xr-x 1 oracle oinstall 945 Sep 1 2019 acfsroot -rwxr-xr-x 1 oracle oinstall 5720 Dec 24 2019 rhpctl -rwx------ 1 oracle oinstall 1535 Feb 28 2020 rootPreRequired.sh -rwxr-xr-x 1 oracle oinstall 6098 Jun 18 2020 owm -rwxr-xr-x 1 oracle oinstall 78363 Jun 24 2020 asmcmdcore -rw-r--r-- 1 oracle oinstall 13381 Jun 29 2020 dbreload -rw-r--r-- 1 oracle oinstall 14737 Jun 29 2020 dbdowngrade -rwx------ 1 oracle oinstall 91848 Jul 7 2020 xmlwf -rwxr-xr-x 1 oracle oinstall 0 Jul 19 2020 tnnfg -rwxr-x--- 1 oracle oinstall 1400 Jul 19 2020 cluvfyrac.sh -rwxr-xr-x 1 oracle oinstall 1400 Jul 19 2020 cluvfy -rw-r--r-- 1 oracle oinstall 9368 Jul 20 2020 aqxmlctl.pl -rwxr-xr-x 1 oracle oinstall 4726 Sep 18 2020 orapki -rwxr-xr-x 1 oracle oinstall 4692 Sep 18 2020 mkstore -rwxr-xr-x 1 oracle oinstall 229528 Nov 27 2020 zip -rwxr-x--- 1 oracle oinstall 3241 Feb 2 2021 commonSetup.sh -rw-r--r-- 1 oracle oinstall 52835 Feb 20 2021 CommonSetup.pm -rwxr----- 1 oracle oinstall 13106 Mar 16 2021 mgmtprepatchbootstrap.pl -rw-r--r-- 1 oracle oinstall 56500128 Jun 23 09:53 omsfscmds -rw-r--r-- 1 oracle oinstall 56469952 Jun 23 09:53 oms_daemon -rwxr-xr-x 1 oracle oinstall 90848352 Jul 1 18:30 afdboot -rwxr-xr-x 1 oracle oinstall 294336 Jul 1 18:31 afdtool.bin -rwxr-xr-x 1 oracle oinstall 39008 Jul 1 18:37 olfsctl -rw------- 1 oracle oinstall 86536 Jul 5 16:14 okinit0 -rw------- 1 oracle oinstall 85304 Jul 5 16:14 okdstry0 -rw------- 1 oracle oinstall 96448 Jul 5 16:14 oklist0 -rwxr-x--- 1 oracle oinstall 144088 Jul 6 05:51 xml -rwxr-x--- 1 oracle oinstall 57136 Jul 6 05:51 xsl -rwxr-x--- 1 oracle oinstall 192560 Jul 6 05:51 xmlcg -rwxr-x--- 1 oracle oinstall 34616 Jul 6 05:51 schema -rwxr-x--- 1 oracle oinstall 40784 Jul 6 05:52 xvm -rwxr-x--- 1 oracle oinstall 29584 Jul 6 05:52 xmlpatch -rwxr-x--- 1 oracle oinstall 29608 Jul 6 05:52 xmldiff -rwxr-xr-x 1 oracle oinstall 7316848 Jul 6 09:10 lxinst -rwxr-xr-x 1 oracle oinstall 2241480 Jul 6 09:10 lxegen -rwxr-xr-x 1 oracle oinstall 1771792 Jul 6 09:10 lxchknlb -rwxr-xr-x 1 oracle oinstall 1833480 Jul 6 09:10 lmsgen -rwxr-xr-x 1 oracle oinstall 3118944 Jul 6 09:10 lcsscan -rwxr-xr-x 1 oracle oinstall 73480 Jul 8 09:40 lsnodes -rwxr-xr-x 1 oracle oinstall 41216 Aug 17 21:23 rtsora -rwxr-x--x 1 oracle oinstall 31600 Aug 17 22:44 osh -rwxr-x--x 1 oracle oinstall 26904 Aug 17 22:44 oraversion -rwxr-x--- 1 oracle oinstall 59080 Aug 17 22:44 oraping -rwxr-x--- 1 oracle oinstall 203400 Aug 17 22:44 oradnfs -rwxr-x--- 1 oracle oinstall 1867560 Aug 17 22:44 oradism -rwxr-x--- 1 oracle oinstall 1858568 Aug 17 22:44 orabasehome -rwxr-x--- 1 oracle oinstall 1858576 Aug 17 22:44 orabaseconfig -rwxr-xr-x 1 oracle oinstall 36208 Aug 17 22:44 orabase -rw-r--r-- 1 oracle oinstall 32056 Aug 17 22:44 ora_server_kill -rw-r--r-- 1 oracle oinstall 208520 Aug 17 22:44 opwdintg.exe -rwxr-xr-x 1 oracle oinstall 252792 Aug 17 22:44 okbcfg -rwxr-x--- 1 oracle oinstall 36927 Aug 17 22:44 mtactl -rwxr-x--- 1 oracle oinstall 1738264 Aug 17 22:44 fmputlhp -rwxr-x--- 1 oracle oinstall 2001224 Aug 17 22:44 fmputl -rwxr-xr-x 1 oracle oinstall 2491696 Aug 17 22:44 diskmon -rwxr-x--- 1 oracle oinstall 3136 Aug 17 22:44 dbupgrade -rwxr-xr-x 1 oracle oinstall 74344 Aug 17 22:44 dbnest -rw-r----- 1 oracle oinstall 5297 Aug 17 22:44 dbgeu_run_action.pl -rwxr-x--x 1 oracle oinstall 1292816 Aug 17 22:44 dbfs_client -rw-r--r-- 1 oracle oinstall 170557 Aug 17 22:44 bdschecksw -rwxr-xr-x 1 oracle oinstall 3731 Aug 18 01:04 afdtool -rwxr-xr-x 1 oracle oinstall 3078 Aug 18 01:04 afddriverstate -rwxr-xr-x 1 oracle oinstall 4364 Aug 18 05:57 umu -rwxr-xr-x 1 oracle oinstall 1352 Aug 18 05:57 statusnc -rwxr-xr-x 1 oracle oinstall 943 Aug 18 05:57 ott -rwxr-xr-x 1 oracle oinstall 1743 Aug 18 05:57 olsoidsync -rwxr-xr-x 1 oracle oinstall 1441 Aug 18 05:57 olsadmintool -rwxr-xr-x 1 oracle oinstall 1315 Aug 18 05:57 ojvmtc -rwxr-xr-x 1 oracle oinstall 1433 Aug 18 05:57 ojvmjava -rwxr-xr-x 1 oracle oinstall 1351 Aug 18 05:57 ncomp -rwxr-xr-x 1 oracle oinstall 2452 Aug 18 05:57 loadjava -rwxr-xr-x 1 oracle oinstall 2518 Aug 18 05:57 eusm -rwxr-xr-x 1 oracle oinstall 1461 Aug 18 05:57 dropjava -rwxr-xr-x 1 oracle oinstall 1515 Aug 18 05:57 deploync -rw-r--r-- 1 oracle oinstall 909 Aug 18 05:57 ORE -rwxr-xr-x 1 oracle oinstall 3007 Aug 18 05:57 trcasst -rwxr-x--- 1 oracle oinstall 13413 Aug 18 05:57 srvctl -rwxr-x--- 1 oracle oinstall 4827 Aug 18 05:57 roohctl -rwxr-x--- 1 oracle oinstall 7549 Aug 18 05:57 rconfig -rw-r----- 1 oracle oinstall 4451 Aug 18 05:57 platform_common -rwxr-xr-x 1 oracle oinstall 3132 Aug 18 05:57 oidprovtool -rwxr-x--- 1 oracle oinstall 7732 Aug 18 05:57 netmgr -rwxr-xr-x 1 oracle oinstall 2898 Aug 18 05:57 ldifmigrator -rwxr-xr-x 1 oracle oinstall 4749 Aug 18 05:57 srvconfig -rwxr-x--- 1 oracle oinstall 2847 Aug 18 05:57 schemasync -rwxr-x--- 1 oracle oinstall 1781 Aug 18 05:57 schagent -rwxr-xr-x 1 oracle oinstall 2173 Aug 18 05:57 oidca -rwxr-x--- 1 oracle oinstall 1304 Aug 18 05:57 odisrvreg -rwxr-x--- 1 oracle oinstall 107 Aug 18 05:57 netca_deinst.sh -rwxr-x--- 1 oracle oinstall 6734 Aug 18 05:57 netca -rwxr-xr-x 1 oracle oinstall 484 Aug 18 05:57 kfod -rwxr-xr-x 1 oracle oinstall 7277 Aug 18 05:57 diagsetup -rwxr-x--- 1 oracle oinstall 12187 Aug 18 05:57 dbua -rwxr-x--- 1 oracle oinstall 2087 Aug 18 05:57 aqxmlctl -rwxr-xr-x 1 oracle oinstall 2147 Aug 18 05:57 trcsess -rwxr-x--- 1 oracle oinstall 2411 Aug 18 05:57 oradnfs_run.sh -rwxr-x--- 1 oracle oinstall 472 Aug 18 05:57 extusrupgrade -rw-r----- 1 oracle oinstall 7140 Aug 18 05:57 chopt.pl -rw-r----- 1 oracle oinstall 2293 Aug 18 05:57 chopt.ini -rwxr-x--- 1 oracle oinstall 284 Aug 18 05:57 chopt -rwxr-xr-x 1 oracle oinstall 10359176 Aug 18 05:58 procob -rwxr-xr-x 1 oracle oinstall 10714656 Aug 18 05:58 proc -rwxr-x--x 1 oracle oinstall 717472 Aug 18 05:58 dg4odbc -rwxr-x--x 1 oracle oinstall 375280 Aug 18 05:58 ctxload -rwxr-x--x 1 oracle oinstall 776448 Aug 18 05:58 ctxlc -rwxr-x--x 1 oracle oinstall 869344 Aug 18 05:58 ctxkbtc -rwxr-x--x 1 oracle oinstall 9700384 Aug 18 05:58 wrap -rwxr-x--x 1 oracle oinstall 41568 Aug 18 05:58 tstshm -rwxr-x--x 1 oracle oinstall 35944 Aug 18 05:58 maxmem -rwxr-x--x 1 oracle oinstall 109152 Aug 18 05:58 dbv -rwxr-x--x 1 oracle oinstall 169232 Aug 18 05:58 orapwd -rwxr-x--x 1 oracle oinstall 35368 Aug 18 05:58 dbfsize -rwxr-x--x 1 oracle oinstall 1580448 Aug 18 05:58 mapsga -rwxr-x--x 1 oracle oinstall 1580936 Aug 18 05:58 dumpsga -rwxr-x--x 1 oracle oinstall 35328 Aug 18 05:58 cursize -rwxr-x--x 1 oracle oinstall 236040 Aug 18 05:58 agtctl -rwxr-x--x 1 oracle oinstall 151592 Aug 18 05:58 sbttest -rwxr-x--x 1 oracle oinstall 222736 Aug 18 05:58 hsots -rwxr-x--x 1 oracle oinstall 223176 Aug 18 05:58 hsdepxa -rwxr-x--x 1 oracle oinstall 344024 Aug 18 05:58 hsalloci -rwxr-x--x 1 oracle oinstall 106952 Aug 18 05:58 nid -rwxr-x--- 1 oracle oinstall 2343608 Aug 18 05:58 jssu -rwx------ 1 oracle oinstall 3117696 Aug 18 05:58 extjobo -rwxr-x--- 1 oracle oinstall 3117696 Aug 18 05:58 extjob -rwxr-x--x 1 oracle oinstall 169744 Aug 18 05:58 kfod.bin -rwxr-x--x 1 oracle oinstall 188192 Aug 18 05:58 amdu -rwxr-x--x 1 oracle oinstall 232824 Aug 18 05:58 renamedg -rwxr-x--x 1 oracle oinstall 71000 Aug 18 05:58 mkpatch -rwxr-x--x 1 oracle oinstall 156616 Aug 18 05:58 kfed -rwxr-x--x 1 oracle oinstall 4334888 Aug 18 05:58 setasmgid -rwxr-xr-x 1 oracle oinstall 36824 Aug 18 05:58 osdbagrp -rwxr-x--x 1 oracle oinstall 36032 Aug 18 05:58 skgxpinfo -rwxr-x--x 1 oracle oinstall 56952 Aug 18 05:58 osegtab -rwxr-x--x 1 oracle oinstall 8602632 Aug 18 05:58 orion -rwxr-x--x 1 oracle oinstall 66864 Aug 18 05:58 oputil -rwxr-x--x 1 oracle oinstall 46504 Aug 18 05:58 tnsping -rwxr-xr-x 1 oracle oinstall 29448 Aug 18 05:58 sqlplus -rwxr-x--x 1 oracle oinstall 30712 Aug 18 05:58 dbnestinit -rwxr-xr-x 1 oracle oinstall 1040488 Aug 18 05:58 ldapcompare -rwxr-xr-x 1 oracle oinstall 1140616 Aug 18 05:58 ldapadd -rwxr-xr-x 1 oracle oinstall 1073096 Aug 18 05:58 ldapsearch -rwxr-xr-x 1 oracle oinstall 1158808 Aug 18 05:58 ldapmodifymt -rwxr-xr-x 1 oracle oinstall 1140616 Aug 18 05:58 ldapmodify -rwxr-xr-x 1 oracle oinstall 1040392 Aug 18 05:58 ldapmoddn -rwxr-xr-x 1 oracle oinstall 1040728 Aug 18 05:58 ldapdelete -rwxr-xr-x 1 oracle oinstall 1158808 Aug 18 05:58 ldapaddmt -rwxr-xr-x 1 oracle oinstall 100784 Aug 18 05:58 oklist -rwxr-x--x 1 oracle oinstall 508032 Aug 18 05:58 imp -rwxr-x--x 1 oracle oinstall 1019512 Aug 18 05:58 exp -rwxr-xr-x 1 oracle oinstall 1118968 Aug 18 05:58 dsml2ldif -rwxr-x--x 1 oracle oinstall 137136 Aug 18 05:58 tkprof -rwxr-x--x 1 oracle oinstall 1684976 Aug 18 05:58 sqlldr -rwxr-x--x 1 oracle oinstall 154160 Aug 18 05:58 plshprof -rwxr-x--x 1 oracle oinstall 78320 Aug 18 05:58 kgmgr -rwxr-x--x 1 oracle oinstall 45232 Aug 18 05:58 loadpsp -rwxr-x--x 1 oracle oinstall 250104 Aug 18 05:58 impdp -rwxr-x--x 1 oracle oinstall 238104 Aug 18 05:58 expdp -rwxr-x--x 1 oracle oinstall 1135144 Aug 18 05:58 dgmgrl -rwxr-x--x 1 oracle oinstall 49320 Aug 18 05:58 dg4pwd -rwxr-x--x 1 oracle oinstall 836152 Aug 18 05:58 wrc -rwxr-x--x 1 oracle oinstall 240280 Aug 18 05:58 uidrvci -rwxr-x--x 1 oracle oinstall 41752 Aug 18 05:58 sysresv -rwxr-x--x 1 oracle oinstall 208656 Aug 18 05:58 extproc -rwxr-x--x 1 oracle oinstall 46496 Aug 18 05:58 adrci -rwxr-x--x 1 oracle oinstall 1174472 Aug 18 05:58 tnslsnr -rwxr-xr-x 1 oracle oinstall 90872 Aug 18 05:58 okinit -rwxr-xr-x 1 oracle oinstall 89640 Aug 18 05:58 okdstry -rwxr-x--x 1 oracle oinstall 274416 Aug 18 05:58 gwsadv -rwxr-x--x 1 oracle oinstall 39888 Aug 18 05:58 amt2amb -rwxr-x--x 1 oracle oinstall 56016 Aug 18 05:58 trcroute -rwxr-x--x 1 oracle oinstall 13867264 Aug 18 05:58 rman -rwxr-x--x 1 oracle oinstall 190896 Aug 18 05:58 lsnrctl -rwxr-xr-x 1 oracle oinstall 20143 Aug 18 05:59 onsctl -rwxr-x--- 1 oracle oinstall 4404 Aug 18 05:59 mgmtua -rwxr-x--- 1 oracle oinstall 4799 Aug 18 05:59 mgmtca -rwxr-xr-x 1 oracle oinstall 1040400 Aug 18 05:59 ldapbind -rwxr-x--- 1 oracle oinstall 5783 Aug 18 05:59 emca -rwxr-x--- 1 oracle oinstall 9519 Aug 18 05:59 dbca -rwxr-x--x 1 oracle oinstall 498742528 Aug 18 05:59 oracle lrwxrwxrwx 1 oracle oinstall 24 Dec 5 13:41 lbuilder -> ../nls/lbuilder/lbuilder drwxr-xr-x 2 oracle oinstall 4096 Dec 5 13:41 . drwxrwxr-x 61 oracle oinstall 4096 Dec 5 13:44 .. AMIS end list of files and directories ORACLE PASSWORD FOR SYS AND SYSTEM: manager Specify a password to be used for database accounts. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9]. Note that the same password will be used for SYS, SYSTEM and PDBADMIN accounts: Confirm the password: Configuring Oracle Listener. Listener configuration succeeded. Configuring Oracle Database XE. Enter SYS user password: ******* Enter SYSTEM user password: ******** Enter PDBADMIN User Password: ******* [FATAL] [DBT-10011] Incorrect ownership/permissions detected for the file (/opt/oracle/product/21c/dbhomeXE/bin/oradism). CAUSE: Following nodes does not have required file ownership/permissions: Node :52ea8abd4b07 PRVG-11960 : Set user ID bit is not set for file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" on node "52ea8abd4b07". PRVG-2031 : Owner of file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" did not match the expected value on node "52ea8abd4b07". [Expected = "root(0)" ; Found = "oracle(54321)"] ACTION: Run the Oracle Home root script as the "root" user to fix the permissions. Database configuration failed. Check logs under '/opt/oracle/cfgtoollogs/dbca'.mkdir: cannot create directory '/opt/oracle/oradata/dbconfig': Permission denied mv: cannot stat '/opt/oracle/product/21c/dbhomeXE/dbs/spfileXE.ora': No such file or directory mv: cannot stat '/opt/oracle/product/21c/dbhomeXE/dbs/orapwXE': No such file or directory mv: cannot move '/opt/oracle/product/21c/dbhomeXE/network/admin/listener.ora' to '/opt/oracle/oradata/dbconfig/XE/': No such file or directory mv: cannot move '/opt/oracle/product/21c/dbhomeXE/network/admin/tnsnames.ora' to '/opt/oracle/oradata/dbconfig/XE/': No such file or directory cp: cannot create regular file '/opt/oracle/oradata/dbconfig/XE/': No such file or directory cp: cannot stat '/opt/oracle/oradata/dbconfig/XE/oratab': No such file or directory ORACLE_HOME = [/home/oracle] ? ORACLE_BASE environment variable is not being set since this information is not available for the current user ID . You can set ORACLE_BASE manually if it is required. Resetting ORACLE_BASE to its previous value or ORACLE_HOME The Oracle base remains unchanged with value /opt/oracle ##################################### ########### E R R O R ############### DATABASE SETUP WAS NOT SUCCESSFUL! Please check output for further info! ########### E R R O R ############### ##################################### The following output is now a tail of the alert.log: tail: cannot open '/opt/oracle/diag/rdbms/*/*/trace/alert*.log' for reading: No such file or directory tail: no files remaining vagrant@ubuntu-focal:/vagrant/oraclexedatabase/dockerfiles$
If we focus on the following line from the output, this confirms what the error message was telling us, and it’s also similar to our findings with version 18.4.0 (see my previous article):
-rwxr-x--- 1 oracle oinstall 1867560 Aug 17 22:44 oradism
So, what we see here is that the file /opt/oracle/product/21c/dbhomeXE/bin/oradism is owned by oracle and belongs to group oinstall.
To fix the error problem about the owner of the file, I changed the content of file Dockerfile.xe (only showing the RUN part):
[in bold, I highlighted the changes]
… RUN chmod ug+x $INSTALL_DIR/*.sh && \ sync && \ $INSTALL_DIR/$CHECK_SPACE_FILE && \ cd $INSTALL_DIR && \ yum -y install openssl oracle-database-preinstall-21c && \ sed -i -e 's/\(oracle\s\+hard\s\+nofile\)/# \1/' /etc/security/limits.d/oracle-database-preinstall-21c.conf && \ yum -y localinstall $INSTALL_FILE_1 && \ rm -rf /var/cache/yum && \ rm -rf /var/tmp/yum-* && \ mkdir -p $ORACLE_BASE/scripts/setup && \ mkdir $ORACLE_BASE/scripts/startup && \ ln -s $ORACLE_BASE/scripts /docker-entrypoint-initdb.d && \ mkdir -p $ORACLE_BASE/oradata /home/oracle && \ chown -R oracle:oinstall $ORACLE_BASE /home/oracle && \ chown -R root:oinstall $ORACLE_HOME/bin/oradism && \ mv $INSTALL_DIR/$RUN_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$PWD_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$CHECK_DB_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$CONF_FILE /etc/sysconfig/ && \ ln -s $ORACLE_BASE/$PWD_FILE / && \ cd $HOME && \ rm -rf $INSTALL_DIR && \ chmod ug+x $ORACLE_BASE/*.sh …
Again, I wanted to start from scratch. So, I used vagrant destroy and vagrant up and created the docker image, and then used the docker run command as I did before.
With the following output:
AMIS begin list of files and directories total 810808 -rwxr-xr-x 1 oracle oinstall 153 Nov 7 1997 echodo … -rwxr-x--- 1 oracle oinstall 203400 Aug 17 22:44 oradnfs -rwxr-x--- 1 root oinstall 1867560 Aug 17 22:44 oradism -rwxr-x--- 1 oracle oinstall 1858568 Aug 17 22:44 orabasehome … AMIS end list of files and directories ORACLE PASSWORD FOR SYS AND SYSTEM: manager Specify a password to be used for database accounts. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9]. Note that the same password will be used for SYS, SYSTEM and PDBADMIN accounts: Confirm the password: Configuring Oracle Listener. Listener configuration succeeded. Configuring Oracle Database XE. Enter SYS user password: ******* Enter SYSTEM user password: ******** Enter PDBADMIN User Password: ********** [FATAL] [DBT-10011] Incorrect ownership/permissions detected for the file (/opt/oracle/product/21c/dbhomeXE/bin/oradism). CAUSE: Following nodes does not have required file ownership/permissions: Node :a0d06541a104 PRVG-11960 : Set user ID bit is not set for file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" on node "a0d06541a104". ACTION: Run the Oracle Home root script as the "root" user to fix the permissions. Database configuration failed. Check logs under '/opt/oracle/cfgtoollogs/dbca'. mkdir: cannot create directory '/opt/oracle/oradata/dbconfig': Permission denied mv: cannot stat '/opt/oracle/product/21c/dbhomeXE/dbs/spfileXE.ora': No such file or directory mv: cannot stat '/opt/oracle/product/21c/dbhomeXE/dbs/orapwXE': No such file or directory mv: cannot move '/opt/oracle/product/21c/dbhomeXE/network/admin/listener.ora' to '/opt/oracle/oradata/dbconfig/XE/': No such file or directory mv: cannot move '/opt/oracle/product/21c/dbhomeXE/network/admin/tnsnames.ora' to '/opt/oracle/oradata/dbconfig/XE/': No such file or directory cp: cannot create regular file '/opt/oracle/oradata/dbconfig/XE/': No such file or directory cp: cannot stat '/opt/oracle/oradata/dbconfig/XE/oratab': No such file or directory ORACLE_HOME = [/home/oracle] ? ORACLE_BASE environment variable is not being set since this information is not available for the current user ID . You can set ORACLE_BASE manually if it is required. Resetting ORACLE_BASE to its previous value or ORACLE_HOME The Oracle base remains unchanged with value /opt/oracle ##################################### ########### E R R O R ############### DATABASE SETUP WAS NOT SUCCESSFUL! Please check output for further info! ########### E R R O R ############### ##################################### The following output is now a tail of the alert.log: tail: cannot open '/opt/oracle/diag/rdbms/*/*/trace/alert*.log' for reading: No such file or directory tail: no files remaining vagrant@ubuntu-focal:/vagrant/oraclexedatabase/dockerfiles$
So, I still got an error, but a little bit different this time!
The difference being that I lost the PRVG-02031 error from the original error message:
[FATAL] [DBT-10011] Incorrect ownership/permissions detected for the file (/opt/oracle/product/21c/dbhomeXE/bin/oradism). CAUSE: Following nodes does not have required file ownership/permissions: Node :52ea8abd4b07 PRVG-11960 : Set user ID bit is not set for file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" on node "52ea8abd4b07".PRVG-2031 : Owner of file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" did not match the expected value on node "52ea8abd4b07". [Expected = "root(0)" ; Found = "oracle(54321)"]
PRVG-02031: Owner of file “{0}” did not match the expected value on node “{1}”. [Expected = “{2}” ; Found = “{3}”]
Cause: A check for file system attributes found that the owner of the indicated file on the indicated node was different from the required owner.
[https://docs.oracle.com/en/database/oracle/oracle-database/21/errmg/PRVG-00100.html#GUID-B55636B3-8CFB-4AC1-AB4F-8D08F862629C]
So, the error about the owner not being right is gone.
I had another look at the remaining error and found an action to be taken.
PRVG-11960: Set user ID bit is not set for file “{0}” on node “{1}”.
Cause: The set user ID bit was not set for the identified file on the indicated node.
Action: Log in as the root user and set the set user ID bit for the identified file using command ‘chmod +s file’.
[https://docs.oracle.com/en/database/oracle/oracle-database/21/errmg/PRVG-00100.html#GUID-B55636B3-8CFB-4AC1-AB4F-8D08F862629C]
To fix the error problem about the user ID bit for the file, again I changed the content of file Dockerfile.xe (only showing the RUN part):
[in bold, I highlighted the changes]
RUN chmod ug+x $INSTALL_DIR/*.sh && \ sync && \ $INSTALL_DIR/$CHECK_SPACE_FILE && \ cd $INSTALL_DIR && \ yum -y install openssl oracle-database-preinstall-21c && \ sed -i -e 's/\(oracle\s\+hard\s\+nofile\)/# \1/' /etc/security/limits.d/oracle-database-preinstall-21c.conf && \ yum -y localinstall $INSTALL_FILE_1 && \ rm -rf /var/cache/yum && \ rm -rf /var/tmp/yum-* && \ mkdir -p $ORACLE_BASE/scripts/setup && \ mkdir $ORACLE_BASE/scripts/startup && \ ln -s $ORACLE_BASE/scripts /docker-entrypoint-initdb.d && \ mkdir -p $ORACLE_BASE/oradata /home/oracle && \ chown -R oracle:oinstall $ORACLE_BASE /home/oracle && \ chown -R root:oinstall $ORACLE_HOME/bin/oradism && \ chmod u+s $ORACLE_HOME/bin/oradism && \ mv $INSTALL_DIR/$RUN_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$PWD_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$CHECK_DB_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$CONF_FILE /etc/sysconfig/ && \ ln -s $ORACLE_BASE/$PWD_FILE / && \ cd $HOME && \ rm -rf $INSTALL_DIR && \ chmod ug+x $ORACLE_BASE/*.sh
Then, I used vagrant destroy and vagrant up and created the docker image, and then used the docker run command.
With the following output:
AMIS begin list of files and directories total 810808 -rwxr-xr-x 1 oracle oinstall 153 Nov 7 1997 echodo … -rwxr-x--- 1 oracle oinstall 203400 Aug 17 22:44 oradnfs -rwsr-x--- 1 root oinstall 1867560 Aug 17 22:44 oradism -rwxr-x--- 1 oracle oinstall 1858568 Aug 17 22:44 orabasehome … AMIS end list of files and directories ORACLE PASSWORD FOR SYS AND SYSTEM: manager Specify a password to be used for database accounts. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9]. Note that the same password will be used for SYS, SYSTEM and PDBADMIN accounts: Confirm the password: Configuring Oracle Listener. Listener configuration succeeded. Configuring Oracle Database XE. Enter SYS user password: ********** Enter SYSTEM user password: ********* Enter PDBADMIN User Password: ******* Prepare for db operation Cannot create directory "/opt/oracle/oradata/XE". 7% complete 100% complete [FATAL] Prepare Operation has failed. 0% complete Look at the log file "/opt/oracle/cfgtoollogs/dbca/XE/XE.log" for further details. Database configuration failed. Check logs under '/opt/oracle/cfgtoollogs/dbca'. mkdir: cannot create directory '/opt/oracle/oradata/dbconfig': Permission denied mv: cannot stat '/opt/oracle/product/21c/dbhomeXE/dbs/spfileXE.ora': No such file or directory mv: cannot stat '/opt/oracle/product/21c/dbhomeXE/dbs/orapwXE': No such file or directory mv: cannot move '/opt/oracle/product/21c/dbhomeXE/network/admin/listener.ora' to '/opt/oracle/oradata/dbconfig/XE/': No such file or directory mv: cannot move '/opt/oracle/product/21c/dbhomeXE/network/admin/tnsnames.ora' to '/opt/oracle/oradata/dbconfig/XE/': No such file or directory cp: cannot create regular file '/opt/oracle/oradata/dbconfig/XE/': No such file or directory cp: cannot stat '/opt/oracle/oradata/dbconfig/XE/oratab': No such file or directory ORACLE_HOME = [/home/oracle] ? ORACLE_BASE environment variable is not being set since this information is not available for the current user ID . You can set ORACLE_BASE manually if it is required. Resetting ORACLE_BASE to its previous value or ORACLE_HOME The Oracle base remains unchanged with value /opt/oracle ##################################### ########### E R R O R ############### DATABASE SETUP WAS NOT SUCCESSFUL! Please check output for further info! ########### E R R O R ############### ##################################### The following output is now a tail of the alert.log: tail: cannot open '/opt/oracle/diag/rdbms/*/*/trace/alert*.log' for reading: No such file or directory tail: no files remaining vagrant@ubuntu-focal:/vagrant/oraclexedatabase/dockerfiles$
So, this time, the error message I got, was the same one I got with version 18.4.0.
I fixed it in the same way I described in my pervious article, by changing the permissions of directory /opt/oracle/oradata and recreating the container.
[Oracle Database 21c XE, setting up a demo environment using Vagrant and Oracle VirtualBox (part 1)]
This time, with the following output:
ORACLE PASSWORD FOR SYS AND SYSTEM: manager Specify a password to be used for database accounts. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9]. Note that the same password will be used for SYS, SYSTEM and PDBADMIN accounts: Confirm the password: Configuring Oracle Listener. Listener configuration succeeded. Configuring Oracle Database XE. Enter SYS user password: ****** Enter SYSTEM user password: ******** Enter PDBADMIN User Password: ****** Prepare for db operation 7% complete Copying database files 29% complete Creating and starting Oracle instance 30% complete 33% complete 37% complete 40% complete 43% complete Completing Database Creation 47% complete 50% complete Creating Pluggable Databases 54% complete 71% complete Executing Post Configuration Actions 93% complete Running Custom Scripts 100% complete Database creation complete. For details check the logfiles at: /opt/oracle/cfgtoollogs/dbca/XE. Database Information: Global Database Name:XE System Identifier(SID):XE Look at the log file "/opt/oracle/cfgtoollogs/dbca/XE/XE.log" for further details. Connect to Oracle Database using one of the connect strings: Pluggable database: 2274c30e49f2/XEPDB1 Multitenant container database: 2274c30e49f2 Use https://localhost:5500/em to access Oracle Enterprise Manager for Oracle Database XE mv: cannot stat '/opt/oracle/product/21c/dbhomeXE/dbs/spfileXE.ora': No such file or directory mv: cannot stat '/opt/oracle/product/21c/dbhomeXE/dbs/orapwXE': No such file or directory The Oracle base remains unchanged with value /opt/oracle ######################### DATABASE IS READY TO USE! ######################### The following output is now a tail of the alert.log: Pluggable database XEPDB1 opened read write Completed: alter pluggable database "XEPDB1" open 2021-12-06T18:11:19.942563+00:00 XEPDB1(3):CREATE SMALLFILE TABLESPACE "USERS" LOGGING DATAFILE '/opt/oracle/oradata/XE/XEPDB1/users01.dbf' SIZE 5M REUSE AUTOEXTEND ON NEXT 1280K MAXSIZE UNLIMITED EXTENT MANAGEMENT LOCAL SEGMENT SPACE MANAGEMENT AUTO XEPDB1(3):Completed: CREATE SMALLFILE TABLESPACE "USERS" LOGGING DATAFILE '/opt/oracle/oradata/XE/XEPDB1/users01.dbf' SIZE 5M REUSE AUTOEXTEND ON NEXT 1280K MAXSIZE UNLIMITED EXTENT MANAGEMENT LOCAL SEGMENT SPACE MANAGEMENT AUTO XEPDB1(3):ALTER DATABASE DEFAULT TABLESPACE "USERS" XEPDB1(3):Completed: ALTER DATABASE DEFAULT TABLESPACE "USERS" 2021-12-06T18:11:21.399606+00:00 ALTER PLUGGABLE DATABASE XEPDB1 SAVE STATE Completed: ALTER PLUGGABLE DATABASE XEPDB1 SAVE STATE ^Cvagrant@ubuntu-focal:/opt/oracle/oradata$
And after a restart of the container, I checked the list of all the docker containers (and I repeated this command until the STATUS was healthy):
docker container ls -a
With the following output:
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES 2274c30e49f2 oracle/database:21.0.0-xe "/bin/sh -c 'exec $O…" 15 minutes ago Up 5 minutes (healthy) 0.0.0.0:1521->1521/tcp, :::1521->1521/tcp, 0.0.0.0:5500->5500/tcp, :::5500->5500/tcp oracle_database_21.0.0-xe 131c7c17a07c hello-world "/hello" About an hour ago Exited (0) About an hour ago
Running SQL*Plus
Next, I wanted to check the database via SQL*Plus.
I opted for running SQL*Plus in a container.
docker exec -ti oracle_database_21.0.0-xe sqlplus system/manager@//localhost:1521/XE
With the following output:
SQL*Plus: Release 21.0.0.0.0 - Production on Mon Dec 6 18:21:09 2021 Version 21.3.0.0.0 Copyright (c) 1982, 2021, Oracle. All rights reserved. Last Successful login time: Mon Dec 06 2021 18:08:51 +00:00 Connected to: Oracle Database 21c Express Edition Release 21.0.0.0.0 - Production Version 21.3.0.0.0 SQL>
I issued the following SQL command:
SQL> select count(*) from user_tables;
With the following output:
COUNT(*) ---------- 134
Next, I used exit to close SQL*Plus.
With the following output:
Disconnected from Oracle Database 21c Express Edition Release 21.0.0.0.0 – Production
Version 21.3.0.0.0
So, the database (apparently it was version 21.3.0) was working and I could use SQL statements. Great!
With exit I closed the ssh Windows Command Prompt.
Alternative Oracle Database 21c Express Edition (XE) docker image
Of course, now I am working with a 21c docker image, that I more or less derived from an 18.4.0 docker image. Let’s hope it’s functioning as expected. If I run into a problem later on when I am working with Kafka, maybe I have to change it.
As I already did some research on the internet, it’s good to know that there is an alternative, I would like to share with you.
As I mentioned at the beginning of this series of articles, at the time I wrote the first one, the general availability of Oracle Database 21c Express Edition (XE) on Linux was announced by Gerald Venzl, who is a Developer Evangelist and Distinguished Product Manager for Oracle.
[https://blogs.oracle.com/database/post/oracle-database-21c-xe-generally-available]
He also added Oracle Database Express Edition Container / Docker images for version 21c.
[https://hub.docker.com/r/gvenzl/oracle-xe]
So, that’s an alternative to use as docker image.
Another alternative Oracle Database 21c Express Edition (XE) docker image
Sometime, when you are writing a blog article, at the time the article is about to be published, the things you used and are writing about get changed during that time. This is what happened to me.

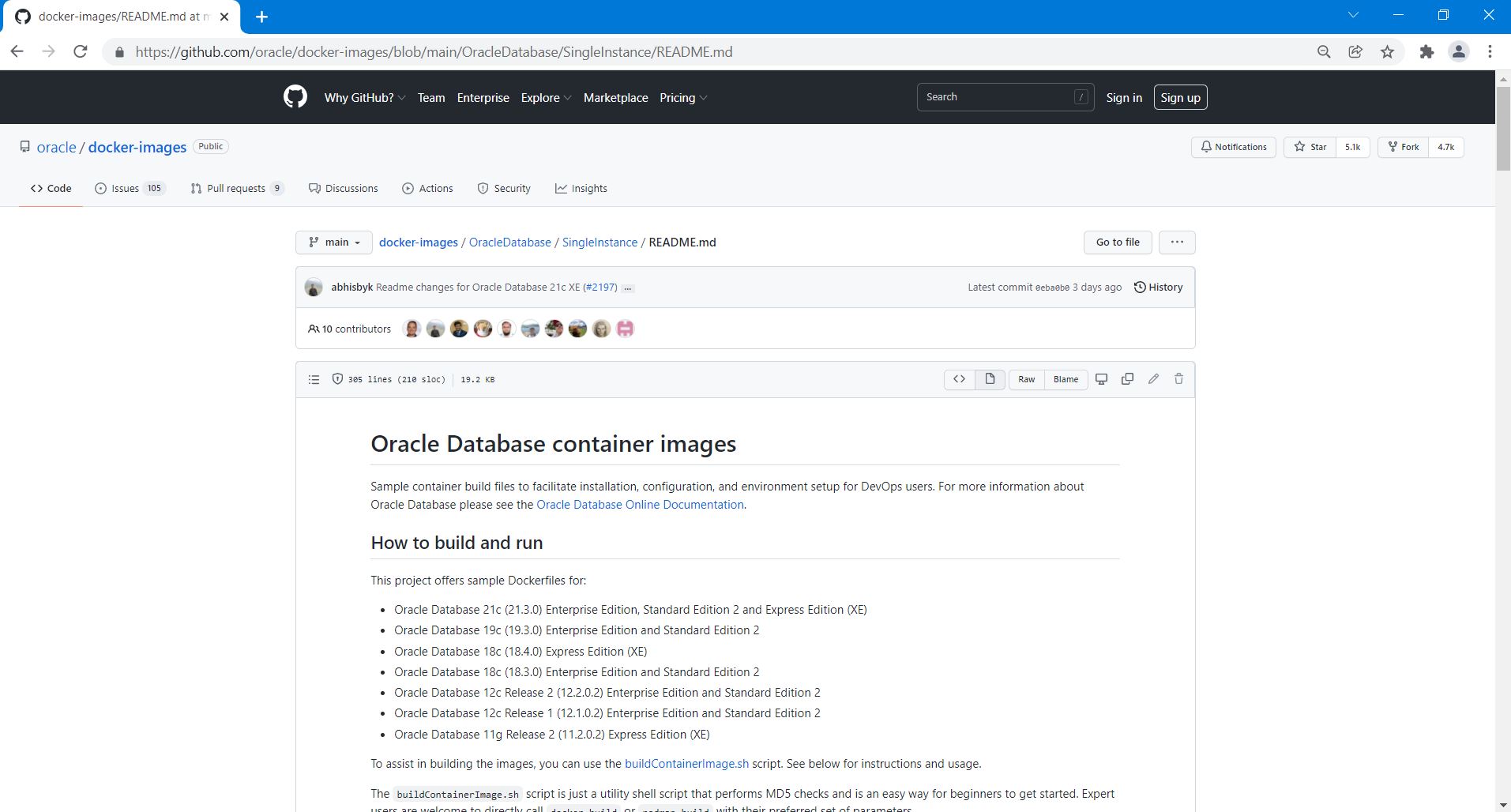

So, have a look at the README.md, I mentioned several times in this series of articles.
[https://github.com/oracle/docker-images/blob/main/OracleDatabase/SingleInstance/README.md]
The README.md changed and now there is also support for 21c XE.

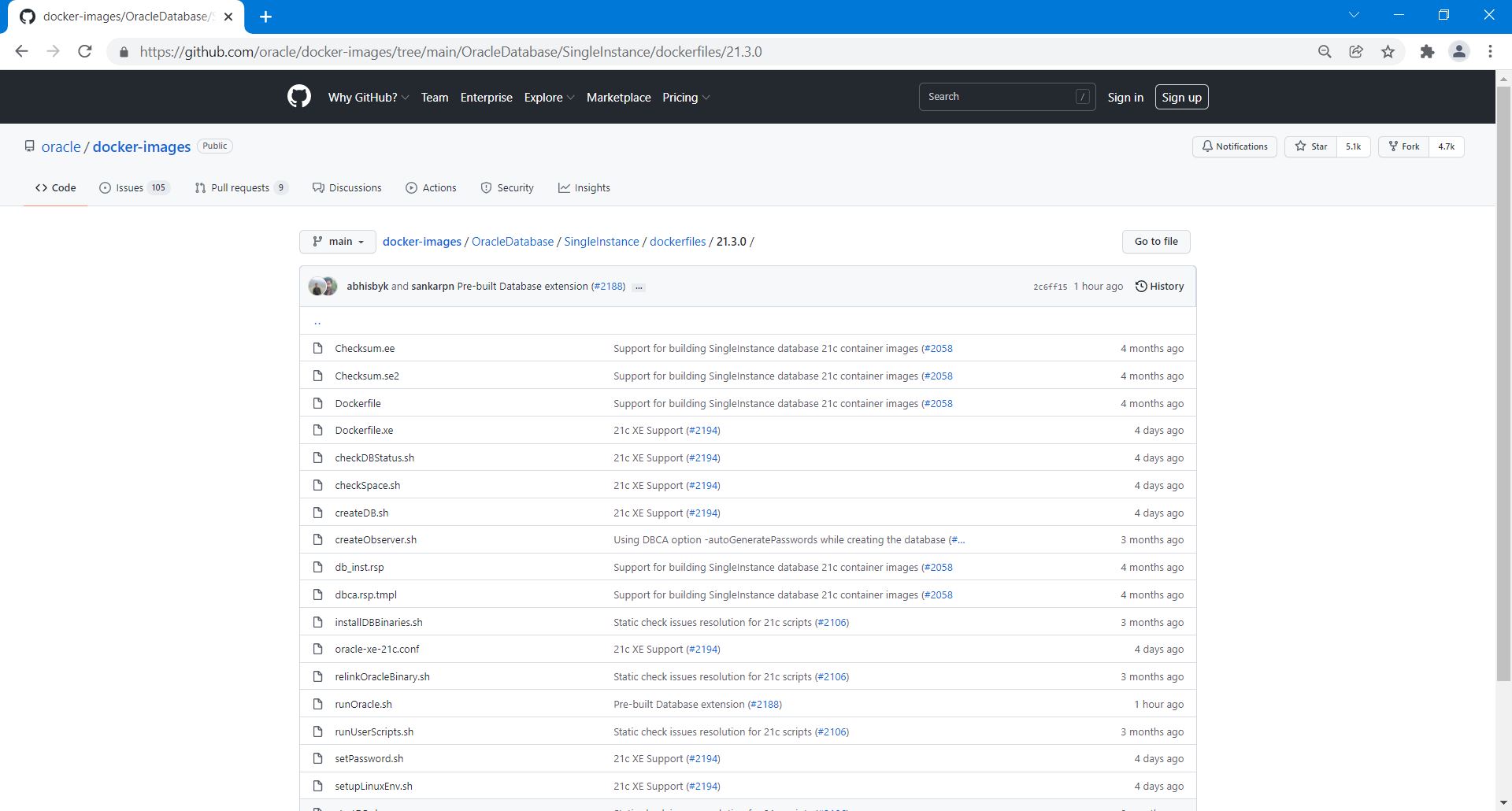

Including the docker files for Oracle Database 21c (21.3.0) Enterprise Edition, Standard Edition 2 and Express Edition (XE).
I wished these files were available when I started writing this series of articles, but in the end, it’s great news for everybody.
And of course, later on I will have a look at it. But first I have to finish and publish this article ?.
Interact with the Oracle Database 21c Express Edition (XE) from my Windows laptop
Remember to create the container, I used the following command on the Linux Command Prompt:
sudo docker run --name oracle_database_21.0.0-xe \ -p 1521:1521 -p 5500:5500 \ -e ORACLE_PWD=manager \ -e ORACLE_CHARACTERSET=AL32UTF8 \ -v /opt/oracle/oradata:/opt/oracle/oradata \ oracle/database:21.0.0-xe
Remember the port parameter, I also described in a previous article:
| -p: | The port mapping of the host port to the container port. Two ports are exposed: 1521 (Oracle Listener), 5500 (EM Express) |
[https://github.com/oracle/docker-images/blob/main/OracleDatabase/SingleInstance/README.md]
Because I wanted to use an IDE on my Windows laptop to connect to the database, I used the forwarded_port configuration option, to forward port 1521 on my host (Windows) to port 1521 on my guest (Ubuntu). I did the same for port 5500.
Vagrant forwarded ports allow you to access a port on your host machine and have all data forwarded to a port on the guest machine, over either TCP or UDP.
[https://www.vagrantup.com/docs/networking/forwarded_ports.html]
I changed the content of the Vagrantfile:
[in bold, I highlighted the changes]
Vagrant.configure("2") do |config|
config.vm.box = "ubuntu/focal64"
config.vm.define "ubuntu_docker" do |ubuntu_docker|
config.vm.network "forwarded_port",
guest: 1521,
host: 1521,
auto_correct: true
config.vm.network "forwarded_port",
guest: 5500,
host: 5500,
auto_correct: true
config.vm.provider "virtualbox" do |vb|
vb.name = "Ubuntu Docker"
vb.memory = "8192"
vb.cpus = "1"
args = []
config.vm.provision "docker shell script", type: "shell",
path: "scripts/docker.sh",
args: args
end
end
end
From the subdirectory named env on my Windows laptop, I navigated to the scripts directory were I created a file oracle-database-xe-21c.sh with the following content:
#!/bin/bash echo "**** Begin installing oracle-database-xe-21c" #Install #https://docs.oracle.com/en/database/oracle/oracle-database/21/xeinl/installing-oracle-database-xe.html cd /vagrant/oraclexedatabase/dockerfiles ./buildContainerImage.sh -v 21.0.0 -x sudo mkdir -p /opt/oracle/oradata sudo chmod -R o+w /opt/oracle/oradata docker run --name oracle_database_21.0.0-xe \ -p 1521:1521 -p 5500:5500 \ -e ORACLE_PWD=manager \ -e ORACLE_CHARACTERSET=AL32UTF8 \ -v /opt/oracle/oradata:/opt/oracle/oradata \ oracle/database:21.0.0-xe echo "**** End installing oracle-database-xe-21c"
Again, I changed the content of the Vagrantfile to use the just created script file:
[in bold, I highlighted the changes]
Vagrant.configure("2") do |config|
config.vm.box = "ubuntu/focal64"
config.vm.define "ubuntu_docker" do |ubuntu_docker|
config.vm.network "forwarded_port",
guest: 1521,
host: 1521,
auto_correct: true
config.vm.network "forwarded_port",
guest: 5500,
host: 5500,
auto_correct: true
config.vm.provider "virtualbox" do |vb|
vb.name = "Ubuntu Docker"
vb.memory = "8192"
vb.cpus = "1"
args = []
config.vm.provision "docker shell script", type: "shell",
path: "scripts/docker.sh",
args: args
args = []
config.vm.provision "oracle-database-xe-21c shell script", type: "shell",
path: "scripts/oracle-database-xe-21c.sh",
args: args
end
end
end
Next in file runOracle.sh, I remarked the lines of code, I added earlier to get a list of files and directories (for /opt/oracle/product/21c/dbhomeXE/bin), because I no longer needed that information:
… ############# MAIN ################ # Set SIGTERM handler trap _term SIGTERM #echo "AMIS begin list of files and directories" #su -p oracle -c "ls -latr /opt/oracle/product/21c/dbhomeXE/bin" #echo "AMIS end list of files and directories" …
In order to test this new set up, I used vagrant destroy and vagrant up.
and created the docker image, and then used the docker run command as I did before.
I checked the created Oracle Database 21c Express Edition (XE) docker container by using IntelliJ IDEA Community Edition and the Database Navigator on my Windows laptop.
IntelliJ IDEA Community Edition and the Database Navigator
I downloaded the latest IntelliJ IDEA Community Edition version (at the time I wrote this article) and installed it on my Windows laptop:
Version: 2021.3
Build: 213.5744.223
30 November 2021
[https://www.jetbrains.com/idea/download/#section=windows]
Then I updated the Database Navigator plugin (Database development, scripting and navigation tool).
This product adds extensive database development and maintenance capabilities to the IntelliJ IDEA development environment and related products. Along with a qualified and IDE-compliant SQL and PL/SQL editor, it provides advanced database connection management, script execution support, database objects browsing, data and code editor, support for database compiler operations, method execution and debugging, database objects factory, as well as various navigation capabilities between all its components.
See features overview on the support page.
Supported Databases:
- Oracle
- MySQL
- SQLite
- PostgreSQL
- Any JDBC compliant database (EXPERIMENTAL)
[https://plugins.jetbrains.com/plugin/1800-database-navigator]

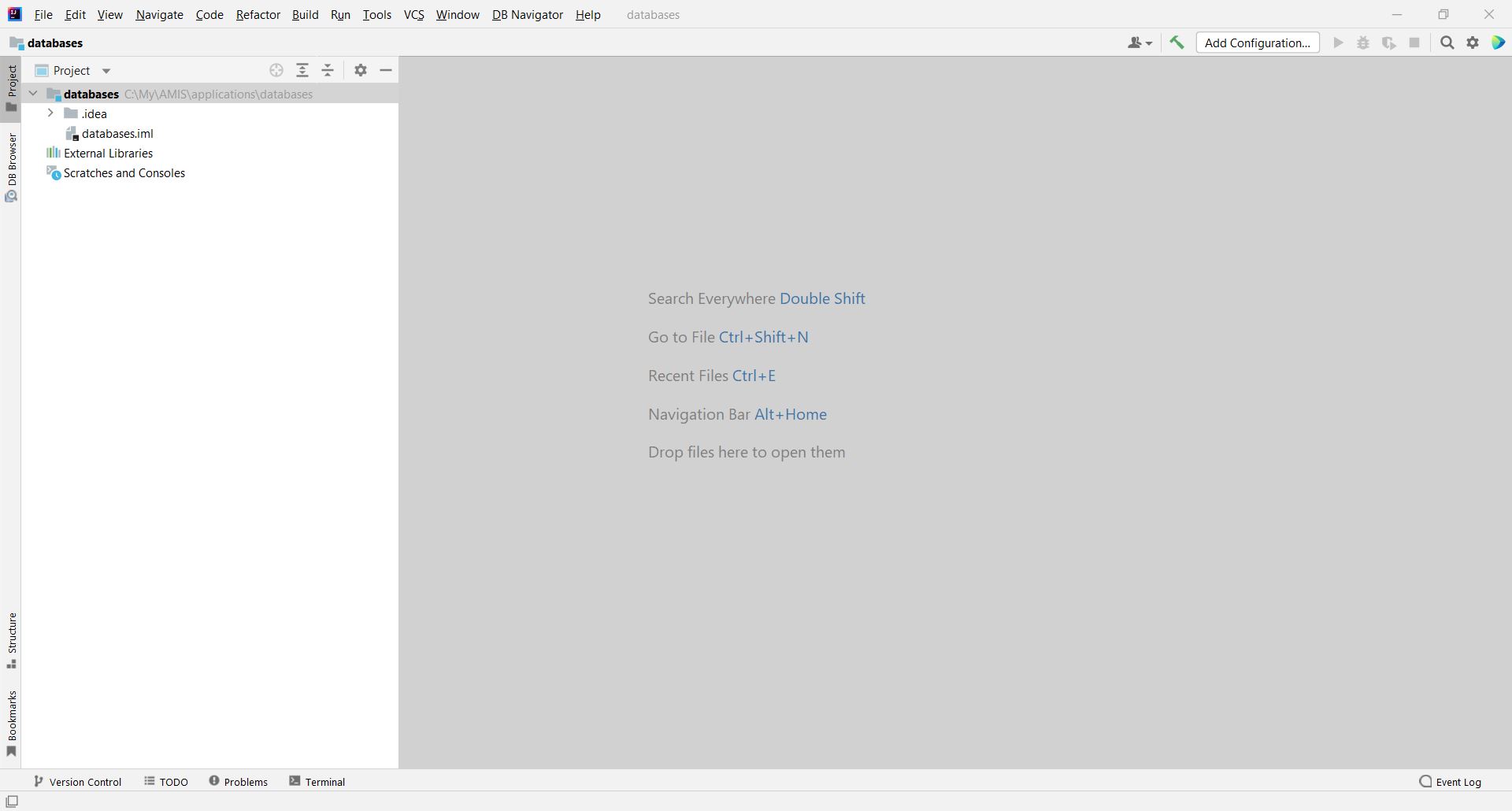

Next, In IntelliJ IDEA, I created an Empty Project called “databases”.

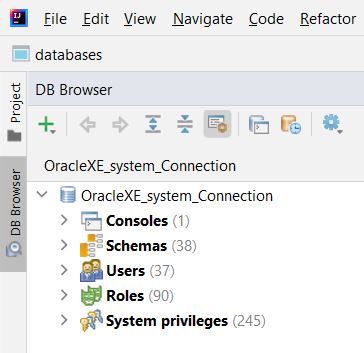

In the menu I choose DB Navigator | Database Browser. And I clicked on the New Connection icon, and next Oracle.

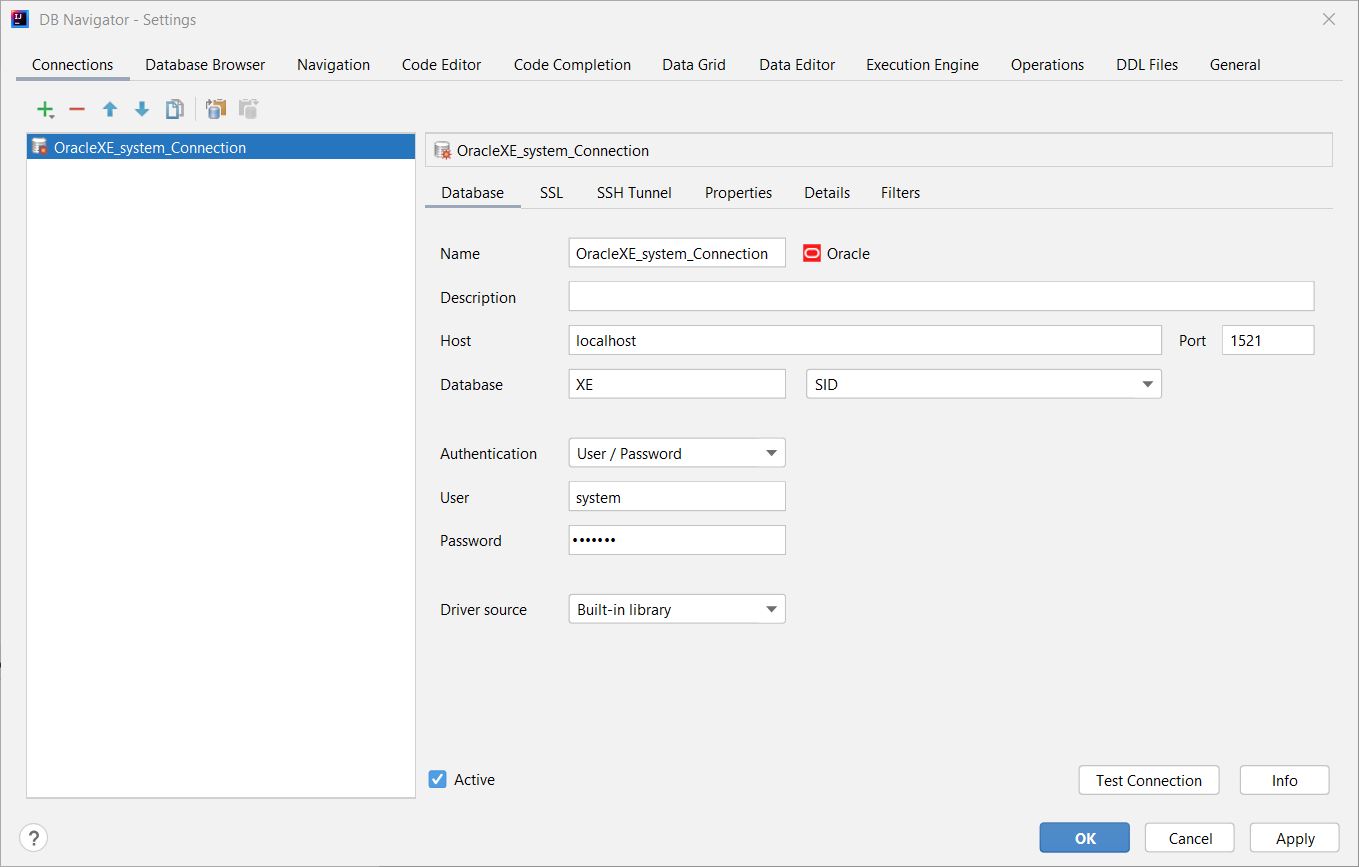

In de Settings pop-up I filled in the connection settings and named the connection “OracleXE_system_Connection”.
I clicked on the Apply button and OK button.

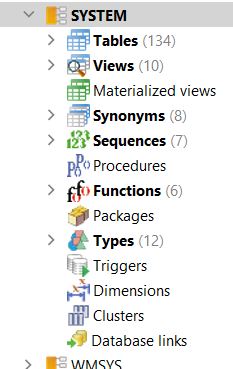

Next, I navigated to Schemas | SYSTEM.
And as you can see, the number of tables for this user is 134, the same as the counting result when I used SQL*Plus as I described before.
In a next article, I continue with taking you with me on my path to set up my demo environment with Apache Kafka (an open-source distributed event streaming platform) and Oracle Database 21c Express Edition (XE).
