In this article I will describe how you can use Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application, together with an external MySQL database, within Minikube.

Minikube

Minikube is a tool that makes it easy to run Kubernetes locally. Minikube runs a single-node Kubernetes cluster for users looking to try out Kubernetes or develop with it day-to-day.

Helm

Helm is the package manager for Kubernetes.
With Helm you can find, share, and use software built for Kubernetes.

Helm helps you manage Kubernetes applications — Helm Charts help you define, install, and upgrade even the most complex Kubernetes application.
Charts are easy to create, version, share, and publish — so start using Helm and stop the copy-and-paste.
The latest version of Helm is maintained by the CNCF – in collaboration with Microsoft, Google, Bitnami and the Helm contributor community.

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 34

With Helm a team can:

  • Manage Complexity
  •   Charts describe even the most complex apps, provide repeatable application installation, and serve as a single point of authority.

  • Easy Updates
  •   Take the pain out of updates with in-place upgrades and custom hooks.

  • Simple Sharing
  •   Charts are easy to version, share, and host on public or private servers.

  • Rollbacks
  •   Use helm rollback to roll back to an older version of a release with ease.

[https://helm.sh/]

Using Helm

The following prerequisites are required for a successful and properly secured use of Helm.

  • A Kubernetes cluster
  •   You must have Kubernetes installed or have access to a cluster.
      You should also have a local configured copy of kubectl.
      In my case I am using Minikube.

  • Deciding what security configurations to apply to your installation, if any.
  •   If you’re using Helm on a cluster that you completely control, like Minikube or a cluster on a private network in which sharing is not a concern, the default installation – which applies no security configuration – is fine, and it’s definitely the easiest. To install Helm without additional security steps, install Helm and then initialize Helm.
      Again, in my case I am using Minikube.

  • Installing and configuring Helm and Tiller, the cluster-side service.
  •   There are two parts to Helm: The Helm client (helm) and the Helm server (Tiller).

[https://helm.sh/docs/using_helm/#installing-helm]

For more information about Helm, I refer you to: https://helm.sh/docs/

Because on my Windows laptop, Minikube runs within an Oracle VirtualBox appliance, I will be using a Linux Command Prompt via ssh.

As described in a previous article, I created a subdirectory named env on my Windows laptop.
[https://technology.amis.nl/2019/03/05/using-a-restful-web-service-spring-boot-application-in-minikube-together-with-an-external-dockerized-mysql-database/]

I went to the env directory and opened a Windows Command Prompt (cmd) to access linux (within the VirtualBox Appliance) via ssh: vagrant ssh

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 35

Installing Helm

Linux Command Prompt: sudo snap install helm –classic
[https://helm.sh/docs/install/]

This command returned the following output:

helm 2.13.0 from ‘snapcrafters’ installed

Installing Tiller

Tiller, the server portion of Helm, typically runs inside of your Kubernetes cluster. But for development, it can also be run locally, and configured to talk to a remote Kubernetes cluster.

The easiest way to install Tiller into the cluster is simply to run helm init. This will validate that Helm’s local environment is set up correctly (and set it up if necessary). Then it will connect to whatever cluster kubectl connects to by default (kubectl config view). Once it connects, it will install Tiller into the kube-system namespace.

After helm init, you should be able to run kubectl get pods –namespace kube-system and see Tiller running.
[https://helm.sh/docs/install/]

To find out which cluster Tiller would install to, you can run kubectl config current-context or kubectl cluster-info.
[https://helm.sh/docs/using_helm/#quickstart]

Linux Command Prompt: kubectl config view

This command returned the following output:

apiVersion: v1
clusters:
– cluster:
    certificate-authority-data: DATA+OMITTED
    server: https://localhost:8443
  name: kubernetes
contexts:
– context:
    cluster: kubernetes
    user: kubernetes-admin
  name: kubernetes-admin@kubernetes
current-context: kubernetes-admin@kubernetes
kind: Config
preferences: {}
users:
– name: kubernetes-admin
  user:
    client-certificate-data: REDACTED
    client-key-data: REDACTED

Linux Command Prompt: kubectl config current-context

This command returned the following output:

kubernetes-admin@kubernetes

Linux Command Prompt: kubectl cluster-info

This command returned the following output:

Kubernetes master is running at https://localhost:8443
KubeDNS is running at https://localhost:8443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy


To further debug and diagnose cluster problems, use ‘kubectl cluster-info dump’.

Initialize Helm on both client and server:

helm init

This command returned the following output:

Creating /home/vagrant/.helm
Creating /home/vagrant/.helm/repository
Creating /home/vagrant/.helm/repository/cache
Creating /home/vagrant/.helm/repository/local
Creating /home/vagrant/.helm/plugins
Creating /home/vagrant/.helm/starters
Creating /home/vagrant/.helm/cache/archive
Creating /home/vagrant/.helm/repository/repositories.yaml
Adding stable repo with URL: https://kubernetes-charts.storage.googleapis.com
Adding local repo with URL: http://127.0.0.1:8879/charts
$HELM_HOME has been configured at /home/vagrant/.helm.

Tiller (the Helm server-side component) has been installed into your Kubernetes Cluster.

Please note: by default, Tiller is deployed with an insecure ‘allow unauthenticated users’ policy.
To prevent this, run `helm init` with the –tiller-tls-verify flag.
For more information on securing your installation see: https://docs.helm.sh/using_helm/#securing-your-helm-installation
Happy Helming!

Linux Command Prompt: kubectl get pods –namespace kube-system

This command returned the following output:

NAME                                    READY   STATUS    RESTARTS   AGE
coredns-576cbf47c7-c5qhm                1/1     Running   0          4h4m
coredns-576cbf47c7-p9hln                1/1     Running   0          4h4m
etcd-minikube                           1/1     Running   0          4h3m
kube-addon-manager-minikube             1/1     Running   0          4h4m
kube-apiserver-minikube                 1/1     Running   0          4h3m
kube-controller-manager-minikube        1/1     Running   0          4h3m
kube-proxy-pn962                        1/1     Running   0          4h4m
kube-scheduler-minikube                 1/1     Running   0          4h3m
kubernetes-dashboard-5bff5f8fb8-8l5nb   1/1     Running   0          4h3m
storage-provisioner                     1/1     Running   0          4h3m
tiller-deploy-558f67b794-pqw7m          1/1     Running   0          2m36s

I confirmed from the Kubernetes dashboard, that Tiller has been installed (see: kube-system namespace)

Via the Kubernetes Web UI (Dashboard):
http://127.0.0.1:8001/api/v1/namespaces/kube-system/services/http:kubernetes-dashboard:/proxy/#!/deployment?namespace=kube-system

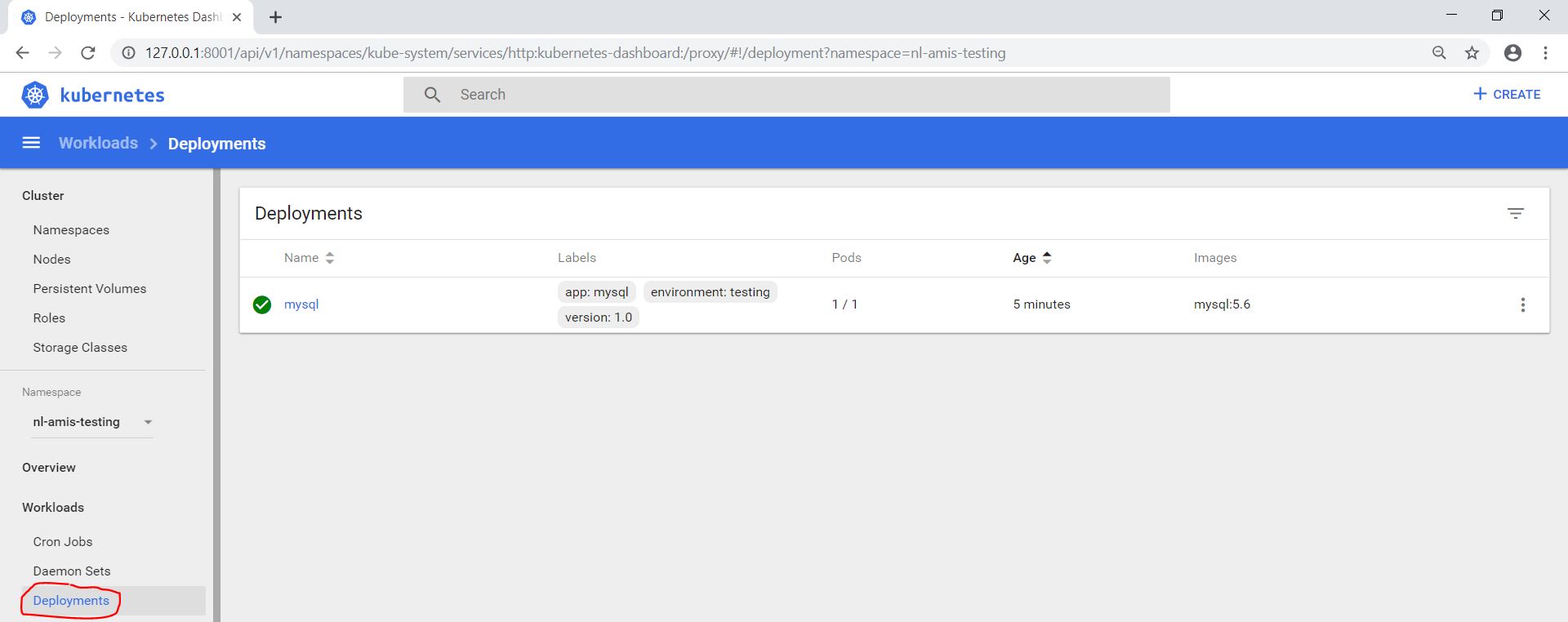

Navigate to Workloads | Deployments:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 36

Helm charts

Helm uses a packaging format called charts. A chart is a collection of files that describe a related set of Kubernetes resources. A single chart might be used to deploy something simple, like a memcached pod, or something complex, like a full web app stack with HTTP servers, databases, caches, and so on.

Charts are created as files laid out in a particular directory tree, then they can be packaged into versioned archives to be deployed.

The Chart File Structure
A chart is organized as a collection of files inside of a directory. The directory name is the name of the chart (without versioning information). Thus, a chart describing WordPress would be stored in the wordpress/ directory.

Inside of this directory, Helm will expect a structure that matches this:
wordpress/
  Chart.yaml           # A YAML file containing information about the chart
  LICENSE              # OPTIONAL: A plain text file containing the license for the chart
  README.md            # OPTIONAL: A human-readable README file
  requirements.yaml    # OPTIONAL: A YAML file listing dependencies for the chart
  values.yaml          # The default configuration values for this chart
  charts/              # A directory containing any charts upon which this chart depends.
  templates/           # A directory of templates that, when combined with values,
                       # will generate valid Kubernetes manifest files.
  templates/NOTES.txt  # OPTIONAL: A plain text file containing short usage notes

Helm reserves use of the charts/ and templates/ directories, and of the listed file names. Other files will be left as they are.

The Chart.yaml file is required for a chart. It contains, among others, the following required fields:

  • apiVersion: The chart API version, always “v1” (required)
  • name: The name of the chart (required)
  • version: A SemVer 2 version (required)

[https://helm.sh/docs/developing_charts/]

For more information about the chart format, and basic guidance for building charts with Helm, please see: https://helm.sh/docs/developing_charts/

As described in a previous article, I created a subdirectory named env on my Windows laptop.

This directory is connected to the Shared Folder named vagrant in my Oracle VirtualBox appliance.
[https://technology.amis.nl/2019/03/05/using-a-restful-web-service-spring-boot-application-in-minikube-together-with-an-external-dockerized-mysql-database/]

In the env directory I created an helmcharts subdirectory.

Linux Command Prompt: cd /vagrant

Linux Command Prompt: cd helmcharts

Create a new namespace-chart helm chart:

helm create namespace-chart

Creating namespace-chart

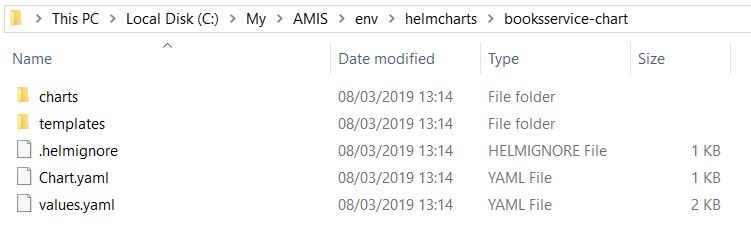

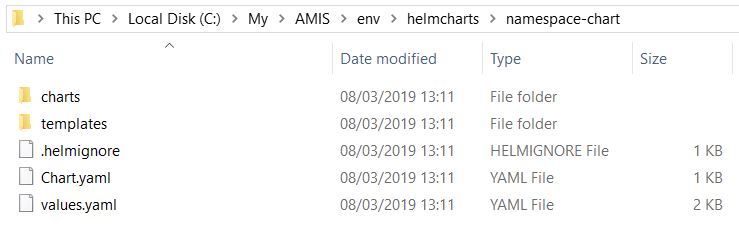

This command created the following directory structure:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 37

The file Chart.yaml has the following content:

apiVersion: v1
appVersion: "1.0"
description: A Helm chart for Kubernetes
name: namespace-chart
version: 0.1.0

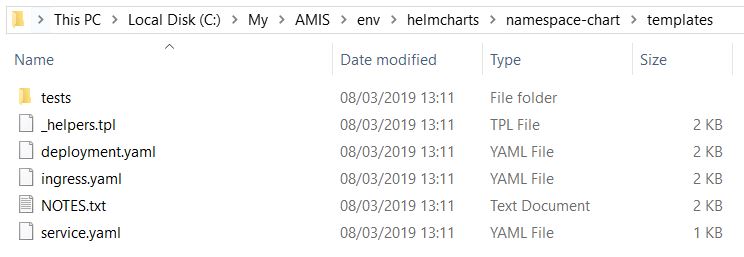

The templates subdirectory has the following directory structure:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 38

Create a new mysql-chart helm chart:

helm create mysql-chart

Creating mysql-chart

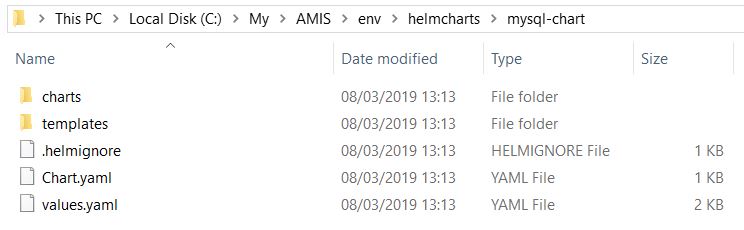

This command created the following directory structure:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 39

The file Chart.yaml has the following content:

apiVersion: v1
appVersion: "1.0"
description: A Helm chart for Kubernetes
name: mysql-chart
version: 0.1.0

The templates subdirectory has the following directory structure:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 40

Create a new booksservice-chart helm chart:

helm create booksservice-chart

Creating booksservice-chart

This command created the following directory structure:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 41

The file Chart.yaml has the following content:

apiVersion: v1
appVersion: "1.0"
description: A Helm chart for Kubernetes
name: booksservice-chart
version: 0.1.0

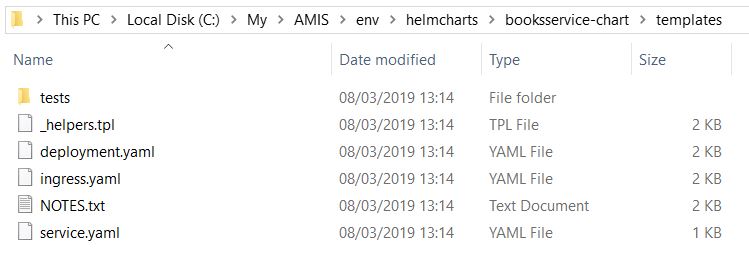

The templates subdirectory has the following directory structure:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 42

Updating the helm template folder

As described in my previous article, I created yaml files, in the yaml subdirectory.
[https://technology.amis.nl/2019/03/05/using-a-restful-web-service-spring-boot-application-in-minikube-together-with-an-external-dockerized-mysql-database/]

Copy the namespace yaml files to the helm template folder:

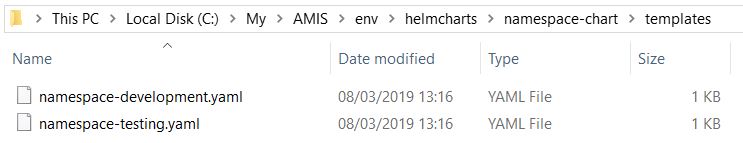

The templates subdirectory now has the following directory structure:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 43

Copy the mysql yaml files to the helm template folder:

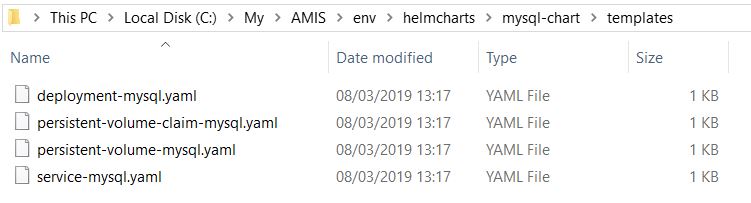

The templates subdirectory now has the following directory structure:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 44

Copy the booksservice yaml files to the helm template folder:

The templates subdirectory now has the following directory structure:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 45

In my previous article, I described the “application landscape” I want to create:

Environment Database Booksservice version
DEV H2 in-memory 1.0
2.0
TST MySQL 1.0

In the DEV environment the applications (version 1.0 and 2.0) will be using an H2 in-memory database.
In the TST environment the application (version 1.0) will be using an external MySQL database.

With the booksservice service you can add, update, delete and retrieve books from a catalog.
[https://technology.amis.nl/2019/03/05/using-a-restful-web-service-spring-boot-application-in-minikube-together-with-an-external-dockerized-mysql-database/]

Validating a chart

The helm lint command examines a chart for possible issues.

This command takes a path to a chart and runs a series of tests to verify that the chart is well-formed.
If the linter encounters things that will cause the chart to fail installation, it will emit [ERROR] messages. If it encounters issues that break with convention or recommendation, it will emit [WARNING] messages.
[https://helm.sh/docs/helm/#helm-lint]

Validate the namespace-chart helm chart:


helm lint ./namespace-chart

==> Linting ./namespace-chart

[INFO] Chart.yaml: icon is recommended

1 chart(s) linted, no failures

Validate the mysql-chart helm chart:


helm lint ./mysql-chart

==> Linting ./mysql-chart

[INFO] Chart.yaml: icon is recommended

1 chart(s) linted, no failures

Validate the booksservice-chart helm chart:


helm lint ./booksservice-chart

==> Linting ./booksservice-chart

[INFO] Chart.yaml: icon is recommended

1 chart(s) linted, no failures

Simulate installing a helm chart

The helm install command installs a chart archive.

The install argument must be a chart reference, a path to a packaged chart, a path to an unpacked chart directory or a URL.

To check the generated manifests of a release without installing the chart, the ‘–debug’ and ‘–dry-run’ flags can be combined. This will still require a round-trip to the Tiller server.

Options:
–debug enable verbose output
–dry-run simulate an install
[https://helm.sh/docs/helm/#helm-install]

Simulate installing the namespace-chart helm chart:

helm install --debug --dry-run ./namespace-chart

With the following output:

[debug] Created tunnel using local port: ‘39704’

[debug] SERVER: “127.0.0.1:39704”

[debug] Original chart version: “”
[debug] CHART PATH: /vagrant/helmcharts/namespace-chart

E0308 13:02:00.421284 13185 portforward.go:391] an error occurred forwarding 39704 -> 44134: error forwarding port 44134 to pod 1726b146172f05f1e12d1f094a19c39688ed65e1a02318d821aa3eefdb043ccc, uid : unable to do port forwarding: socat not found.

Apparently socat was needed, and I hadn’t installed it yet.

Socat is a command line based utility that establishes two bidirectional byte streams and transfers data between them. Because the streams can be constructed from a large set of different types of data sinks and sources (see address types), and because lots of address options may be applied to the streams, socat can be used for many different purposes.
[http://www.dest-unreach.org/socat/doc/socat.html]

Linux Command Prompt: sudo apt-get install socat

This command created the following output:

Reading package lists… Done
Building dependency tree
Reading state information… Done
The following NEW packages will be installed:
  socat
0 upgraded, 1 newly installed, 0 to remove and 24 not upgraded.
Need to get 321 kB of archives.
After this operation, 941 kB of additional disk space will be used.
Get:1 http://archive.ubuntu.com/ubuntu xenial/universe amd64 socat amd64 1.7.3.1-1 [321 kB]
Fetched 321 kB in 0s (381 kB/s)
Selecting previously unselected package socat.
(Reading database … 54493 files and directories currently installed.)
Preparing to unpack …/socat_1.7.3.1-1_amd64.deb …
Unpacking socat (1.7.3.1-1) …
Processing triggers for man-db (2.7.5-1) …
Setting up socat (1.7.3.1-1) …

So, let’s try again.

Simulate installing the namespace-chart helm chart:

helm install --debug --dry-run ./namespace-chart

With the following output:

[debug] Created tunnel using local port: ‘34737’

[debug] SERVER: “127.0.0.1:34737”

[debug] Original chart version: “”
[debug] CHART PATH: /vagrant/helmcharts/namespace-chart

NAME:   newbie-dingo
REVISION: 1
RELEASED: Fri Mar  8 13:04:10 2019
CHART: namespace-chart-0.1.0
USER-SUPPLIED VALUES:
{}

COMPUTED VALUES:
affinity: {}
fullnameOverride: “”
image:
  pullPolicy: IfNotPresent
  repository: nginx
  tag: stable
ingress:
  annotations: {}
  enabled: false
  hosts:
  – host: chart-example.local
    paths: []
  tls: []
nameOverride: “”
nodeSelector: {}
replicaCount: 1
resources: {}
service:
  port: 80
  type: ClusterIP
tolerations: []

HOOKS:
MANIFEST:


# Source: namespace-chart/templates/namespace-development.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: “nl-amis-development”
  labels:
    name: “nl-amis-development”

# Source: namespace-chart/templates/namespace-testing.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: “nl-amis-testing”
  labels:
    name: “nl-amis-testing”

Simulate installing the mysql-chart helm chart:

helm install --debug --dry-run ./mysql-chart

With the following output:

[debug] Created tunnel using local port: ‘40385’

[debug] SERVER: “127.0.0.1:40385”

[debug] Original chart version: “”
[debug] CHART PATH: /vagrant/helmcharts/mysql-chart

NAME:   lunging-cheetah
REVISION: 1
RELEASED: Fri Mar  8 13:27:49 2019
CHART: mysql-chart-0.1.0
USER-SUPPLIED VALUES:
{}

COMPUTED VALUES:
affinity: {}
fullnameOverride: “”
image:
  pullPolicy: IfNotPresent
  repository: nginx
  tag: stable
ingress:
  annotations: {}
  enabled: false
  hosts:
  – host: chart-example.local
    paths: []
  tls: []
nameOverride: “”
nodeSelector: {}
replicaCount: 1
resources: {}
service:
  port: 80
  type: ClusterIP
tolerations: []

HOOKS:
MANIFEST:


# Source: mysql-chart/templates/persistent-volume-mysql.yaml
kind: PersistentVolume
apiVersion: v1
metadata:
  name: mysql-persistent-volume
  namespace: nl-amis-testing
  labels:
    type: local
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    – ReadWriteOnce
  hostPath:
    path: “/mnt/data”

# Source: mysql-chart/templates/persistent-volume-claim-mysql.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: mysql-pv-claim
  namespace: nl-amis-testing
spec:
  storageClassName: manual
  accessModes:
    – ReadWriteOnce
  resources:
    requests:
      storage: 1Gi

# Source: mysql-chart/templates/service-mysql.yaml
kind: Service
apiVersion: v1
metadata:
  name: mysql-service
  namespace: nl-amis-testing
  labels:
    app: mysql
    version: “1.0”
    environment: testing
spec:
  selector:
    app: mysql
    version: “1.0”
    environment: testing
  ports:
  – port: 3306
  selector:
    app: mysql
  clusterIP: None

# Source: mysql-chart/templates/deployment-mysql.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mysql
  namespace: nl-amis-testing
  labels:
    app: mysql
    version: “1.0”
    environment: testing
spec:
  replicas: 1
  selector:
    matchLabels:
      app: mysql
      version: “1.0”
      environment: testing
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: mysql
        version: “1.0”
        environment: testing
    spec:
      containers:
      – image: mysql:5.6
        name: mysql
        env:
          # Use secret in real usage
        – name: MYSQL_ROOT_PASSWORD
          value: password
        ports:
        – containerPort: 3306
          name: mysql
        volumeMounts:
        – name: mysql-persistent-storage
          mountPath: /var/lib/mysql
      volumes:
      – name: mysql-persistent-storage
        persistentVolumeClaim:
          claimName: mysql-pv-claim

Simulate installing the booksservice-chart helm chart:

helm install --debug --dry-run ./booksservice-chart

With the following output:

[debug] Created tunnel using local port: ‘44953’

[debug] SERVER: “127.0.0.1:44953”

[debug] Original chart version: “”
[debug] CHART PATH: /vagrant/helmcharts/booksservice-chart

NAME:   wrapping-quail
REVISION: 1
RELEASED: Fri Mar  8 13:30:41 2019
CHART: booksservice-chart-0.1.0
USER-SUPPLIED VALUES:
{}

COMPUTED VALUES:
affinity: {}
fullnameOverride: “”
image:
  pullPolicy: IfNotPresent
  repository: nginx
  tag: stable
ingress:
  annotations: {}
  enabled: false
  hosts:
  – host: chart-example.local
    paths: []
  tls: []
nameOverride: “”
nodeSelector: {}
replicaCount: 1
resources: {}
service:
  port: 80
  type: ClusterIP
tolerations: []

HOOKS:
MANIFEST:


# Source: booksservice-chart/templates/service-booksservice-dev-v1.0.yaml
kind: Service
apiVersion: v1
metadata:
  name: booksservice-v1-0-service
  namespace: nl-amis-development
  labels:
    app: booksservice
    version: “1.0”
    environment: development
spec:
  selector:
    app: booksservice
    version: “1.0”
    environment: development
  type: NodePort
  ports:
  – protocol: TCP
    nodePort: 30010
    port: 9190
    targetPort: 9090

# Source: booksservice-chart/templates/service-booksservice-dev-v2.0.yaml
kind: Service
apiVersion: v1
metadata:
  name: booksservice-v2-0-service
  namespace: nl-amis-development
  labels:
    app: booksservice
    version: “2.0”
    environment: development
spec:
  selector:
    app: booksservice
    version: “2.0”
    environment: development
  type: NodePort
  ports:
  – protocol: TCP
    nodePort: 30020
    port: 9190
    targetPort: 9090

# Source: booksservice-chart/templates/service-booksservice-tst-v1.0.yaml
kind: Service
apiVersion: v1
metadata:
  name: booksservice-v1-0-service
  namespace: nl-amis-testing
  labels:
    app: booksservice
    version: “1.0”
    environment: testing
spec:
  selector:
    app: booksservice
    version: “1.0”
    environment: testing
  type: NodePort
  ports:
  – protocol: TCP
    nodePort: 30110
    port: 9191
    targetPort: 9091

# Source: booksservice-chart/templates/deployment-booksservice-dev-v1.0.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: booksservice-v1.0
  namespace: nl-amis-development
  labels:
    app: booksservice
    version: “1.0”
    environment: development
spec:
  replicas: 2
  selector:
    matchLabels:
      app: booksservice
      version: “1.0”
      environment: development
  template:
    metadata:
      labels:
        app: booksservice
        version: “1.0”
        environment: development
    spec:
      containers:
      – name: booksservice-v1-0-container
        image: booksservice:v1.0
        env:
        – name: spring.profiles.active
          value: “development”
        ports:
        – containerPort: 9090

# Source: booksservice-chart/templates/deployment-booksservice-dev-v2.0.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: booksservice-v2.0
  namespace: nl-amis-development
  labels:
    app: booksservice
    version: “2.0”
    environment: development
spec:
  replicas: 2
  selector:
    matchLabels:
      app: booksservice
      version: “2.0”
      environment: development
  template:
    metadata:
      labels:
        app: booksservice
        version: “2.0”
        environment: development
    spec:
      containers:
      – name: booksservice-v2-0-container
        image: booksservice:v2.0
        env:
        – name: spring.profiles.active
          value: “development”
        ports:
        – containerPort: 9090

# Source: booksservice-chart/templates/deployment-booksservice-tst-v1.0.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: booksservice-v1.0
  namespace: nl-amis-testing
  labels:
    app: booksservice
    version: “1.0”
    environment: testing
spec:
  replicas: 2
  selector:
    matchLabels:
      app: booksservice
      version: “1.0”
      environment: testing
  template:
    metadata:
      labels:
        app: booksservice
        version: “1.0”
        environment: testing
    spec:
      containers:
      – name: booksservice-v1-0-container
        image: booksservice:v1.0
        env:
        – name: spring.profiles.active
          value: “testing”
        – name: spring.datasource.url
          value: “jdbc:mysql://mysql-service.nl-amis-testing/test?allowPublicKeyRetrieval=true&useSSL=false”
        ports:
        – containerPort: 9091

When we take a look at the output of the simulation of installing the helm charts, we can see that the releases get a generated name.
For example, with the simulation of installing the namespace-chart helm chart, the release is named: newbie-dingo.

This is a generated name and not a good name for a release.

Luckily, we can use a name flag to give a release a name.
[https://helm.sh/docs/helm/#helm-install]

Creating Docker images

Before installing the helm charts, we must make sure the involved docker images are present. See my previous article.
[https://technology.amis.nl/2019/03/05/using-a-restful-web-service-spring-boot-application-in-minikube-together-with-an-external-dockerized-mysql-database/]

Linux Command Prompt: cd /vagrant

Linux Command Prompt: cd applications

Linux Command Prompt: cd books_service_1.0

Linux Command Prompt: docker build -t booksservice:v1.0 .

This command returned the following output:

Sending build context to Docker daemon 37.84MB

Successfully built 64d9ee081fa9
Successfully tagged booksservice:v1.0

Linux Command Prompt: cd ..

Linux Command Prompt: cd books_service_2.0

Linux Command Prompt: docker build -t booksservice:v2.0 .

This command returned the following output:

Sending build context to Docker daemon 37.84MB

Successfully built 070939e221c2
Successfully tagged booksservice:v2.0

Installing a helm chart (namespace-chart)

Install the namespace-chart helm chart:

helm install ./namespace-chart --name namespace-release

With the following output:

NAME:   namespace-release
LAST DEPLOYED: Sun Mar 10 15:06:46 2019
NAMESPACE: default
STATUS: DEPLOYED


RESOURCES:
==> v1/Namespace
NAME                 STATUS  AGE
nl-amis-development  Active  0s
nl-amis-testing      Active  0s

Check via the Kubernetes Web UI (Dashboard) that the namespaces are created:
http://127.0.0.1:8001/api/v1/namespaces/kube-system/services/http:kubernetes-dashboard:/proxy/#!/deployment?namespace=default

Navigate to Cluster | Namespaces:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 46

Installing a helm chart (mysql-chart)

Install the mysql-chart helm chart:

helm install ./mysql-chart --name mysql-release

With the following output:

NAME:   mysql-release
LAST DEPLOYED: Sun Mar 10 15:07:41 2019
NAMESPACE: default
STATUS: DEPLOYED

RESOURCES:
==> v1/Deployment
NAME   READY  UP-TO-DATE  AVAILABLE  AGE
mysql  0/1    1           0          0s

==> v1/PersistentVolume
NAME                     CAPACITY  ACCESS MODES  RECLAIM POLICY  STATUS  CLAIM                           STORAGECLASS  REASON  AGE
mysql-persistent-volume  1Gi       RWO           Retain          Bound   nl-amis-testing/mysql-pv-claim  manual        0s

==> v1/PersistentVolumeClaim
NAME            STATUS  VOLUME                   CAPACITY  ACCESS MODES  STORAGECLASS  AGE
mysql-pv-claim  Bound   mysql-persistent-volume  1Gi       RWO           manual        0s

==> v1/Pod(related)
NAME                    READY  STATUS             RESTARTS  AGE
mysql-64846c7974-gt7x4  0/1    ContainerCreating  0         0s

==> v1/Service
NAME           TYPE       CLUSTER-IP  EXTERNAL-IP  PORT(S)   AGE
mysql-service  ClusterIP  None               3306/TCP  0s

Check via the Kubernetes Web UI (Dashboard) that the deployment is created:
http://127.0.0.1:8001/api/v1/namespaces/kube-system/services/http:kubernetes-dashboard:/proxy/#!/node?namespace=nl-amis-testing

Navigate to Workloads | Deployments:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 47

Check via the Kubernetes Web UI (Dashboard) that the service is created:
http://127.0.0.1:8001/api/v1/namespaces/kube-system/services/http:kubernetes-dashboard:/proxy/#!/node?namespace=nl-amis-testing

Navigate to Discovery and Load Balancing| Services:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 48

Mysql-client

In my previous article, in the application-testing.properties you can see that a MySQL database named test is used.
[https://technology.amis.nl/2019/02/26/building-a-restful-web-service-with-spring-boot-using-an-h2-in-memory-database-and-also-an-external-mysql-database/]

So, I first created that database. For this I used a mysql-client.


kubectl --namespace=nl-amis-testing run -it --rm --image=mysql:5.6 --restart=Never mysql-client -- mysql -h mysql-service.nl-amis-testing -ppassword

If you don't see a command prompt, try pressing enter.

I had to click on the Enter button.

mysql> show databases;

With the following output:
Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 58


mysql> create database test;

Query OK, 1 row affected (0.00 sec)
mysql> show databases;

With the following output:
Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 59


mysql> exit

Bye
pod "mysql-client" deleted

Installing a helm chart (booksservice-chart)

Install the booksservice-chart helm chart:

helm install ./booksservice-chart --name booksservice-release

With the following output:

NAME:   booksservice-release
LAST DEPLOYED: Mon Mar 11 08:03:56 2019
NAMESPACE: default
STATUS: DEPLOYED

RESOURCES:
==> v1/Deployment
NAME               READY  UP-TO-DATE  AVAILABLE  AGE
booksservice-v1.0  0/2    2           0          1s
booksservice-v2.0  0/2    2           0          1s

==> v1/Pod(related)
NAME                                READY  STATUS             RESTARTS  AGE
booksservice-v1.0-5bcd5fddbd-dj7pw  0/1    Pending            0         0s
booksservice-v1.0-5bcd5fddbd-q2v6d  0/1    Pending            0         0s
booksservice-v1.0-68785bc6ff-dbm5r  0/1    ContainerCreating  0         0s
booksservice-v1.0-68785bc6ff-vq7p2  0/1    ContainerCreating  0         0s
booksservice-v2.0-869c5bb47d-hgsgk  0/1    ContainerCreating  0         0s
booksservice-v2.0-869c5bb47d-ztb2m  0/1    ContainerCreating  0         0s

==> v1/Service
NAME                       TYPE      CLUSTER-IP     EXTERNAL-IP  PORT(S)         AGE
booksservice-v1-0-service  NodePort  10.105.241.75         9191:30110/TCP  1s
booksservice-v2-0-service  NodePort  10.104.136.33         9190:30020/TCP  1s

Check via the Kubernetes Web UI (Dashboard) that the deployments are created (in the nl-amis-development namespace):
http://127.0.0.1:8001/api/v1/namespaces/kube-system/services/http:kubernetes-dashboard:/proxy/#!/node?namespace=nl-amis-development

Navigate to Workloads | Deployments:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 49

Check via the Kubernetes Web UI (Dashboard) that the services are created (in the nl-amis-development namespace):
http://127.0.0.1:8001/api/v1/namespaces/kube-system/services/http:kubernetes-dashboard:/proxy/#!/node?namespace=nl-amis-development

Navigate to Discovery and Load Balancing| Services:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 50

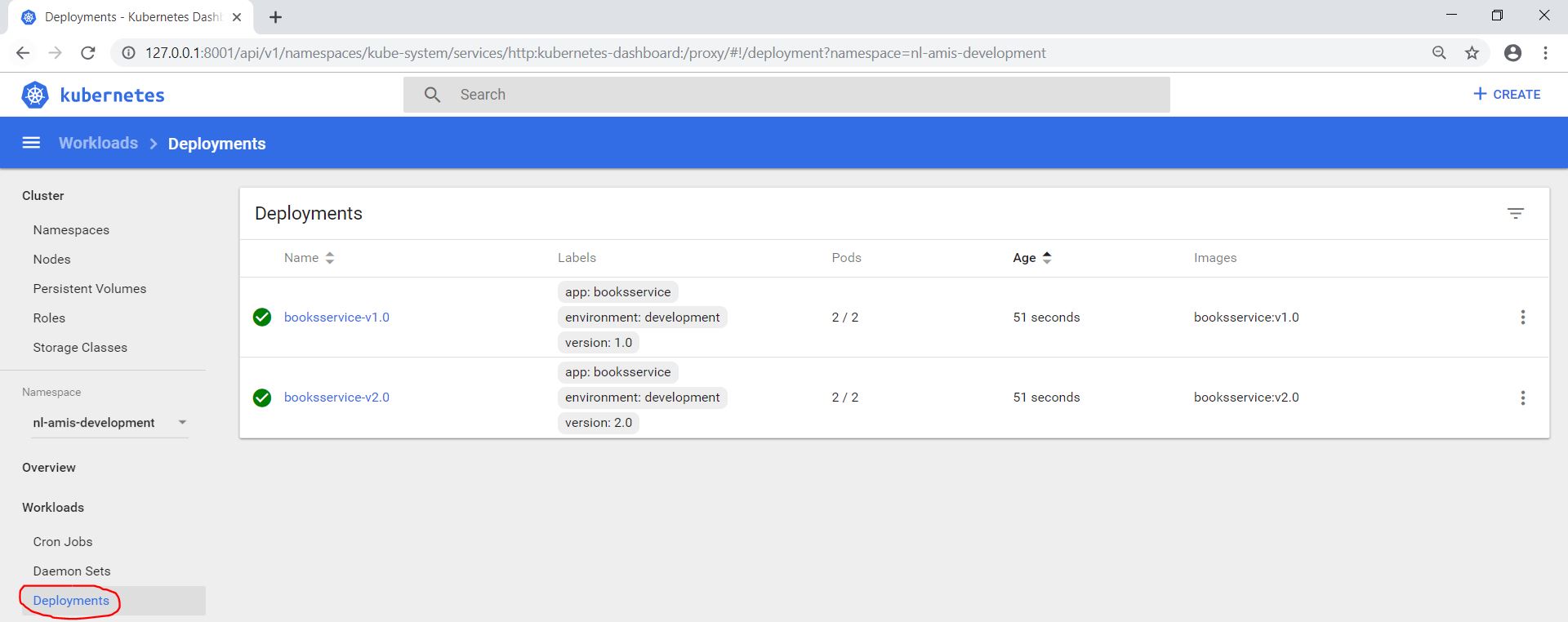

Check via the Kubernetes Web UI (Dashboard) that the deployment is created (in the nl-amis-testing namespace):
http://127.0.0.1:8001/api/v1/namespaces/kube-system/services/http:kubernetes-dashboard:/proxy/#!/node?namespace=nl-amis-testing

Navigate to Workloads | Deployments:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 51

Check via the Kubernetes Web UI (Dashboard) that the service is created (in the nl-amis-testing namespace):
http://127.0.0.1:8001/api/v1/namespaces/kube-system/services/http:kubernetes-dashboard:/proxy/#!/node?namespace=nl-amis-testing

Navigate to Discovery and Load Balancing| Services:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 52

Click on the booksservice-v1-0-service service:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 53

Via the Details you can see the following:

  • The Cluster IP address of this service is: 10.105.241.75
  • The Internal endpoints of this service are:
    • booksservice-v1-0-service.nl-amis-testing:9191 TCP
    • booksservice-v1-0-service.nl-amis-testing:30110 TCP
  • The Endpoints of the Pods/Containers are:
    • 172.17.0.11:9091 TCP
    • 172.17.0.12:9091 TCP

Releases

List releases:

helm list

With the following output:

NAME                    REVISION        UPDATED                         STATUS          CHART                           APP VERSION     NAMESPACE
booksservice-release    1               Mon Mar 11 08:03:56 2019        DEPLOYED        booksservice-chart-0.1.0        1.0             default
mysql-release           1               Sun Mar 10 15:07:41 2019        DEPLOYED        mysql-chart-0.1.0               1.0             default
namespace-release       1               Sun Mar 10 15:06:46 2019        DEPLOYED        namespace-chart-0.1.0           1.0             default

By default, it lists only releases that are deployed or failed. Flags like ‘–deleted’ and ‘–all’ will alter this behavior. Such flags can be combined: ‘–deleted –failed’.
By default, items are sorted alphabetically. Use the ‘-d’ flag to sort by release date.
[https://helm.sh/docs/helm/#helm-list]

List releases:

helm list -d

With the following output:

NAME                    REVISION        UPDATED                         STATUS          CHART                           APP VERSION     NAMESPACE
namespace-release       1               Sun Mar 10 15:06:46 2019        DEPLOYED        namespace-chart-0.1.0           1.0             default
mysql-release           1               Sun Mar 10 15:07:41 2019        DEPLOYED        mysql-chart-0.1.0               1.0             default
booksservice-release    1               Mon Mar 11 08:03:56 2019        DEPLOYED        booksservice-chart-0.1.0        1.0             default

Calling the booksservice application

Alright, so now the application should be running two Docker containers. Let’s test how the application responds by firing some requests.

First, I added some books with POST-requests to the booksservice application:


curl --header "Content-Type: application/json" --request POST --data '{"id": 1, "title": "The Threat: How the FBI Protects America in the Age of Terror and Trump", "author": "Andrew G. McCabe", "type": "Hardcover", "price": 17.99, "numOfPages": 288, "language": "English", "isbn13": "978-1250207579"}' http://10.105.241.75:9191/books

curl --header "Content-Type: application/json" --request POST --data '{"id": 2, "title": "Becoming", "publishDate": "2018-11-13", "author": "Michelle Obama", "type": "Hardcover", "price": 17.88, "numOfPages": 448, "publisher": "Crown Publishing Group; First Edition edition", "language": "English", "isbn13": "978-1524763138"}' http://10.105.241.75:9191/books

As you can see, I used the Cluster IP address of the service.

Next, we should be able to see our updated list at the /books path with a GET request. First I tried the service IP address:


curl http://10.105.241.75:9191/books

[{"id":"1","title":"The Threat: How the FBI Protects America in the Age of Terror and Trump","author":"Andrew G. McCabe","type":"Hardcover","price":17.99,"numOfPages":288,"language":"English","isbn13":"978-1250207579"},{"id":"2","title":"Becoming","author":"Michelle Obama","type":"Hardcover","price":17.88,"numOfPages":448,"language":"English","isbn13":"978-1524763138"}]

I also tried, the first Pod IP address:


curl http://172.17.0.11:9091/books

[{"id":"1","title":"The Threat: How the FBI Protects America in the Age of Terror and Trump","author":"Andrew G. McCabe","type":"Hardcover","price":17.99,"numOfPages":288,"language":"English","isbn13":"978-1250207579"},{"id":"2","title":"Becoming","author":"Michelle Obama","type":"Hardcover","price":17.88,"numOfPages":448,"language":"English","isbn13":"978-1524763138"}]

And then I tried, the second Pod IP address:


curl http://172.17.0.12:9091/books

[{"id":"1","title":"The Threat: How the FBI Protects America in the Age of Terror and Trump","author":"Andrew G. McCabe","type":"Hardcover","price":17.99,"numOfPages":288,"language":"English","isbn13":"978-1250207579"},{"id":"2","title":"Becoming","author":"Michelle Obama","type":"Hardcover","price":17.88,"numOfPages":448,"language":"English","isbn13":"978-1524763138"}]

Remember, this deployment uses the booksservice (RESTful Web Service Spring Boot Application) with an external MySQL database, running in a separate Docker container. So, the first and second Pod both use the same external MySQL database. Therefor it doesn’t matter to which Pod the service sent the POST-requests. Each of the above GET-requests responds with the same answer (all 2 books).

As a final step I checked the contents of the book table. Again I used a mysql-client for this.


kubectl --namespace=nl-amis-testing run -it --rm --image=mysql:5.6 --restart=Never mysql-client -- mysql -h mysql-service.nl-amis-testing -ppassword

If you don't see a command prompt, try pressing enter.

I had to click on the Enter button.


mysql> use test;

Reading table information for completion of table and column names

You can turn off this feature to get a quicker startup with -A

Database changed
mysql> select * from book;

With the following output:

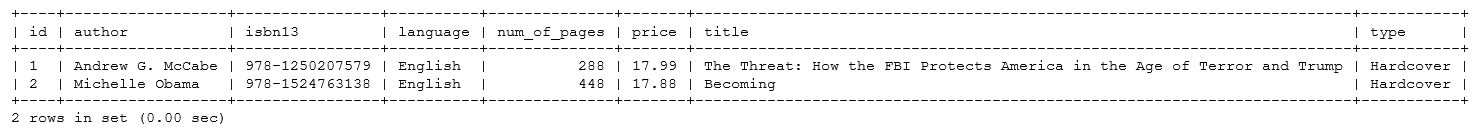

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 60

Again, both books that I added, were returned.


mysql> exit

Bye

pod "mysql-client" deleted

Upgrading a release (booksservice-release)

Next, I made some changes. For version 2.0 of the BooksServiceApplication, the replicas are changed from 2 to 5, so the ReplicaSet ensures that 5 pod replicas are running at any given time.

I changed the content of file deployment-booksservice-dev-v2.0.yaml in the template directory to:


apiVersion: apps/v1
kind: Deployment
metadata:
  name: booksservice-v2.0
  namespace: nl-amis-development
  labels:
    app: booksservice
    version: "2.0"
    environment: development
spec:
  replicas: 5
  selector:
    matchLabels:
      app: booksservice
      version: "2.0"
      environment: development
  template:
    metadata:
      labels:
        app: booksservice
        version: "2.0"
        environment: development
    spec:
      containers:
      - name: booksservice-v2-0-container
        image: booksservice:v2.0
        env:
        - name: spring.profiles.active
          value: "development"
        ports:
        - containerPort: 9090

Remark:
This deployment uses the booksservice (RESTful Web Service Spring Boot application) with H2 as an embedded in-memory database.
The replicas are set to 5, so the ReplicaSet ensures that 5 pod replicas are running at any given time.
The ReplicaSet manages all the pods with labels that match the selector. In my case these labels are:

Label key Label value
app booksservice
version 2.0
environment development

Via the Environment variables, the active Spring profile has to be set up.

Then, I updated the version of the release in the Chart.yaml file of the booksservice-chart helm chart to 0.2.0
The file Chart.yaml then has the following content:


apiVersion: v1
appVersion: "1.0"
description: A Helm chart for Kubernetes
name: booksservice-chart
version: 0.2.0

Upgrade the booksservice-release release:

helm upgrade booksservice-release ./booksservice-chart

This command upgrades a release to a specified version of a chart and/or updates chart values.
[https://helm.sh/docs/helm/#helm-upgrade]

With the following output:

Release “booksservice-release” has been upgraded. Happy Helming!
LAST DEPLOYED: Mon Mar 11 13:36:57 2019
NAMESPACE: default
STATUS: DEPLOYED

RESOURCES:
==> v1/Deployment
NAME               READY  UP-TO-DATE  AVAILABLE  AGE
booksservice-v1.0  2/2    2           2          19m
booksservice-v2.0  2/5    5           2          19m

==> v1/Pod(related)
NAME                                READY  STATUS             RESTARTS  AGE
booksservice-v1.0-5bcd5fddbd-mx642  1/1    Running            0         19m
booksservice-v1.0-5bcd5fddbd-xbqkw  1/1    Running            0         19m
booksservice-v1.0-68785bc6ff-49cjf  1/1    Running            0         19m
booksservice-v1.0-68785bc6ff-57hn8  1/1    Running            0         19m
booksservice-v2.0-869c5bb47d-fntgd  1/1    Running            0         19m
booksservice-v2.0-869c5bb47d-gqmhh  0/1    ContainerCreating  0         0s
booksservice-v2.0-869c5bb47d-jbgrr  0/1    ContainerCreating  0         0s
booksservice-v2.0-869c5bb47d-mt6wj  1/1    Running            0         19m
booksservice-v2.0-869c5bb47d-zzjrq  0/1    ContainerCreating  0         0s

==> v1/Service
NAME                       TYPE      CLUSTER-IP      EXTERNAL-IP  PORT(S)         AGE
booksservice-v1-0-service  NodePort  10.106.127.118         9191:30110/TCP  19m
booksservice-v2-0-service  NodePort  10.106.73.66           9190:30020/TCP  19m

List releases:

helm list -d

With the following output:

NAME                    REVISION        UPDATED                         STATUS          CHART                           APP VERSION     NAMESPACE
namespace-release       1               Sun Mar 10 15:06:46 2019        DEPLOYED        namespace-chart-0.1.0           1.0             default
mysql-release           1               Sun Mar 10 15:07:41 2019        DEPLOYED        mysql-chart-0.1.0               1.0             default
booksservice-release    2               Mon Mar 11 13:36:57 2019        DEPLOYED        booksservice-chart-0.2.0        1.0             default

We can see, that the new version number is being used in the chart name.

Check via the Kubernetes Web UI (Dashboard) that the correct number of pods are created (in the nl-amis-development namespace):
http://127.0.0.1:8001/api/v1/namespaces/kube-system/services/http:kubernetes-dashboard:/proxy/#!/node?namespace=nl-amis-development

Navigate to Workloads | Replica Sets:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 54

Click on the booksservice-v2.0-869c5bb47d replica set:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 55

Here we can see that the ReplicaSet ensures that 5 pod replicas are running at any given time.

Finally, let’s try to delete and re-install a release.

Delete the booksservice-release release:


helm delete booksservice-release

release "booksservice-release" deleted

This command takes a release name, and then deletes the release from Kubernetes. It removes all of the resources associated with the last release of the chart.
[https://helm.sh/docs/helm/#helm-delete]

Install the booksservice-chart helm chart:

helm install ./booksservice-chart --name booksservice-release

With the following output:

Error: a release named booksservice-release already exists.
Run: helm ls –all booksservice-release; to check the status of the release
Or run: helm del –purge booksservice-release; to delete it

Apparently, the release still existed.

List releases:

helm ls --all booksservice-release

By default, it lists only releases that are deployed or failed. Flags like ‘–deleted’ and ‘–all’ will alter this behavior. Such flags can be combined: ‘–deleted –failed’.
Flag: –all show all releases, not just the ones marked DEPLOYED
[https://helm.sh/docs/helm/#helm-list]

With the following output:

NAME                    REVISION        UPDATED                         STATUS  CHART                           APP VERSION     NAMESPACE
booksservice-release    2               Mon Mar 11 13:36:57 2019        DELETED booksservice-chart-0.2.0        1.0             default

So, the release still existed with as status DELETED.

Delete the release:


helm del --purge booksservice-release

release "booksservice-release" deleted

Install the booksservice-chart helm chart:

helm install ./booksservice-chart --name booksservice-release

With the following output:

NAME:   booksservice-release
LAST DEPLOYED: Mon Mar 11 13:49:25 2019
NAMESPACE: default
STATUS: DEPLOYED

RESOURCES:
==> v1/Deployment
NAME               READY  UP-TO-DATE  AVAILABLE  AGE
booksservice-v1.0  0/2    2           0          0s
booksservice-v2.0  0/5    5           0          0s

==> v1/Pod(related)
NAME                                READY  STATUS             RESTARTS  AGE
booksservice-v1.0-5bcd5fddbd-kds47  0/1    ContainerCreating  0         0s
booksservice-v1.0-5bcd5fddbd-q474x  0/1    Pending            0         0s
booksservice-v1.0-68785bc6ff-pgvjj  0/1    ContainerCreating  0         0s
booksservice-v1.0-68785bc6ff-rlhjm  0/1    ContainerCreating  0         0s
booksservice-v2.0-869c5bb47d-5dmjg  0/1    ContainerCreating  0         0s
booksservice-v2.0-869c5bb47d-cfljj  0/1    ContainerCreating  0         0s
booksservice-v2.0-869c5bb47d-jnftt  0/1    Pending            0         0s
booksservice-v2.0-869c5bb47d-lckc2  0/1    Pending            0         0s
booksservice-v2.0-869c5bb47d-r9p4j  0/1    Pending            0         0s

==> v1/Service
NAME                       TYPE      CLUSTER-IP      EXTERNAL-IP  PORT(S)         AGE
booksservice-v1-0-service  NodePort  10.107.241.118         9191:30110/TCP  0s
booksservice-v2-0-service  NodePort  10.96.87.111           9190:30020/TCP  0s

List releases:

helm list -d

With the following output:

NAME                    REVISION        UPDATED                         STATUS          CHART                           APP VERSION     NAMESPACE
namespace-release       1               Sun Mar 10 15:06:46 2019        DEPLOYED        namespace-chart-0.1.0           1.0             default
mysql-release           1               Sun Mar 10 15:07:41 2019        DEPLOYED        mysql-chart-0.1.0               1.0             default
booksservice-release    1               Mon Mar 11 13:49:25 2019        DEPLOYED        booksservice-chart-0.2.0        1.0             default

Check via the Kubernetes Web UI (Dashboard) that the correct number of pods are created (in the nl-amis-development namespace):
http://127.0.0.1:8001/api/v1/namespaces/kube-system/services/http:kubernetes-dashboard:/proxy/#!/node?namespace=nl-amis-development

Navigate to Workloads | Replicae Sets:

Using Helm, the package manager for Kubernetes, to install two versions of a RESTful Web Service Spring Boot application within Minikube lameriks 201903 56

Here we can see that the correct number of pods are created.

With this final check I conclude this article.

I tried out some of the functionality of Helm and found it easy and helpful to use this package manager for Kubernetes.

3 Comments

  1. vijay January 6, 2020
    • Marc Lameriks January 6, 2020
  2. yurimednikov April 23, 2019
