I wanted to set up a demo environment with Apache Kafka (an open-source distributed event streaming platform) and an Oracle Database, all within containers. For my purpose I opted for Oracle Database XE.
[https://kafka.apache.org/]
As I did before, on my Windows laptop, I wanted to use a demo environment within an Oracle VirtualBox appliance, with the help of Vagrant.
I am going to use Linux, and at the time I wrote this article, the general availability of Oracle Database 21c Express Edition (XE) on Linux was announced!
[https://blogs.oracle.com/database/post/oracle-database-21c-xe-generally-available]
In a series of articles, I will take you with me on my path to set everything up.
In this article I will share with you the steps I took, to set up a demo environment with an Oracle Database XE. The focus in this article will be on Oracle Database 21c XE and the problems I encountered.
Stop the running machine
I continue where I left off in the previous article, where I created an Oracle VirtualBox appliance with
Oracle Database 18.4.0 XE, with the help of Vagrant.
[Oracle Database 21c XE, setting up a demo environment using Vagrant and Oracle VirtualBox (part 1)]
I wanted to start more or less from scratch, and with Vagrant that’s no problem.
From the subdirectory named env on my Windows laptop, I opened a Windows Command Prompt (cmd) and typed:
vagrant destroy
With the following output:
ubuntu_docker: Are you sure you want to destroy the 'ubuntu_docker' VM? [y/N] y ==> ubuntu_docker: Destroying VM and associated drives...
Next, I typed:
vagrant up
With the following output (only showing certain parts):
Bringing machine 'ubuntu_docker' up with 'virtualbox' provider... ==> ubuntu_docker: Box 'ubuntu/focal64' could not be found. Attempting to find and install... ubuntu_docker: Box Provider: virtualbox ubuntu_docker: Box Version: >= 0 ==> ubuntu_docker: Loading metadata for box 'ubuntu/focal64' ubuntu_docker: URL: https://vagrantcloud.com/ubuntu/focal64 ==> ubuntu_docker: Adding box 'ubuntu/focal64' (v20211026.0.0) for provider: virtualbox ubuntu_docker: Downloading: https://vagrantcloud.com/ubuntu/boxes/focal64/versions/20211026.0.0/providers/virtualbox.box Download redirected to host: cloud-images.ubuntu.com ubuntu_docker: ==> ubuntu_docker: Successfully added box 'ubuntu/focal64' (v20211026.0.0) for 'virtualbox'! ==> ubuntu_docker: Importing base box 'ubuntu/focal64'... … ==> ubuntu_docker: Mounting shared folders... ubuntu_docker: /vagrant => C:/My/AMIS/env … ubuntu_docker: **** Begin installing Docker Engine … ubuntu_docker: Unable to find image 'hello-world:latest' locally ubuntu_docker: latest: Pulling from library/hello-world ubuntu_docker: 2db29710123e: Pulling fs layer ubuntu_docker: 2db29710123e: Verifying Checksum ubuntu_docker: 2db29710123e: Download complete ubuntu_docker: 2db29710123e: Pull complete ubuntu_docker: Digest: sha256:37a0b92b08d4919615c3ee023f7ddb068d12b8387475d64c622ac30f45c29c51 ubuntu_docker: Status: Downloaded newer image for hello-world:latest ubuntu_docker: ubuntu_docker: Hello from Docker! ubuntu_docker: This message shows that your installation appears to be working correctly. ubuntu_docker: ubuntu_docker: To generate this message, Docker took the following steps: ubuntu_docker: 1. The Docker client contacted the Docker daemon. ubuntu_docker: 2. The Docker daemon pulled the "hello-world" image from the Docker Hub. ubuntu_docker: (amd64) ubuntu_docker: 3. The Docker daemon created a new container from that image which runs the ubuntu_docker: executable that produces the output you are currently reading. ubuntu_docker: 4. The Docker daemon streamed that output to the Docker client, which sent it ubuntu_docker: to your terminal. ubuntu_docker: ubuntu_docker: To try something more ambitious, you can run an Ubuntu container with: ubuntu_docker: &docker run -it ubuntu bash ubuntu_docker: ubuntu_docker: Share images, automate workflows, and more with a free Docker ID: ubuntu_docker: https://hub.docker.com/ ubuntu_docker: ubuntu_docker: For more examples and ideas, visit: ubuntu_docker: https://docs.docker.com/get-started/ ubuntu_docker: ubuntu_docker: **** End installing Docker Engine
Creating dockerfiles for Oracle Database 21c XE
As I mentioned in my previous article, for setting up my demo environment, I opted for setting up a Linux VirtualBox VM myself, by using Vagrant scripts (as I did many times before), and installing the Oracle Database XE by using the Linux Docker image, which can be built using the Dockerfile, provided on github.
Looking at the README.md, the most recent container image for XE was: Oracle Database 18c (18.4.0) Express Edition (XE). As I mentioned in my previous article, from the docker-images-main.zip, I downloaded earlier from github, I extracted directory OracleDatabase\SingleInstance\dockerfiles\18.4.0 to directory C:\My\AMIS\env\oraclexedatabase\dockerfiles\18.4.0 on my Windows laptop.
[https://github.com/oracle/docker-images/blob/main/OracleDatabase/SingleInstance/README.md]
I reckoned that perhaps I could change the existing 18.4.0 scripts so they would work for 21c.
So, I made a copy of the 18.4.0 directory and named it 21.0.0 (not being sure what the exact version would be, I left it at this for the time being).
Then I had to change the content of a number of files.
Content of file Dockerfile.xe:
[in bold, I highlighted the changes]
# LICENSE UPL 1.0 # # Copyright (c) 2018, 2020 Oracle and/or its affiliates. # # ORACLE DOCKERFILES PROJECT # -------------------------- # This is the Dockerfile for Oracle Database 21c Express Edition # # REQUIRED FILES TO BUILD THIS IMAGE # ---------------------------------- # None # # HOW TO BUILD THIS IMAGE # ----------------------- # Run: # docker build -t oracle/database:21.0.0-xe -f Dockerfile.xe . # # # Pull base image # --------------- FROM oraclelinux:7-slim # Labels # ------ LABEL "provider"="Oracle" \ "issues"="https://github.com/oracle/docker-images/issues" \ "volume.data"="/opt/oracle/oradata" \ "volume.setup.location1"="/opt/oracle/scripts/setup" \ "volume.setup.location2"="/docker-entrypoint-initdb.d/setup" \ "volume.startup.location1"="/opt/oracle/scripts/startup" \ "volume.startup.location2"="/docker-entrypoint-initdb.d/startup" \ "port.listener"="1521" \ "port.oemexpress"="5500" \ "port.apex"="8080" # Environment variables required for this build (do NOT change) # ------------------------------------------------------------- ENV ORACLE_BASE=/opt/oracle \ ORACLE_HOME=/opt/oracle/product/21c/dbhomeXE \ ORACLE_SID=XE \ INSTALL_FILE_1="https://download.oracle.com/otn-pub/otn_software/db-express/oracle-database-xe-21c-1.0-1.ol8.x86_64.rpm" \ RUN_FILE="runOracle.sh" \ PWD_FILE="setPassword.sh" \ CONF_FILE="oracle-xe-21c.conf" \ CHECK_SPACE_FILE="checkSpace.sh" \ CHECK_DB_FILE="checkDBStatus.sh" \ INSTALL_DIR="$HOME/install" \ ORACLE_DOCKER_INSTALL="true" # Use second ENV so that variable get substituted ENV PATH=$ORACLE_HOME/bin:$PATH # Copy binaries # ------------- COPY $CHECK_SPACE_FILE $RUN_FILE $PWD_FILE $CHECK_DB_FILE $CONF_FILE $INSTALL_DIR/ RUN chmod ug+x $INSTALL_DIR/*.sh && \ sync && \ $INSTALL_DIR/$CHECK_SPACE_FILE && \ cd $INSTALL_DIR && \ yum -y install openssl oracle-database-preinstall-21c && \ sed -i -e 's/\(oracle\s\+hard\s\+nofile\)/# \1/' /etc/security/limits.d/oracle-database-preinstall-21c.conf && \ yum -y localinstall $INSTALL_FILE_1 && \ rm -rf /var/cache/yum && \ rm -rf /var/tmp/yum-* && \ mkdir -p $ORACLE_BASE/scripts/setup && \ mkdir $ORACLE_BASE/scripts/startup && \ ln -s $ORACLE_BASE/scripts /docker-entrypoint-initdb.d && \ mkdir -p $ORACLE_BASE/oradata /home/oracle && \ chown -R oracle:oinstall $ORACLE_BASE /home/oracle && \ mv $INSTALL_DIR/$RUN_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$PWD_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$CHECK_DB_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$CONF_FILE /etc/sysconfig/ && \ ln -s $ORACLE_BASE/$PWD_FILE / && \ cd $HOME && \ rm -rf $INSTALL_DIR && \ chmod ug+x $ORACLE_BASE/*.sh HEALTHCHECK --interval=1m --start-period=5m \ CMD "$ORACLE_BASE/$CHECK_DB_FILE" >/dev/null || exit 1 CMD exec $ORACLE_BASE/$RUN_FILE
I renamed file oracle-xe-18c.conf to oracle-xe-21c.conf, with content:
[in bold, I highlighted the changes]
# This is a configuration file to setup the Oracle Database. # It is used when running '/etc/init.d/oracle-xe-21c configure'. # LISTENER PORT used Database listener, Leave empty for automatic port assignment LISTENER_PORT=1521 # EM_EXPRESS_PORT Oracle EM Express URL port EM_EXPRESS_PORT=5500 # Character set of the database CHARSET=###ORACLE_CHARACTERSET### # Database file directory # If not specified, database files are stored under Oracle base/oradata DBFILE_DEST= # SKIP Validations, memory, space SKIP_VALIDATIONS=false
Content of file runOracle.sh:
[in bold, I highlighted the changes]
#!/bin/bash
############# Execute custom scripts ##############
function runUserScripts {
SCRIPTS_ROOT="$1";
# Check whether parameter has been passed on
if [ -z "$SCRIPTS_ROOT" ]; then
echo "$0: No SCRIPTS_ROOT passed on, no scripts will be run";
exit 1;
fi;
# Execute custom provided files (only if directory exists and has files in it)
if [ -d "$SCRIPTS_ROOT" ] && [ -n "$(ls -A $SCRIPTS_ROOT)" ]; then
echo "";
echo "Executing user defined scripts"
for f in $SCRIPTS_ROOT/*; do
case "$f" in
*.sh) echo "$0: running $f"; . "$f" ;;
*.sql) echo "$0: running $f"; echo "exit" | su -p oracle -c "$ORACLE_HOME/bin/sqlplus / as sysdba @$f"; echo ;;
*) echo "$0: ignoring $f" ;;
esac
echo "";
done
echo "DONE: Executing user defined scripts"
echo "";
fi;
}
########### Move DB files ############
function moveFiles {
if [ ! -d $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID ]; then
su -p oracle -c "mkdir -p $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/"
fi;
su -p oracle -c "mv $ORACLE_HOME/dbs/spfile$ORACLE_SID.ora $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/"
su -p oracle -c "mv $ORACLE_HOME/dbs/orapw$ORACLE_SID $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/"
su -p oracle -c "mv $ORACLE_HOME/network/admin/listener.ora $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/"
su -p oracle -c "mv $ORACLE_HOME/network/admin/tnsnames.ora $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/"
cp /etc/oratab $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/
symLinkFiles;
}
########### Symbolic link DB files ############
function symLinkFiles {
if [ ! -L $ORACLE_HOME/dbs/spfile$ORACLE_SID.ora ]; then
ln -s $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/spfile$ORACLE_SID.ora $ORACLE_HOME/dbs/spfile$ORACLE_SID.ora
fi;
if [ ! -L $ORACLE_HOME/dbs/orapw$ORACLE_SID ]; then
ln -s $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/orapw$ORACLE_SID $ORACLE_HOME/dbs/orapw$ORACLE_SID
fi;
if [ ! -L $ORACLE_HOME/network/admin/listener.ora ]; then
ln -sf $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/listener.ora $ORACLE_HOME/network/admin/listener.ora
fi;
if [ ! -L $ORACLE_HOME/network/admin/tnsnames.ora ]; then
ln -sf $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/tnsnames.ora $ORACLE_HOME/network/admin/tnsnames.ora
fi;
cp $ORACLE_BASE/oradata/dbconfig/$ORACLE_SID/oratab /etc/oratab
}
########### Opposite of the above ############
function undoSymLinkFiles {
if [ -L $ORACLE_HOME/dbs/spfile$ORACLE_SID.ora ]; then
rm $ORACLE_HOME/dbs/spfile$ORACLE_SID.ora
fi;
if [ -L $ORACLE_HOME/dbs/orapw$ORACLE_SID ]; then
rm $ORACLE_HOME/dbs/orapw$ORACLE_SID
fi;
if [ -L $ORACLE_HOME/network/admin/listener.ora ]; then
rm $ORACLE_HOME/network/admin/listener.ora
fi;
if [ -L $ORACLE_HOME/network/admin/tnsnames.ora ]; then
rm $ORACLE_HOME/network/admin/tnsnames.ora
fi;
sed -i "\|${ORACLE_SID}:${ORACLE_HOME}|d" /etc/oratab
}
########### SIGTERM handler ############
function _term() {
echo "Stopping container."
echo "SIGTERM received, shutting down database!"
/etc/init.d/oracle-xe-21c stop
}
############# Create DB ################
function createDB {
# Auto generate ORACLE PWD if not passed on
export ORACLE_PWD=${ORACLE_PWD:-"`openssl rand -hex 8`"}
echo "ORACLE PASSWORD FOR SYS AND SYSTEM: $ORACLE_PWD";
# Set character set
export ORACLE_CHARACTERSET=${ORACLE_CHARACTERSET:-AL32UTF8}
sed -i -e "s|###ORACLE_CHARACTERSET###|$ORACLE_CHARACTERSET|g" /etc/sysconfig/$CONF_FILE
(echo "$ORACLE_PWD"; echo "$ORACLE_PWD";) | /etc/init.d/oracle-xe-21c configure
# Listener
echo "# listener.ora Network Configuration File:
SID_LIST_LISTENER =
(SID_LIST =
(SID_DESC =
(SID_NAME = PLSExtProc)
(ORACLE_HOME = $ORACLE_HOME)
(PROGRAM = extproc)
)
)
LISTENER =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC_FOR_XE))
(ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))
)
)
DEFAULT_SERVICE_LISTENER = (XE)" > $ORACLE_HOME/network/admin/listener.ora
# TNS Names.ora
echo "# tnsnames.ora Network Configuration File:
XE =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = XE)
)
)
LISTENER_XE =
(ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))
XEPDB1 =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = XEPDB1)
)
)
EXTPROC_CONNECTION_DATA =
(DESCRIPTION =
(ADDRESS_LIST =
(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC_FOR_XE))
)
(CONNECT_DATA =
(SID = PLSExtProc)
(PRESENTATION = RO)
)
)
" > $ORACLE_HOME/network/admin/tnsnames.ora
# Move database operational files to oradata
moveFiles;
}
############# MAIN ################
# Set SIGTERM handler
trap _term SIGTERM
# Check whether database already exists
if [ -d $ORACLE_BASE/oradata/$ORACLE_SID ]; then
symLinkFiles;
# Make sure audit file destination exists
if [ ! -d $ORACLE_BASE/admin/$ORACLE_SID/adump ]; then
su -p oracle -c "mkdir -p $ORACLE_BASE/admin/$ORACLE_SID/adump"
fi;
else
# If the oradata folder is missing/empty, but db was previously set up,
# allow a new db to be set up in its place
undoSymLinkFiles;
fi;
/etc/init.d/oracle-xe-21c start | grep -qc "Oracle Database is not configured"
if [ "$?" == "0" ]; then
# Create database
createDB;
# Execute custom provided setup scripts
runUserScripts $ORACLE_BASE/scripts/setup
fi;
# Check whether database is up and running
$ORACLE_BASE/$CHECK_DB_FILE
if [ $? -eq 0 ]; then
echo "#########################"
echo "DATABASE IS READY TO USE!"
echo "#########################"
# Execute custom provided startup scripts
runUserScripts $ORACLE_BASE/scripts/startup
else
echo "#####################################"
echo "########### E R R O R ###############"
echo "DATABASE SETUP WAS NOT SUCCESSFUL!"
echo "Please check output for further info!"
echo "########### E R R O R ###############"
echo "#####################################"
fi;
echo "The following output is now a tail of the alert.log:"
tail -f $ORACLE_BASE/diag/rdbms/*/*/trace/alert*.log &
childPID=$!
wait $childPID
Next, I had a looked at file buildContainerImage.sh and search for 18.4.0 in the file. Then, I changed the content of the file:
[in bold, I highlighted the changes]
#!/bin/bash -e
#
# Since: April, 2016
# Author: gerald.venzl@oracle.com
# Description: Build script for building Oracle Database container images.
#
# DO NOT ALTER OR REMOVE COPYRIGHT NOTICES OR THIS HEADER.
#
# Copyright (c) 2014,2021 Oracle and/or its affiliates.
#
usage() {
cat << EOF
Usage: buildContainerImage.sh -v [version] -t [image_name:tag] [-e | -s | -x] [-i] [-o] [container build option]
Builds a container image for Oracle Database.
Parameters:
-v: version to build
Choose one of: $(for i in */; do echo -n "${i%%/} "; done)
-t: image_name:tag for the generated docker image
-e: creates image based on 'Enterprise Edition'
-s: creates image based on 'Standard Edition 2'
-x: creates image based on 'Express Edition'
-i: ignores the MD5 checksums
-o: passes on container build option
* select one edition only: -e, -s, or -x
LICENSE UPL 1.0
Copyright (c) 2014,2021 Oracle and/or its affiliates.
EOF
}
# Validate packages
checksumPackages() {
if hash md5sum 2>/dev/null; then
echo "Checking if required packages are present and valid..."
if ! md5sum -c "Checksum.${EDITION}"; then
echo "MD5 for required packages to build this image did not match!"
echo "Make sure to download missing files in folder ${VERSION}."
exit 1;
fi
else
echo "Ignored MD5 sum, 'md5sum' command not available.";
fi
}
# Check container runtime
checkContainerRuntime() {
CONTAINER_RUNTIME=$(which docker 2>/dev/null) ||
CONTAINER_RUNTIME=$(which podman 2>/dev/null) ||
{
echo "No docker or podman executable found in your PATH"
exit 1
}
if "${CONTAINER_RUNTIME}" info | grep -i -q buildahversion; then
checkPodmanVersion
else
checkDockerVersion
fi
}
# Check Podman version
checkPodmanVersion() {
# Get Podman version
echo "Checking Podman version."
PODMAN_VERSION=$("${CONTAINER_RUNTIME}" info --format '{{.host.BuildahVersion}}' 2>/dev/null ||
"${CONTAINER_RUNTIME}" info --format '{{.Host.BuildahVersion}}')
# Remove dot in Podman version
PODMAN_VERSION=${PODMAN_VERSION//./}
if [ -z "${PODMAN_VERSION}" ]; then
exit 1;
elif [ "${PODMAN_VERSION}" -lt "${MIN_PODMAN_VERSION//./}" ]; then
echo "Podman version is below the minimum required version ${MIN_PODMAN_VERSION}"
echo "Please upgrade your Podman installation to proceed."
exit 1;
fi
}
# Check Docker version
checkDockerVersion() {
# Get Docker Server version
echo "Checking Docker version."
DOCKER_VERSION=$("${CONTAINER_RUNTIME}" version --format '{{.Server.Version | printf "%.5s" }}'|| exit 0)
# Remove dot in Docker version
DOCKER_VERSION=${DOCKER_VERSION//./}
if [ "${DOCKER_VERSION}" -lt "${MIN_DOCKER_VERSION//./}" ]; then
echo "Docker version is below the minimum required version ${MIN_DOCKER_VERSION}"
echo "Please upgrade your Docker installation to proceed."
exit 1;
fi;
}
##############
#### MAIN ####
##############
# Go into dockerfiles directory
cd $(dirname $0)
# Parameters
ENTERPRISE=0
STANDARD=0
EXPRESS=0
# Obtaining the latest version to build
VERSION="$(ls -1rd *.*.* | sed -n 1p)"
SKIPMD5=0
declare -a BUILD_OPTS
MIN_DOCKER_VERSION="17.09"
MIN_PODMAN_VERSION="1.6.0"
DOCKERFILE="Dockerfile"
IMAGE_NAME=""
if [ "$#" -eq 0 ]; then
usage;
exit 1;
fi
while getopts "hesxiv:t:o:" optname; do
case "${optname}" in
"h")
usage
exit 0;
;;
"i")
SKIPMD5=1
;;
"e")
ENTERPRISE=1
;;
"s")
STANDARD=1
;;
"x")
EXPRESS=1
;;
"v")
VERSION="${OPTARG}"
;;
"t")
IMAGE_NAME="${OPTARG}"
;;
"o")
eval "BUILD_OPTS=(${OPTARG})"
;;
"?")
usage;
exit 1;
;;
*)
# Should not occur
echo "Unknown error while processing options inside buildContainerImage.sh"
;;
esac
done
# Check that we have a container runtime installed
checkContainerRuntime
# Which Edition should be used?
if [ $((ENTERPRISE + STANDARD + EXPRESS)) -gt 1 ]; then
usage
elif [ ${ENTERPRISE} -eq 1 ]; then
EDITION="ee"
elif [ ${STANDARD} -eq 1 ]; then
EDITION="se2"
elif [ ${EXPRESS} -eq 1 ]; then
if [ "${VERSION}" == "21.0.0" ]; then
EDITION="xe"
SKIPMD5=1
elif [ "${VERSION}" == "18.4.0" ]; then
EDITION="xe"
SKIPMD5=1
elif [ "${VERSION}" == "11.2.0.2" ]; then
EDITION="xe"
BUILD_OPTS=("--shm-size=1G" "${BUILD_OPTS[@]}")
else
echo "Version ${VERSION} does not have Express Edition available.";
exit 1;
fi;
fi;
# Which Dockerfile should be used?
if [ "${VERSION}" == "12.1.0.2" ] || [ "${VERSION}" == "11.2.0.2" ] || [ "${VERSION}" == "21.0.0" ] || [ "${VERSION}" == "18.4.0" ]; then
DOCKERFILE="${DOCKERFILE}.${EDITION}"
fi;
# Oracle Database image Name
# If provided using -t build option then use it; Otherwise, create with version and edition
if [ -z "${IMAGE_NAME}" ]; then
IMAGE_NAME="oracle/database:${VERSION}-${EDITION}"
fi;
# Go into version folder
cd "${VERSION}" || {
echo "Could not find version directory '${VERSION}'";
exit 1;
}
if [ ! "${SKIPMD5}" -eq 1 ]; then
checksumPackages
else
echo "Ignored MD5 checksum."
fi
echo "=========================="
echo "Container runtime info:"
"${CONTAINER_RUNTIME}" info
echo "=========================="
# Proxy settings
declare -a PROXY_SETTINGS
# shellcheck disable=SC2154
if [ "${http_proxy}" != "" ]; then
PROXY_SETTINGS=("${PROXY_SETTINGS[@]}" "--build-arg" "http_proxy=${http_proxy}")
fi
# shellcheck disable=SC2154
if [ "${https_proxy}" != "" ]; then
PROXY_SETTINGS=("${PROXY_SETTINGS[@]}" "--build-arg" "https_proxy=${https_proxy}")
fi
# shellcheck disable=SC2154
if [ "${ftp_proxy}" != "" ]; then
PROXY_SETTINGS=("${PROXY_SETTINGS[@]}" "--build-arg" "ftp_proxy=${ftp_proxy}")
fi
# shellcheck disable=SC2154
if [ "${no_proxy}" != "" ]; then
PROXY_SETTINGS=("${PROXY_SETTINGS[@]}" "--build-arg" "no_proxy=${no_proxy}")
fi
if [ ${#PROXY_SETTINGS[@]} -gt 0 ]; then
echo "Proxy settings were found and will be used during the build."
fi
# ################## #
# BUILDING THE IMAGE #
# ################## #
echo "Building image '${IMAGE_NAME}' ..."
# BUILD THE IMAGE (replace all environment variables)
BUILD_START=$(date '+%s')
"${CONTAINER_RUNTIME}" build --force-rm=true --no-cache=true \
"${BUILD_OPTS[@]}" "${PROXY_SETTINGS[@]}" --build-arg DB_EDITION=${EDITION} \
-t "${IMAGE_NAME}" -f "${DOCKERFILE}" . || {
echo ""
echo "ERROR: Oracle Database container image was NOT successfully created."
echo "ERROR: Check the output and correct any reported problems with the build operation."
exit 1
}
# Remove dangling images (intermitten images with tag <none>)
yes | "${CONTAINER_RUNTIME}" image prune > /dev/null
BUILD_END=$(date '+%s')
BUILD_ELAPSED=$(( BUILD_END - BUILD_START ))
echo ""
echo ""
cat << EOF
Oracle Database container image for '${EDITION}' version ${VERSION} is ready to be extended:
--> ${IMAGE_NAME}
Build completed in ${BUILD_ELAPSED} seconds.
EOF
Remark about shared folder:
Mounting shared folders... ubuntu_docker: /vagrant => C:/My/AMIS/env
As you can see in the output from vagrant up via the shared folder, the copied files are now also available from within the Oracle VirtualBox appliance.
Building Oracle Database container image for Oracle Database 12c XE
I used vagrant ssh to connect into the running VM. Next, in order to build the image for Oracle Database 21c XE, I used the following commands on the Linux Command Prompt (similar with what I did for version 18.4.0):
cd /vagrant/oraclexedatabase/dockerfiles ./buildContainerImage.sh -v 21.0.0 -x
Remark:
There are some steps in the process that take a long time, it seems like the process is hanging, but you have to be patience. The whole process can take more than 5 minutes.
With the following output:
WARNING: No swap limit support Checking Docker version. Ignored MD5 checksum. ... Building image 'oracle/database:21.0.0-xe' ... Sending build context to Docker daemon 19.46kB Step 1/8 : FROM oraclelinux:7-slim 7-slim: Pulling from library/oraclelinux 4ade2748332d: Pull complete ... Complete! Loaded plugins: ovl ... Transaction test succeeded Running transaction Installing : file-5.11-37.el7.x86_64 1/2 Installing : oracle-database-xe-21c-1.0-1.x86_64 2/2 [INFO] Executing post installation scripts... ... Successfully built aa73bfbb6c60 Successfully tagged oracle/database:21.0.0-xe Oracle Database container image for 'xe' version 21.0.0 is ready to be extended: --> oracle/database:21.0.0-xe Build completed in 713 seconds. vagrant@ubuntu-focal:/vagrant/oraclexedatabase/dockerfiles$
In order to get a list of all the docker images, I used the following command on the Linux Command Prompt:
docker image ls
With the following output:
REPOSITORY TAG IMAGE ID CREATED SIZE oracle/database 21.0.0-xe aa73bfbb6c60 8 seconds ago 6.53GB oraclelinux 7-slim 1af2d7d8be2c 10 hours ago 132MB hello-world latest feb5d9fea6a5 2 months ago 13.3kB
So, here we can see the image was successfully created.
Running Oracle Database 21c XE in a container
In order to create the container, I used the following command on the Linux Command Prompt (similar with what I did for version 18.4.0):
sudo docker run --name oracle_database_21.0.0-xe \ -p 1521:1521 -p 5500:5500 \ -e ORACLE_PWD=manager \ -e ORACLE_CHARACTERSET=AL32UTF8 \ -v /opt/oracle/oradata:/opt/oracle/oradata \ oracle/database:21.0.0-xe
With the following output:
ORACLE PASSWORD FOR SYS AND SYSTEM: manager Specify a password to be used for database accounts. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9]. Note that the same password will be used for SYS, SYSTEM and PDBADMIN accounts: Confirm the password: Configuring Oracle Listener. Listener configuration succeeded. Configuring Oracle Database XE. Enter SYS user password: ******* Enter SYSTEM user password: ******* Enter PDBADMIN User Password: *********** [FATAL] [DBT-10011] Incorrect ownership/permissions detected for the file (/opt/oracle/product/21c/dbhomeXE/bin/oradism). CAUSE: Following nodes does not have required file ownership/permissions: Node :9a4154bb1e13 PRVG-11960 : Set user ID bit is not set for file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" on node "9a4154bb1e13". PRVG-2031 : Owner of file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" did not match the expected value on node "9a4154bb1e13". [Expected = "root(0)" ; Found = "oracle(54321)"] ACTION: Run the Oracle Home root script as the "root" user to fix the permissions. Database configuration failed. Check logs under '/opt/oracle/cfgtoollogs/dbca'. mkdir: cannot create directory '/opt/oracle/oradata/dbconfig': Permission denied mv: cannot stat '/opt/oracle/product/21c/dbhomeXE/dbs/spfileXE.ora': No such file or directory mv: cannot stat '/opt/oracle/product/21c/dbhomeXE/dbs/orapwXE': No such file or directory mv: cannot move '/opt/oracle/product/21c/dbhomeXE/network/admin/listener.ora' to '/opt/oracle/oradata/dbconfig/XE/': No such file or directory mv: cannot move '/opt/oracle/product/21c/dbhomeXE/network/admin/tnsnames.ora' to '/opt/oracle/oradata/dbconfig/XE/': No such file or directory cp: cannot create regular file '/opt/oracle/oradata/dbconfig/XE/': No such file or directory cp: cannot stat '/opt/oracle/oradata/dbconfig/XE/oratab': No such file or directory ORACLE_HOME = [/home/oracle] ? ORACLE_BASE environment variable is not being set since this information is not available for the current user ID . You can set ORACLE_BASE manually if it is required. Resetting ORACLE_BASE to its previous value or ORACLE_HOME The Oracle base remains unchanged with value /opt/oracle ##################################### ########### E R R O R ############### DATABASE SETUP WAS NOT SUCCESSFUL! Please check output for further info! ########### E R R O R ############### ##################################### The following output is now a tail of the alert.log: tail: cannot open '/opt/oracle/diag/rdbms/*/*/trace/alert*.log' for reading: No such file or directory tail: no files remaining vagrant@ubuntu-focal:/vagrant/oraclexedatabase/dockerfiles$
Remember from my previous article, with Oracle 18.4.0 XE I got the error:
Cannot create directory "/opt/oracle/oradata/XE".
To fix that error, I had to change some write permissions for that directory on the guests operating system in the appliance.
Remember the parameter, I also described in my previous article:
| -v | /opt/oracle/oradata The data volume to use for the database. Has to be writable by the Unix “oracle” (uid: 54321) user inside the container! If omitted the database will not be persisted over container recreation. |
See also (“Cannot create directory” error when using volumes):
This is a Unix filesystem permission issue. Docker by default will map the uid inside the container to the outside world. The uid for the oracle user inside the container is 54321 and therefore all files are created with this uid. If you happen to have your volume pointed at a location outside there container where this uid doesn’t have any permissions for, the container can’t write to it and therefore the database files creation fails.
[https://github.com/oracle/docker-images/blob/main/OracleDatabase/SingleInstance/FAQ.md#cannot-create-directory-error-when-using-volumes]
But this time, with 21c, I got another kind of error!
Investigating the error by looking at the Oracle documentation for version 18.4.0 and 21c
First, I had a look at the Oracle documentation for version 18.4.0 and 21c with regard to configuration, database files and log’s location.

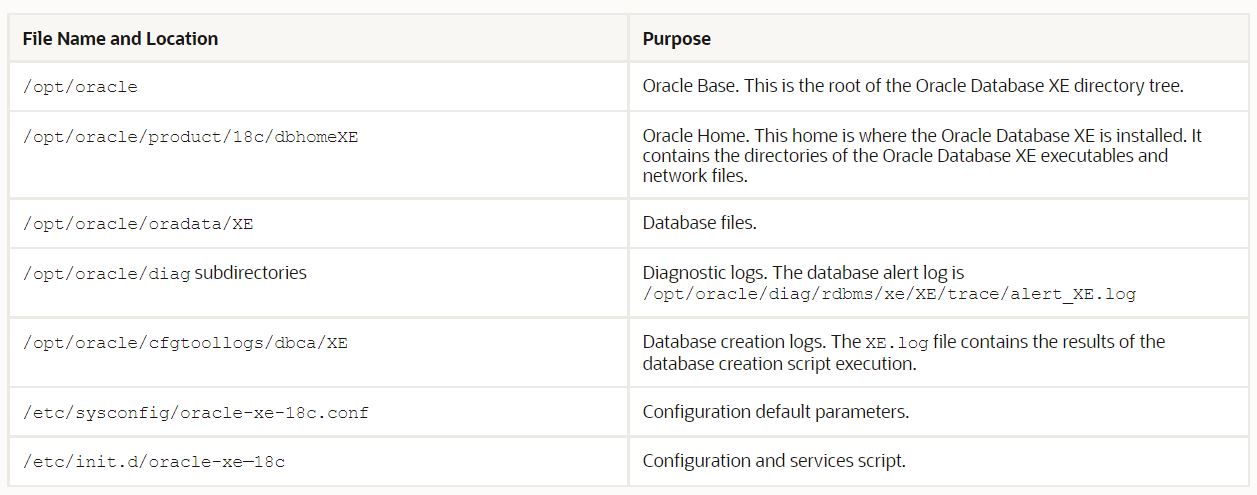

Oracle Database 18.4.0 XE:
[https://docs.oracle.com/en/database/oracle/oracle-database/18/xeinl/procedure-installing-oracle-database-xe.html]

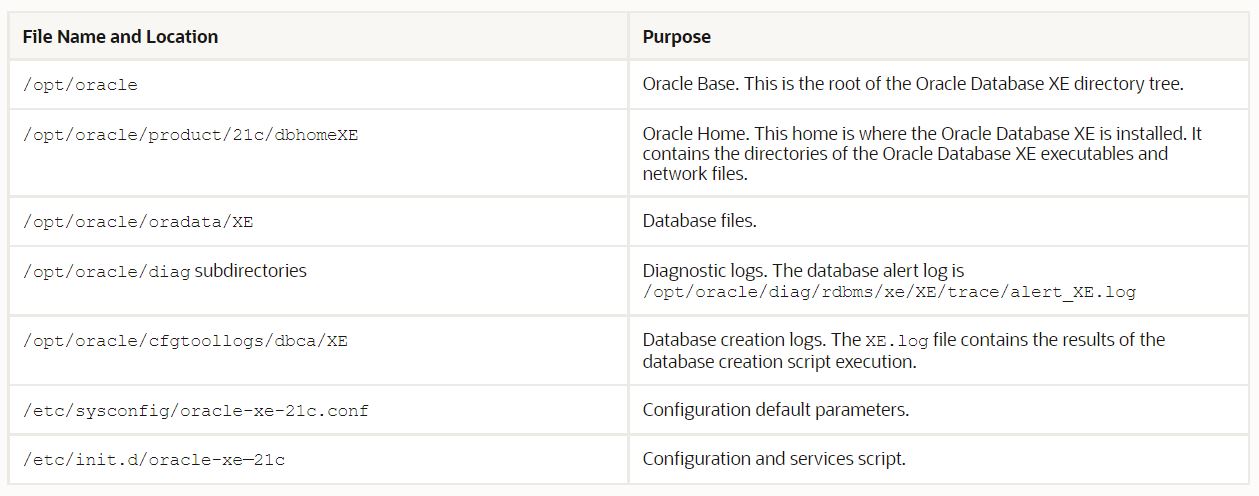

Oracle Database 21c XE:
[https://docs.oracle.com/en/database/oracle/oracle-database/21/xeinl/installing-oracle-database-xe.html]
So, no big differences there between the two versions.
Next step, was to have a look at the Oracle documentation for version 18.4.0 and 21c with regard to installing Oracle Database XE using RPM packages.
Oracle Database 18.4.0 XE:
For installing Oracle Database XE RPM and creating and configuring an Oracle Database these are the steps, described in the installation guide:
- Execute as user root using sudo.
sudo -s
- Install the Database Preinstallation RPM
yum -y localinstall oracle-database-preinstall-18c-1.0-1.el7.x86_64.rpm
- Install the database software
yum -y localinstall oracle-database-xe-18c-1.0-1.x86_64.rpm
The Database Preinstallation RPM automatically creates Oracle installation owner and groups and sets up other kernel configuration settings as required for Oracle installations.
- Run the service configuration script
/etc/init.d/oracle-xe-18c configure
Oracle Database 21c XE:
For installing Oracle Database XE RPM and creating and configuring an Oracle Database these are the steps, described in the installation guide:
- Execute as user root using sudo.
sudo -s
- Install the Database Preinstallation RPM
yum -y localinstall oracle-database-preinstall-21c-1.0-1.el7.x86_64.rpm
- Install the database software
yum -y localinstall oracle-database-xe-21c-1.0-1.ol7.x86_64.rpm
The Database Preinstallation RPM automatically creates Oracle installation owner and groups and sets up other kernel configuration settings as required for Oracle installations.
- Run the service configuration script
/etc/init.d/oracle-xe-21c configure
So again, no big differences there between the two versions.
Then I compared these installation instructions, with the instructions in the file Dockerfile.xe (only showing the last part):
… # Environment variables required for this build (do NOT change) # ------------------------------------------------------------- ENV ORACLE_BASE=/opt/oracle \ ORACLE_HOME=/opt/oracle/product/18c/dbhomeXE \ ORACLE_SID=XE \ INSTALL_FILE_1="https://download.oracle.com/otn-pub/otn_software/db-express/oracle-database-xe-18c-1.0-1.x86_64.rpm" \ RUN_FILE="runOracle.sh" \ PWD_FILE="setPassword.sh" \ CONF_FILE="oracle-xe-18c.conf" \ CHECK_SPACE_FILE="checkSpace.sh" \ CHECK_DB_FILE="checkDBStatus.sh" \ INSTALL_DIR="$HOME/install" \ ORACLE_DOCKER_INSTALL="true" # Use second ENV so that variable get substituted ENV PATH=$ORACLE_HOME/bin:$PATH # Copy binaries # ------------- COPY $CHECK_SPACE_FILE $RUN_FILE $PWD_FILE $CHECK_DB_FILE $CONF_FILE $INSTALL_DIR/ RUN chmod ug+x $INSTALL_DIR/*.sh && \ sync && \ $INSTALL_DIR/$CHECK_SPACE_FILE && \ cd $INSTALL_DIR && \ yum -y install openssl oracle-database-preinstall-18c && \ sed -i -e 's/\(oracle\s\+hard\s\+nofile\)/# \1/' /etc/security/limits.d/oracle-database-preinstall-18c.conf && \ yum -y localinstall $INSTALL_FILE_1 && \ rm -rf /var/cache/yum && \ rm -rf /var/tmp/yum-* && \ mkdir -p $ORACLE_BASE/scripts/setup && \ mkdir $ORACLE_BASE/scripts/startup && \ ln -s $ORACLE_BASE/scripts /docker-entrypoint-initdb.d && \ mkdir -p $ORACLE_BASE/oradata /home/oracle && \ chown -R oracle:oinstall $ORACLE_BASE /home/oracle && \ mv $INSTALL_DIR/$RUN_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$PWD_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$CHECK_DB_FILE $ORACLE_BASE/ && \ mv $INSTALL_DIR/$CONF_FILE /etc/sysconfig/ && \ ln -s $ORACLE_BASE/$PWD_FILE / && \ cd $HOME && \ rm -rf $INSTALL_DIR && \ chmod ug+x $ORACLE_BASE/*.sh HEALTHCHECK --interval=1m --start-period=5m \ CMD "$ORACLE_BASE/$CHECK_DB_FILE" >/dev/null || exit 1 CMD exec $ORACLE_BASE/$RUN_FILE
For my own convenience, I repeat here the RUN part from file Dockerfile.xe , with the actual values:
RUN chmod ug+x $HOME/install/*.sh && \ sync && \ $HOME/install/checkSpace.sh && \ cd $HOME/install && \ yum -y install openssl oracle-database-preinstall-18c && \ sed -i -e 's/\(oracle\s\+hard\s\+nofile\)/# \1/' /etc/security/limits.d/oracle-database-preinstall-18c.conf && \ yum -y localinstall https://download.oracle.com/otn-pub/otn_software/db-express/oracle-database-xe-18c-1.0-1.x86_64.rpm && \ rm -rf /var/cache/yum && \ rm -rf /var/tmp/yum-* && \ mkdir -p /opt/oracle/scripts/setup && \ mkdir /opt/oracle/scripts/startup && \ ln -s /opt/oracle/scripts /docker-entrypoint-initdb.d && \ mkdir -p /opt/oracle/oradata /home/oracle && \ chown -R oracle:oinstall /opt/oracle /home/oracle && \ mv $HOME/install/runOracle.sh /opt/oracle/ && \ mv $HOME/install/setPassword.sh /opt/oracle/ && \ mv $HOME/install/checkDBStatus.sh /opt/oracle/ && \ mv $HOME/install/oracle-xe-18c.conf /etc/sysconfig/ && \ ln -s /opt/oracle/setPassword.sh / && \ cd $HOME && \ rm -rf $HOME/install && \ chmod ug+x /opt/oracle/*.sh HEALTHCHECK --interval=1m --start-period=5m \ CMD "/opt/oracle/checkDBStatus.sh" >/dev/null || exit 1 CMD exec /opt/oracle/runOracle.sh
I also had a look at the content of file runOracle.sh:
… /etc/init.d/oracle-xe-18c start | grep -qc "Oracle Database is not configured" if [ "$?" == "0" ]; then # Create database createDB; # Execute custom provided setup scripts runUserScripts $ORACLE_BASE/scripts/setup fi; …
As you can see, the installation instructions can be found in the file Dockerfile.xe and of file runOracle.sh (see the different colors I used). This gave me some insight in how the image is set up.
Getting a list of files and directories from the running docker container
Because the image for Oracle Database 18.4.0 XE did work successfully, I was curious about its content. In particular the ownership/permissions settings of certain files and directories.
This of course in relation to the error I got, remember:
[FATAL] [DBT-10011] Incorrect ownership/permissions detected for the file (/opt/oracle/product/21c/dbhomeXE/bin/oradism). CAUSE: Following nodes does not have required file ownership/permissions: Node :9a4154bb1e13 PRVG-11960 : Set user ID bit is not set for file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" on node "9a4154bb1e13". PRVG-2031 : Owner of file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" did not match the expected value on node "9a4154bb1e13". [Expected = "root(0)" ; Found = "oracle(54321)"]
For my own convenience, I sum up here, a list of files and directories from the running docker container for the Oracle Database 18.4.0 XE version. I got these previously, by opening a shell into the running docker container:
docker exec -it oracle_database_18.4.0-xe sh
I used the following command on the shell Command Prompt:
sh-4.2# pwd
With the following output:
/
Next, I used the following command on the shell Command Prompt:
sh-4.2# ls -latr
With the following output:
total 76 drwxr-xr-x 2 root root 4096 Apr 11 2018 srv drwxr-xr-x 2 root root 4096 Apr 11 2018 mnt drwxr-xr-x 2 root root 4096 Apr 11 2018 media dr-xr-xr-x 2 root root 4096 Apr 11 2018 boot drwxr-xr-x 1 root root 4096 Nov 24 03:56 usr lrwxrwxrwx 1 root root 8 Nov 24 03:56 sbin -> usr/sbin lrwxrwxrwx 1 root root 9 Nov 24 03:56 lib64 -> usr/lib64 lrwxrwxrwx 1 root root 7 Nov 24 03:56 lib -> usr/lib lrwxrwxrwx 1 root root 7 Nov 24 03:56 bin -> usr/bin drwxr-xr-x 1 root root 4096 Nov 24 03:56 var dr-xr-x--- 1 root root 4096 Nov 28 10:49 root drwxr-xr-x 1 root root 4096 Nov 28 10:50 home drwxr-xr-x 1 root root 4096 Nov 28 10:58 run drwxr-xr-x 1 root root 4096 Nov 28 10:58 opt lrwxrwxrwx 1 root root 26 Nov 28 10:58 setPassword.sh -> /opt/oracle/setPassword.sh lrwxrwxrwx 1 root root 19 Nov 28 10:58 docker-entrypoint-initdb.d -> /opt/oracle/scripts -rwxr-xr-x 1 root root 0 Nov 28 11:17 .dockerenv drwxr-xr-x 1 root root 4096 Nov 28 11:17 ..
Next, I used the following commands on the shell Command Prompt:
sh-4.2# cd home sh-4.2# ls -latr
With the following output:
total 20 drwxr-xr-x 1 root root 4096 Nov 28 10:50 . drwx------ 1 oracle oinstall 4096 Nov 28 10:58 oracle drwxr-xr-x 1 root root 4096 Nov 28 11:17 ..
Next, I used the following commands on the shell Command Prompt:
sh-4.2# cd oracle sh-4.2# ls -latr
With the following output:
total 40 -rw-r--r-- 1 oracle oinstall 172 Nov 23 17:31 .kshrc -rw-r--r-- 1 oracle oinstall 231 Nov 23 17:44 .bashrc -rw-r--r-- 1 oracle oinstall 193 Nov 23 17:44 .bash_profile -rw-r--r-- 1 oracle oinstall 18 Nov 23 17:44 .bash_logout drwxr-xr-x 1 root root 4096 Nov 28 10:50 .. drwxrwx--- 1 oracle oinstall 4096 Nov 28 10:58 .oracle_jre_usage drwx------ 1 oracle oinstall 4096 Nov 28 10:58 .
Next, I used the following commands on the shell Command Prompt:
sh-4.2# cd /opt sh-4.2# ls -latr
With the following output:
total 24 drwxr-xr-x 3 root root 4096 Nov 28 10:58 ORCLfmap drwxr-xr-x 1 root root 4096 Nov 28 10:58 . drwxr-xr-x 1 root root 4096 Nov 28 11:17 .. drwxr-xr-x 1 oracle oinstall 4096 Nov 28 11:18 oracle
Next, I used the following commands on the shell Command Prompt:
sh-4.2# cd oracle sh-4.2# ls -latr
With the following output:
total 76 -rwxrwxrwx 1 root root 781 Nov 7 13:44 setPassword.sh -rwxrwxrwx 1 root root 6676 Nov 7 13:44 runOracle.sh -rwxrwxrwx 1 root root 1137 Nov 7 13:44 checkDBStatus.sh drwxr-xr-x 1 oracle oinstall 4096 Nov 28 10:55 product drwxrwx--- 4 oracle oinstall 4096 Nov 28 10:58 oraInventory drwxrwxr-x 1 oracle oinstall 4096 Nov 28 10:58 diag drwxrwx--- 2 oracle oinstall 4096 Nov 28 10:58 checkpoints drwxr-xr-x 1 root root 4096 Nov 28 10:58 .. drwxr-xr-x 4 oracle oinstall 4096 Nov 28 10:58 scripts drwxr-x--- 3 oracle oinstall 4096 Nov 28 11:18 admin drwxr-xr-x 1 oracle oinstall 4096 Nov 28 11:18 . drwxr-x--- 3 oracle oinstall 4096 Nov 28 11:20 audit drwxr-xr-x 5 oracle oinstall 4096 Nov 28 11:20 cfgtoollogs drwxr-xrwx 4 root root 4096 Nov 28 11:26 oradata
Next, I used the following commands on the shell Command Prompt:
sh-4.2# cd cfgtoollogs sh-4.2# ls -latr
With the following output:
total 24 drwxr-xr-x 2 oracle oinstall 4096 Nov 28 11:17 netca drwxr-x--- 3 oracle oinstall 4096 Nov 28 11:18 dbca drwxr-xr-x 1 oracle oinstall 4096 Nov 28 11:18 .. drwxr-xr-x 5 oracle oinstall 4096 Nov 28 11:20 . drwxr-x--- 4 oracle oinstall 4096 Nov 28 11:23 sqlpatch
Next, I used the following commands on the shell Command Prompt:
sh-4.2# cd /opt/oracle/product sh-4.2# ls -latr
With the following output:
total 24 drwxrwxr-x 1 oracle oinstall 4096 Nov 28 10:55 18c drwxr-xr-x 1 oracle oinstall 4096 Nov 28 10:55 . drwxr-xr-x 1 oracle oinstall 4096 Nov 28 11:18 ..
Next, I used the following commands on the shell Command Prompt:
sh-4.2# cd 18c sh-4.2# ls -latr
With the following output:
total 24 drwxr-xr-x 1 oracle oinstall 4096 Nov 28 10:55 .. drwxrwxr-x 1 oracle oinstall 4096 Nov 28 10:55 . drwxrwxr-x 1 oracle oinstall 4096 Nov 28 11:30 dbhomeXE
Next, I used the following commands on the shell Command Prompt:
sh-4.2# cd dbhomeXE sh-4.2# ls -latr
With the following output:
total 316 -rw-r--r-- 1 oracle oinstall 852 Aug 18 2015 env.ora -rw-r--r-- 1 oracle oinstall 2927 Oct 14 2016 schagent.conf -rwxr-x--- 1 oracle oinstall 1783 Mar 8 2017 runInstaller -rwx------ 1 oracle oinstall 589 Oct 18 2018 root.sh -r-xr-xr-x 1 oracle oinstall 5780 Nov 21 2019 LICENSE drwxrwxr-x 1 oracle oinstall 4096 Nov 28 10:55 .. drwxr-xr-x 2 oracle oinstall 4096 Nov 28 10:55 QOpatch drwxr-xr-x 12 oracle oinstall 4096 Nov 28 10:55 OPatch drwxr-xr-x 2 oracle oinstall 4096 Nov 28 10:55 addnode drwxr-xr-x 5 oracle oinstall 4096 Nov 28 10:55 R drwxr-xr-x 1 oracle oinstall 4096 Nov 28 10:55 assistants drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:56 css drwxr-xr-x 6 oracle oinstall 4096 Nov 28 10:56 crs drwxr-xr-x 4 oracle oinstall 4096 Nov 28 10:56 clone drwxr-xr-x 2 oracle oinstall 4096 Nov 28 10:56 bin drwxr-xr-x 11 oracle oinstall 4096 Nov 28 10:56 ctx drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:56 diagnostics drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:56 demo drwxr-xr-x 5 oracle oinstall 4096 Nov 28 10:56 deinstall drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:56 dbjava drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:56 data drwxr-xr-x 7 oracle oinstall 4096 Nov 28 10:56 cv drwxr-xr-x 5 oracle oinstall 4096 Nov 28 10:56 hs drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:56 has drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:56 dv drwxr-xr-x 4 oracle oinstall 4096 Nov 28 10:56 drdaas drwxr-xr-x 13 oracle oinstall 4096 Nov 28 10:56 dmu drwxr-xr-x 2 oracle oinstall 4096 Nov 28 10:56 instantclient drwxr-x--- 12 oracle oinstall 4096 Nov 28 10:56 inventory drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:57 jdbc drwxr-xr-x 8 oracle oinstall 4096 Nov 28 10:57 javavm drwxr-xr-x 7 oracle oinstall 4096 Nov 28 10:57 jdk drwxr-xr-x 10 oracle oinstall 4096 Nov 28 10:57 ldap drwxr-xr-x 2 oracle oinstall 4096 Nov 28 10:57 jlib drwxr-xr-x 3 oracle oinstall 12288 Nov 28 10:58 lib drwxr-xr-x 9 oracle oinstall 4096 Nov 28 10:58 md drwxr-xr-x 4 oracle oinstall 4096 Nov 28 10:58 mgw drwxr-xr-x 1 oracle oinstall 4096 Nov 28 10:58 network drwxr-xr-x 8 oracle oinstall 4096 Nov 28 10:58 odbc drwxr-xr-x 5 oracle oinstall 4096 Nov 28 10:58 nls drwxr-xr-x 4 oracle oinstall 4096 Nov 28 10:58 oracore drwxr-xr-x 7 oracle oinstall 4096 Nov 28 10:58 opmn drwxr-xr-x 5 oracle oinstall 4096 Nov 28 10:58 olap drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:58 oss drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:58 ordim drwxr-xr-x 7 oracle oinstall 4096 Nov 28 10:58 ord drwxr-xr-x 4 oracle oinstall 4096 Nov 28 10:58 owm drwxr-xr-x 8 oracle oinstall 4096 Nov 28 10:58 oui drwxr-xr-x 4 oracle oinstall 4096 Nov 28 10:58 racg drwxr-xr-x 6 oracle oinstall 4096 Nov 28 10:58 precomp drwxr-xr-x 6 oracle oinstall 4096 Nov 28 10:58 plsql drwxr-xr-x 5 oracle oinstall 4096 Nov 28 10:58 perl drwxr-xr-x 1 oracle oinstall 4096 Nov 28 10:58 rdbms drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:58 relnotes drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:58 ucp drwxr-xr-x 6 oracle oinstall 4096 Nov 28 10:58 srvm drwxr-xr-x 6 oracle oinstall 4096 Nov 28 10:58 sqlplus drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:58 sqlpatch drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:58 sqlj drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:58 slax drwxr-xr-x 5 oracle oinstall 4096 Nov 28 10:58 sdk drwxr-x--- 7 oracle oinstall 4096 Nov 28 10:58 xdk drwxr-xr-x 3 oracle oinstall 4096 Nov 28 10:58 wwg drwxr-xr-x 2 oracle oinstall 4096 Nov 28 10:58 utl drwxr-xr-x 4 oracle oinstall 4096 Nov 28 10:58 usm -rw-r----- 1 oracle oinstall 130 Nov 28 10:58 oraInst.loc drwxrwxr-x 9 oracle oinstall 4096 Nov 28 10:58 install drwxrwx--- 3 oracle oinstall 4096 Nov 28 10:58 cfgtoollogs drwxr-xr-x 1 oracle oinstall 4096 Nov 28 11:18 log drwxr-xr-x 1 oracle oinstall 4096 Nov 28 11:30 dbs drwxrwxr-x 1 oracle oinstall 4096 Nov 28 11:30 .
Next, I used the following commands on the shell Command Prompt:
sh-4.2# cd bin sh-4.2# ls -latr
With the following output:
total 644220 -rwxr-xr-x 1 oracle oinstall 153 Nov 7 1997 echodo -rwxr-xr-x 1 oracle oinstall 2790 Jan 1 2000 orald -rwxr-xr-x 1 oracle oinstall 6823 Jan 1 2000 oraenv -rw-r--r-- 1 oracle oinstall 5003 Jan 1 2000 oerr.pl -rwxr-xr-x 1 oracle oinstall 703 Jan 1 2000 oerr -rwxr-xr-x 1 oracle oinstall 2396 Jan 1 2000 gensyslib -rwxr-x--- 1 oracle oinstall 15732 Jan 1 2000 dbstart -rwxr-x--- 1 oracle oinstall 8142 Jan 1 2000 dbshut -rwxr-xr-x 1 oracle oinstall 2445 Jan 1 2000 dbhome -rwxr-xr-x 1 oracle oinstall 6404 Jan 1 2000 coraenv -rwxr-xr-x 1 oracle oinstall 3261 May 4 2000 symfind -rwxr-x--- 1 oracle oinstall 48 Sep 25 2000 oraxml -rwxr-x--- 1 oracle oinstall 48 Sep 25 2000 oraxsl -rwxr-x--- 1 oracle oinstall 46 Nov 7 2000 oracg -rwxr-x--- 1 oracle oinstall 45 Sep 26 2001 transx -rwxr-x--- 1 oracle oinstall 59 Nov 25 2002 orapipe -rwxr-x--- 1 oracle oinstall 44 Dec 5 2002 orajaxb -rwxr-xr-x 1 oracle oinstall 2989 Aug 20 2012 crsdiag.pl -rwxr-xr-x 1 oracle oinstall 1398 Sep 13 2012 cluvfyrac.sh -rwxr-xr-x 1 oracle oinstall 1398 Sep 13 2012 cluvfy -rwxr-x--- 1 oracle oinstall 6537 Sep 28 2012 emdwgrd -rwxr-xr-x 1 oracle oinstall 0 Aug 13 2014 tnnfg -rwxr-xr-x 1 oracle oinstall 1635 Dec 5 2014 linkshlib -rwxr-xr-x 1 oracle oinstall 230027 Jun 15 2016 zip -rwxr-xr-x 1 oracle oinstall 945 Jun 20 2016 acfsroot -rwxr-xr-x 1 oracle oinstall 940 Jun 20 2016 okaroot -rwxr-xr-x 1 oracle oinstall 1000 Jun 20 2016 afdroot -rwxr-xr-x 1 oracle oinstall 1007 Jun 20 2016 olfsroot -rwxr-xr-x 1 oracle oinstall 1001 Jun 20 2016 olfscmd -rwxr-xr-x 1 oracle oinstall 727 Sep 8 2016 acfsremote -rwxr-xr-x 1 oracle oinstall 7000 Nov 18 2016 okcreate -rwxr-xr-x 1 oracle oinstall 3078 Mar 28 2017 afddriverstate -rwxr-xr-x 1 oracle oinstall 2854 Mar 28 2017 afdtool -rw-r--r-- 1 oracle oinstall 5978 Jun 21 2017 ore_srcexport.pl -rw-r--r-- 1 oracle oinstall 4331 Jun 21 2017 ore_dsiimport.pl -rw-r--r-- 1 oracle oinstall 4799 Jun 21 2017 ore_dsiexport.pl -rw-r--r-- 1 oracle oinstall 7472 Jun 21 2017 ore_destimport.pl -rwxr-x--- 1 oracle oinstall 3120 Jul 7 2017 commonSetup.sh -rw-r----- 1 oracle oinstall 999 Aug 23 2017 dbSetup.pl -rwxr-x--- 1 oracle oinstall 65179 Aug 24 2017 emdwgrd.pl -rw-r--r-- 1 oracle oinstall 9125 Aug 26 2017 aqxmlctl.pl -rwxr-x--- 1 oracle oinstall 768 Aug 26 2017 xsql -rwx------ 1 oracle oinstall 64008 Sep 7 2017 xmlwf -rwxr-xr-x 1 oracle oinstall 10074 Sep 13 2017 genorasdksh -rwxr-xr-x 1 oracle oinstall 6149 Sep 13 2017 genclntst -rwxr-xr-x 1 oracle oinstall 14605 Sep 13 2017 genclntsh -rwxr-xr-x 1 oracle oinstall 5914 Sep 13 2017 genagtsh -rwx------ 1 oracle oinstall 2139 Sep 19 2017 rootPreRequired.sh -rwxr-xr-x 1 oracle oinstall 6534 Sep 27 2017 relink -rwxr-x--- 1 oracle oinstall 5385 Oct 2 2017 patchgen -rwxr-xr-x 1 oracle oinstall 4764 Oct 10 2017 genoccish -rwxr-xr-x 1 oracle oinstall 2297591 Nov 30 2017 lxegen -rwxr-xr-x 1 oracle oinstall 1840940 Nov 30 2017 lmsgen -rwxr-xr-x 1 oracle oinstall 7828022 Nov 30 2017 lxinst -rwxr-xr-x 1 oracle oinstall 1776251 Nov 30 2017 lxchknlb -rwxr-xr-x 1 oracle oinstall 3104400 Nov 30 2017 lcsscan -rwxr-xr-x 1 oracle oinstall 6093 Dec 1 2017 owm -rwxr-xr-x 1 oracle oinstall 4619 Dec 1 2017 orapki -rwxr-xr-x 1 oracle oinstall 4587 Dec 1 2017 mkstore -rwxr-x--- 1 oracle oinstall 6789 Dec 1 2017 asmcmd -rwxr-xr-x 1 oracle oinstall 5670 May 2 2018 rhpctl -rwxr-xr-x 1 oracle oinstall 76759 Jul 13 2018 asmcmdcore -rwxr-xr-x 1 oracle oinstall 7605 Aug 9 2018 gennttab -rwxr-xr-x 1 oracle oinstall 4852 Aug 9 2018 gennfgt -rwxr-xr-x 1 oracle oinstall 13488 Aug 9 2018 adapters -rw------- 1 oracle oinstall 95502 Aug 9 2018 oklist0 -rw------- 1 oracle oinstall 84092 Aug 9 2018 okinit0 -rw------- 1 oracle oinstall 81017 Aug 9 2018 okdstry0 -rwxr-x--- 1 oracle oinstall 138707 Aug 21 2018 xml -rwxr-x--- 1 oracle oinstall 185969 Aug 21 2018 xmlcg -rwxr-x--- 1 oracle oinstall 32972 Aug 21 2018 schema -rwxr-x--- 1 oracle oinstall 38586 Aug 21 2018 xvm -rwxr-x--- 1 oracle oinstall 52099 Aug 21 2018 xsl -rwxr-x--- 1 oracle oinstall 27619 Aug 21 2018 xmlpatch -rwxr-x--- 1 oracle oinstall 27744 Aug 21 2018 xmldiff -rwxr-xr-x 1 oracle oinstall 58238 Sep 5 2018 lsnodes -rwxr-xr-x 1 oracle oinstall 88939994 Sep 12 2018 afdboot -rwxr-xr-x 1 oracle oinstall 278282 Sep 12 2018 afdtool.bin -rwxr-xr-x 1 oracle oinstall 33548 Sep 12 2018 olfsctl -rwxr-xr-x 1 oracle oinstall 29760 Oct 18 2018 rtsora -rwxr-x--x 1 oracle oinstall 25110 Oct 18 2018 osh -rwxr-x--x 1 oracle oinstall 24536 Oct 18 2018 oraversion -rwxr-x--- 1 oracle oinstall 53394 Oct 18 2018 oraping -rwxr-xr-x 1 oracle oinstall 181040 Oct 18 2018 oradnfs -rwxr-x--- 1 oracle oinstall 98250 Oct 18 2018 oradism -rwxr-x--- 1 oracle oinstall 1875437 Oct 18 2018 orabasehome -rwxr-x--- 1 oracle oinstall 1875447 Oct 18 2018 orabaseconfig -rw-r--r-- 1 oracle oinstall 187392 Oct 18 2018 opwdintg.exe -rwxr-x--- 1 oracle oinstall 35759 Oct 18 2018 mtactl -rwxr-xr-x 1 oracle oinstall 1177288 Oct 18 2018 genksms -rwxr-x--- 1 oracle oinstall 1748888 Oct 18 2018 fmputlhp -rwxr-x--- 1 oracle oinstall 2020196 Oct 18 2018 fmputl -rwxr-xr-x 1 oracle oinstall 2115753 Oct 18 2018 diskmon.bin -rwxr-x--- 1 oracle oinstall 3136 Oct 18 2018 dbupgrade -rw-r--r-- 1 oracle oinstall 5297 Oct 18 2018 dbgeu_run_action.pl -rwxr-x--x 1 oracle oinstall 1388939 Oct 18 2018 dbfs_client -rw-r--r-- 1 oracle oinstall 128588 Oct 18 2018 bdschecksw -rw-r--r-- 1 oracle oinstall 43394 Oct 18 2018 CommonSetup.pm -rwxr-xr-x 1 oracle oinstall 6569249 Oct 18 2018 orabase -rwxr-xr-x 1 oracle oinstall 1573 Oct 18 2018 olsoidsync -rwxr-xr-x 1 oracle oinstall 1176 Oct 18 2018 olsadmintool -rw-r--r-- 1 oracle oinstall 909 Oct 18 2018 ORE -rwxr-xr-x 1 oracle oinstall 4098 Oct 18 2018 umu -rwxr-xr-x 1 oracle oinstall 1352 Oct 18 2018 statusnc -rwxr-xr-x 1 oracle oinstall 943 Oct 18 2018 ott -rwxr-xr-x 1 oracle oinstall 1320 Oct 18 2018 ojvmtc -rwxr-xr-x 1 oracle oinstall 1436 Oct 18 2018 ojvmjava -rwxr-xr-x 1 oracle oinstall 1351 Oct 18 2018 ncomp -rwxr-xr-x 1 oracle oinstall 2460 Oct 18 2018 loadjava -rwxr-xr-x 1 oracle oinstall 2351 Oct 18 2018 eusm -rwxr-xr-x 1 oracle oinstall 1466 Oct 18 2018 dropjava -rwxr-xr-x 1 oracle oinstall 1516 Oct 18 2018 deploync -rwxr-xr-x 1 oracle oinstall 3007 Oct 18 2018 trcasst -rwxr-xr-x 1 oracle oinstall 11446 Oct 18 2018 srvctl -rwxr-x--- 1 oracle oinstall 4624 Oct 18 2018 roohctl -rwxr-x--- 1 oracle oinstall 7074 Oct 18 2018 rconfig -rw-r----- 1 oracle oinstall 3890 Oct 18 2018 platform_common -rwxr-xr-x 1 oracle oinstall 3145 Oct 18 2018 oidprovtool -rwxr-xr-x 1 oracle oinstall 7705 Oct 18 2018 netmgr -rwxr-xr-x 1 oracle oinstall 2910 Oct 18 2018 ldifmigrator -rwxr-xr-x 1 oracle oinstall 7472 Oct 18 2018 diagsetup -rwxr-xr-x 1 oracle oinstall 2957 Oct 18 2018 bndlchk -rwxr-x--x 1 oracle oinstall 1557 Oct 18 2018 aqxmlctl -rwxr-x--- 1 oracle oinstall 107 Oct 18 2018 netca_deinst.sh -rwxr-x--- 1 oracle oinstall 6924 Oct 18 2018 netca -rwxr-x--- 1 oracle oinstall 10508 Oct 18 2018 dbua -rwxr-xr-x 1 oracle oinstall 2080 Oct 18 2018 trcsess -rwxr-xr-x 1 oracle oinstall 4749 Oct 18 2018 srvconfig -rwxr-xr-x 1 oracle oinstall 2847 Oct 18 2018 schemasync -rwxr-xr-x 1 oracle oinstall 1781 Oct 18 2018 schagent -rwxr-xr-x 1 oracle oinstall 2411 Oct 18 2018 oradnfs_run.sh -rwxr-xr-x 1 oracle oinstall 2173 Oct 18 2018 oidca -rwxr-xr-x 1 oracle oinstall 1304 Oct 18 2018 odisrvreg -rwxr-xr-x 1 oracle oinstall 484 Oct 18 2018 kfod -rwxr-x--- 1 oracle oinstall 340 Oct 18 2018 extusrupgrade -rw-r----- 1 oracle oinstall 7140 Oct 18 2018 chopt.pl -rw-r----- 1 oracle oinstall 2293 Oct 18 2018 chopt.ini -rwxr-x--- 1 oracle oinstall 284 Oct 18 2018 chopt -rwxr-xr-x 1 oracle oinstall 10847196 Oct 18 2018 proc -rwxr-xr-x 1 oracle oinstall 10495520 Oct 18 2018 procob -rwxr-x--x 1 oracle oinstall 763051 Oct 18 2018 dg4odbc -rwxr-x--x 1 oracle oinstall 374426 Oct 18 2018 ctxload -rwxr-x--x 1 oracle oinstall 784787 Oct 18 2018 ctxlc -rwxr-x--x 1 oracle oinstall 9813247 Oct 18 2018 wrap -rwxr-x--x 1 oracle oinstall 104939 Oct 18 2018 dbv -rwxr-x--x 1 oracle oinstall 879453 Oct 18 2018 ctxkbtc -rwxr-x--x 1 oracle oinstall 35328 Oct 18 2018 tstshm -rwxr-x--x 1 oracle oinstall 109163 Oct 18 2018 orapwd -rwxr-x--x 1 oracle oinstall 25537 Oct 18 2018 maxmem -rwxr-x--x 1 oracle oinstall 25129 Oct 18 2018 dbfsize -rwxr-x--x 1 oracle oinstall 1125104 Oct 18 2018 mapsga -rwxr-x--x 1 oracle oinstall 1125569 Oct 18 2018 dumpsga -rwxr-x--x 1 oracle oinstall 24843 Oct 18 2018 cursize -rwxr-x--x 1 oracle oinstall 234706 Oct 18 2018 agtctl -rwxr-x--x 1 oracle oinstall 149361 Oct 18 2018 sbttest -rwxr-x--x 1 oracle oinstall 221644 Oct 18 2018 hsots -rwxr-x--x 1 oracle oinstall 221481 Oct 18 2018 hsdepxa -rwxr-x--x 1 oracle oinstall 352041 Oct 18 2018 hsalloci -rwxr-x--x 1 oracle oinstall 103141 Oct 18 2018 nid -rwxr-x--x 1 oracle oinstall 145012 Oct 18 2018 kfod.bin -rwxr-x--- 1 oracle oinstall 2378078 Oct 18 2018 jssu -rwx------ 1 oracle oinstall 2592744 Oct 18 2018 extjobo -rwxr-x--- 1 oracle oinstall 2592744 Oct 18 2018 extjob -rwxr-x--x 1 oracle oinstall 36065 Oct 18 2018 amdu -rwxr-x--x 1 oracle oinstall 90280 Oct 18 2018 mkpatch -rwxr-x--x 1 oracle oinstall 98474 Oct 18 2018 kfed -rwxr-x--x 1 oracle oinstall 78032 Oct 18 2018 renamedg -rwxr-x--x 1 oracle oinstall 3811236 Oct 18 2018 setasmgid -rwxr-xr-x 1 oracle oinstall 27334 Oct 18 2018 osdbagrp -rwxr-x--x 1 oracle oinstall 7960085 Oct 18 2018 orion -rwxr-x--x 1 oracle oinstall 130180 Oct 18 2018 trcldr -rwxr-x--x 1 oracle oinstall 25347 Oct 18 2018 skgxpinfo -rwxr-x--x 1 oracle oinstall 87903 Oct 18 2018 oputil -rwxr-x--x 1 oracle oinstall 36201 Oct 18 2018 tnsping -rwxr-xr-x 1 oracle oinstall 22891 Oct 18 2018 sqlplus -rwxr-xr-x 1 oracle oinstall 1182513 Oct 18 2018 ldapadd -rwxr-xr-x 1 oracle oinstall 1113412 Oct 18 2018 ldapsearch -rwxr-xr-x 1 oracle oinstall 1182513 Oct 18 2018 ldapmodify -rwxr-xr-x 1 oracle oinstall 1079983 Oct 18 2018 ldapmoddn -rwxr-xr-x 1 oracle oinstall 1080327 Oct 18 2018 ldapdelete -rwxr-xr-x 1 oracle oinstall 1080082 Oct 18 2018 ldapcompare -rwxr-xr-x 1 oracle oinstall 1200543 Oct 18 2018 ldapmodifymt -rwxr-xr-x 1 oracle oinstall 1200543 Oct 18 2018 ldapaddmt -rwxr-xr-x 1 oracle oinstall 1160971 Oct 18 2018 dsml2ldif -rwxr-xr-x 1 oracle oinstall 28102 Oct 18 2018 rawutl -rwxr-xr-x 1 oracle oinstall 95502 Oct 18 2018 oklist -rwxr-x--x 1 oracle oinstall 532199 Oct 18 2018 imp -rwxr-x--x 1 oracle oinstall 137458 Oct 18 2018 tkprof -rwxr-x--x 1 oracle oinstall 1706676 Oct 18 2018 sqlldr -rwxr-x--x 1 oracle oinstall 144639 Oct 18 2018 plshprof -rwxr-x--x 1 oracle oinstall 1066166 Oct 18 2018 exp -rwxr-x--x 1 oracle oinstall 38944 Oct 18 2018 loadpsp -rwxr-x--x 1 oracle oinstall 72289 Oct 18 2018 kgmgr -rwxr-x--x 1 oracle oinstall 240726 Oct 18 2018 impdp -rwxr-x--x 1 oracle oinstall 228704 Oct 18 2018 expdp -rwxr-x--x 1 oracle oinstall 787677 Oct 18 2018 wrc -rwxr-x--x 1 oracle oinstall 57556 Oct 18 2018 genezi -rwxr-x--x 1 oracle oinstall 966520 Oct 18 2018 dgmgrl -rwxr-x--x 1 oracle oinstall 42873 Oct 18 2018 dg4pwd -rwxr-x--x 1 oracle oinstall 242041 Oct 18 2018 uidrvci -rwxr-x--x 1 oracle oinstall 35373 Oct 18 2018 sysresv -rwxr-x--x 1 oracle oinstall 206751 Oct 18 2018 extproc -rwxr-x--x 1 oracle oinstall 40617 Oct 18 2018 adrci -rwxr-x--x 1 oracle oinstall 1093198 Oct 18 2018 tnslsnr -rwxr-xr-x 1 oracle oinstall 84124 Oct 18 2018 okinit -rwxr-xr-x 1 oracle oinstall 81049 Oct 18 2018 okdstry -rwxr-x--x 1 oracle oinstall 178299 Oct 18 2018 lsnrctl -rwxr-x--x 1 oracle oinstall 50154 Oct 18 2018 trcroute -rwxr-x--x 1 oracle oinstall 13882067 Oct 18 2018 rman -rwxr-x--x 1 oracle oinstall 324252 Oct 18 2018 drdalsnr -rwxr-x--x 1 oracle oinstall 254988 Oct 18 2018 drdactl -rwxr-x--x 1 oracle oinstall 2213143 Oct 18 2018 drdaproc -rwxr-xr-x 1 oracle oinstall 14544 Oct 18 2018 onsctl -rwxr-xr-x 1 oracle oinstall 1080090 Oct 18 2018 ldapbind -rwxr-x--- 1 oracle oinstall 5555 Oct 18 2018 emca -rwxr-x--- 1 oracle oinstall 7479 Oct 18 2018 dbca -rwxr-x--x 1 oracle oinstall 437755981 Oct 18 2018 oracle lrwxrwxrwx 1 oracle oinstall 24 Nov 28 10:55 lbuilder -> ../nls/lbuilder/lbuilder drwxr-xr-x 2 oracle oinstall 4096 Nov 28 10:56 . drwxrwxr-x 1 oracle oinstall 4096 Nov 28 11:30 ..
As you can see here oradism is owned by user oracle (like in version 21c, according to the error):
-rwxr-x--- 1 oracle oinstall 98250 Oct 18 2018 oradism
So, in version 18.4.0 this was apparently not a problem.
Investigating the error further
So, let’s have a look at the error again:
[FATAL] [DBT-10011] Incorrect ownership/permissions detected for the file (/opt/oracle/product/21c/dbhomeXE/bin/oradism). CAUSE: Following nodes does not have required file ownership/permissions: Node :9a4154bb1e13 PRVG-11960 : Set user ID bit is not set for file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" on node "9a4154bb1e13". PRVG-2031 : Owner of file "/opt/oracle/product/21c/dbhomeXE/bin/oradism" did not match the expected value on node "9a4154bb1e13". [Expected = "root(0)" ; Found = "oracle(54321)"]
There is a problem with the file:
/opt/oracle/product/21c/dbhomeXE/bin/oradism
with regard to file ownership/permissions.
Apparently, root(0) was expected, but oracle(54321) was found.
I remembered reading about the Database Preinstallation RPM which automatically creates Oracle installation owner and groups (see further above). So, I focused on that aspect.
When installed, the Oracle Database Preinstallation RPM does the following:
Creates an oracle user, and creates the oraInventory (oinstall) and OSDBA (dba) groups for that user
[https://docs.oracle.com/en/database/oracle/oracle-database/21/ladbi/about-the-oracle-preinstallation-rpm.html]
The RUN part from file Dockerfile.xe , contains this line:
chown -R oracle:oinstall /opt/oracle /home/oracle && \
Remark about chown:
chown [OPTION]... [OWNER][:[GROUP]] FILE...
Change the owner and/or group of each FILE to OWNER and/or GROUP.
OPTIONS:
-R, –recursive
operate on files and directories recursively
[man chown]
So, what we see here is that via the command above, the directories /opt/oracle and /home/oracle are owned by oracle and belong to group oinstall.
The RUN part from file Dockerfile.xe , contains this line:
chmod ug+x /opt/oracle/*.sh
Remark about chmod:
chmod [OPTION]... MODE[,MODE]... FILE...
Change file mode bits
Chmod changes the file mode bits of each given file according to mode, which can be either a symbolic representation of changes to make, or an octal number representing the bit pattern for the new mode bits.
The format of a symbolic mode is [ugoa…][[-+=][perms…]…], where perms is either zero or more letters from the set rwxXst, or a single letter from the set ugo. Multiple symbolic modes can be given, separated by commas.
A combination of the letters ugoa controls which users’ access to the file will be changed: the user who owns it (u), other users in the file’s group (g), other users not in the file’s group (o), or all users (a). If none of these are given, the effect is as if (a) were given, but bits that are set in the umask are not affected.
The operator + causes the selected file mode bits to be added to the existing file mode bits of each file; – causes them to be removed; and = causes them to be added and causes unmentioned bits to be removed except that a directory’s unmentioned set user and group ID bits are not affected.
The letters rwxXst select file mode bits for the affected users: read (r), write (w), execute (or search for directories) (x), execute/search only if the file is a directory or already has execute permission for some user (X), set user or group ID on execution (s), restricted deletion flag or sticky bit (t). Instead of one or more of these letters, you can specify exactly one of the letters ugo: the permissions granted to the user who owns the file (u), the permissions granted to other users who are members of the file’s group (g), and the permissions granted to users that are in neither of the two preceding categories (o).
So, what we see here is that via the command above, for every shell script (*.sh) in the directory /opt/oracle the user who owns it (u), and other users in the file’s group (g) can execute (x) that script.
So, this accounts for:
Incorrect ownership/permissions detected for the file /opt/oracle/product/21c/dbhomeXE/bin/oradism
Again, as mentioned above, root(0) was expected, but oracle(54321) was found.
So, what to do now?
More about the way forward, you can read in my next article. But I can already say that I got it working.
