Use the inbound REST adapter of StreamExplorer to consume events from HTTP POST requests

StreamExplorer is a fairly recent product from Oracle – a business user friendly layer around Oracle Event Processor. In various previous articles, I have discussed StreamExplorer. I have demonstrated how SX can consume events from JMS, EDN and from CSV files. This article shows how a stream in StreamExplorer can expose a REST service to which events can be pushed.


In this case, we will look at a movie theater. More specifically, we will monitor the visitors entering and leaving the various rooms in the theater so we keep track of the number of people currently present in each room. When rooms are almost full, we may have to stop selling tickets or perhaps open up an additional room showing the same movie. When a room is [almost] empty, perhaps we should cancel the show altogether. When people keep coming and going, there may be a problem we should attend to.

In this case, the events are received by Stream Explorer in the form of JSON messages posted to a REST service. We use a SoapUI test case with requests to send in these events. The test request called aprtyOf3InRoom1, isshown in the figure:


The request is configured to be sent to the endpoint http://localhost:9002. That is the endpoint for Stream Explorer (and OEP and more specifically the Jetty server running the OEP domain on top of which Stream Explorer was applied). The (REST) Resource is specified as /cinema. Together this means that this request is sent as a POST request to the end point http://localhost:9002/cinema. So that is where our StreamExplorer application will have to consume the message.

The message itself has a JSON payload with two simple properties: room (to identify a room in the movie theater) and partySize (to stipulate the number of people involved in an observation). Note: the number of people is positive when a party enters the room and negative when it leaves the room.

The TestSuite TestSuiteCinema contains a single test case with a number of steps that simulate events on a slow night in the movie theater.

Create a Stream and a First Exploration for Handling Cinema Events

Create a new Stream. The name is not crucial. The Source Type should be REST.



Specify the Context Path as /cinema.


Define the REST Shape. Set the name to CinemaEntryOrExitEvent. Define two properties: room – of type String – and partySize – of type Integer.


Click on Create to create the Stream.

The Exploration wizard opens next. Set a name for the exploration – for example RoomOccupancy. You may provide a description as well.


Click on Create.

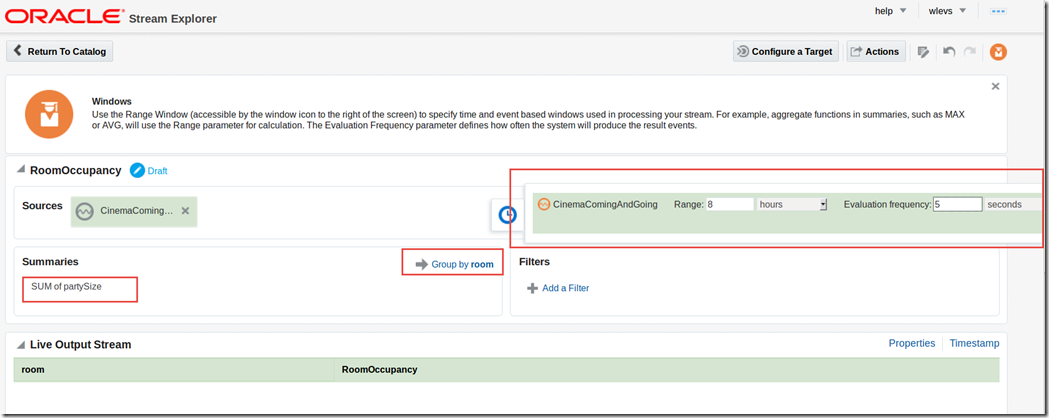

Configure the Exploration for example like this:


The events are aggregated grouped by room. The aggregation to be calculated is a sum over the partySize. This should produce the total number of people in every room. In this case, I have also chosen to have the summary calculated once every 5 seconds and to include in the results only the events from the last 8 hours (which is quite arbitrary).

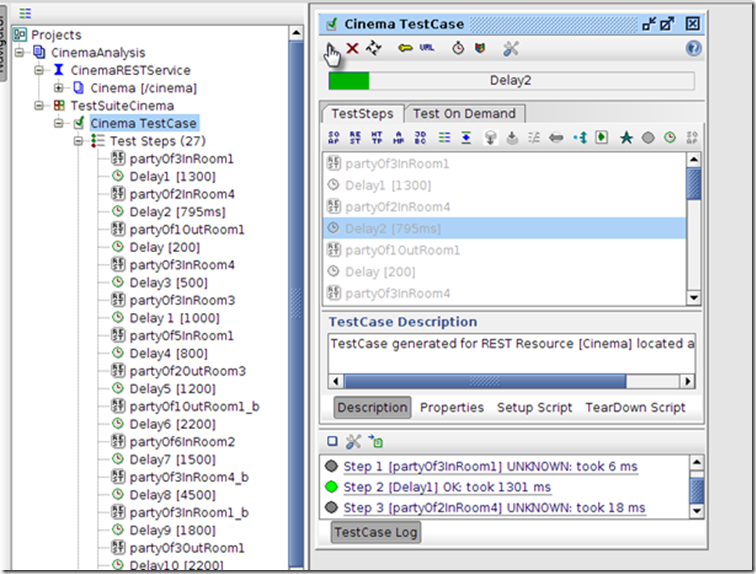

At this point I create a test case in SoapUI for the REST service – and run it:

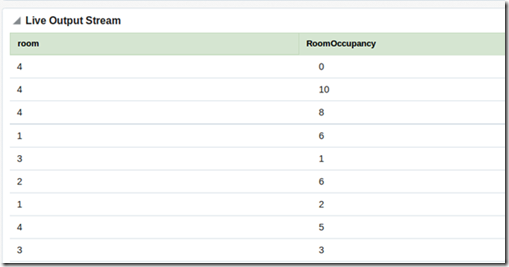

The exploration starts reporting its findings:



Because publishing data to a REST service in JSON format is so easy – and is supported from many tools such as SoapUI and technologies including PL/SQL and Java, it is a very convenient way of sending events to a StreamExplorer application, both for development and testing purposes as well as for a production implementation.

Using the PL/SQL procedure described in this article  we can easily send events from inside the Oracle Database to the StreamExplorer stream:


– and verify the effects in Stream Explorer. Note that the movie showing in room 2 must be quite awful;-)
