I have to admit: I love serverless. Serverless computing is using the cloud as it is supposed to be used: it scales up when you need more capacity, it scales down to zero when you don’t need resources. That is really good when you have, for example, a shop which is still open despite Corona, but which has less turnover because less people are buying products.


Example application in AWS using Lambda Architecture without certificates and DNS

In this example, I simulate a cashing machine in a shop: the client application will create one API call per customer. A customer can buy multiple products. The client encrypts the content and then calls a REST API in AWS (the API Gateway is used for this). The API gateway will deliver the data to a Lambda function, which is called “accept”.

The accept function accepts the request and sends it to an SNS topic. SNS stands for Simple Notification Service. SNS is a service where you can choose to send the message to zero, one or multiple subscribers. In our case, we send the message to the decrypt function.

The decrypt function uses the name of the shop to get the correct key from AWS KMS (Key Management Service). After decryption, the name of the shop and the content of the decrypted message are send to another SNS topic, which will deliver the content to the process function.

The process function uses the content of the decrypted message to update the DynamoDB (AWS NoSQL) database.

All Lambda functions use Cloudwatch for logging.

Advantages of using SNS

We could use just one function (and no SNS topics) instead of three to get our job done. By using SNS we achieve two goals: the first goal is to disconnect the processing of the message from the cash machine. This will speed up the process for the client: the next customer might be waiting already!

The second goal is that we can add several kinds of processing of one message, without changing the code of the program. SNS can be used with Lambda functions (as is done in this example), but SNS messages can also be send as email, as text messages (SMS) or as push messages to mobile phones. It can also send the message to an SQS (Simple Queue Service) queue in AWS and to HTTP(S) API’s.

A few examples of what we might add to the SNS topics:

  • We might connect an extra Lambda function to the to_decrypt SNS topic, which will look how many messages are sent with incorrect keys and what keys are used in that incorrect messages.
  • We can add an extra subscriber to the SNS-topic to_process, which can change the datawarehouse based on the decrypted data. This solution might be written in Lambda to use Amazon Redshift for the datawarehouse. It might also use an on-premise solution, the subscriber can then use HTTP or HTTPS to call an on-premise web hook.
  • We didn’t implement it in this example, but it could be useful to have an SNS queue that collects errors in the decryption. The SNS message can then be forwarded as e-mail to a ticketing system. The same SNS topic could also send an SMS or a push message to mobile phones, to warn the ICT department (and also the store manager) that something is going wrong.

One extra step…

In the image above, the API will create an HTTPS endpoint to deliver content to. This endpoint looks like https://wmfmq9t91a.execute-api.eu-west-1.amazonaws.com/prod/shop . When we would destroy the deployment and re-create it, it will get another endpoint: the first part of this URL is completely random. It would be better to make this endpoint part of our domain. In my case, I have a domain called retsema.eu. I’d like to use an endpoint which is constant over time, for example https://amis.retsema.eu/shop.

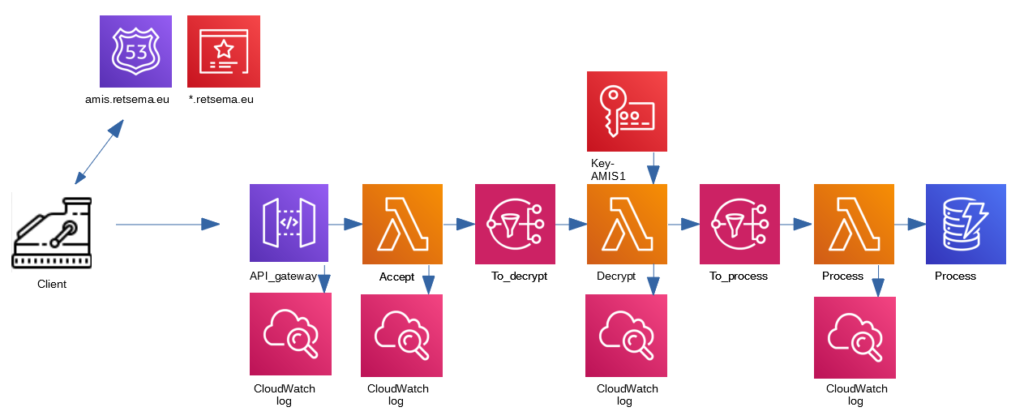

Example application in AWS using Lambda Architecture with certificates and DNS 1

To get this done, we need a certificate. We can use the AWS Certificate Management (ACM) for this. ACM will ask you to to add a CNAME record to the domain that the certificate belongs to, to check if you really are allowed to request certificates for this domain. When the domain is checked, the certificate is issued.

When we have the certificate, we can add a DNS record that points to the endpoint in the API.

This is just an overview of this solution. When you use Terraform, the AWS Service Development Kit (SDK) or the AWS Command Line Interface (CLI), there are multiple objects and multiple calls per service. We also need AWS Identity Access Management (IAM) for example for policies for the Lambda functions. I will walk you through the GUI to look at the objects that are used in this example. You can play along and look at/change these objects yourself in the GUI in later blogs, and will talk more about the details of each service in these images.

Play along

Example application in AWS using Lambda bke 0 1

I scripted the solution [2], and will go into more detail (using screen prints of AWS) in other blogs. You can follow along and create this solution in your own AWS environment, see the README.md file in the vagrant directory. Install Vagrant [3] and Virtual Box [4], go to the vagrant directory and use Vagrant to install and configure the virtual machine:

D:\AMIS-Blog-AWS\shop-1\vagrant>vagrant up

Bringing machine ‘default’ up with ‘virtualbox’ provider…

==> default: Importing base box ‘centos/7’…

==> default: Matching MAC address for NAT networking…


100 2223 100 2223 0

default: 0 10672 0 —

default: :–:– –:–:– –:–:– 10687

D:\AMIS-Blog-AWS\shop-1\vagrant>vagrant ssh

[vagrant@localhost ~]$ ./init-all.sh

Access key/secret access key: Copy/paste your access key and secret access key to the next two questions.

If you don’t have (secret) access keys yet, read the README.md file in the vagrant directory

Default region : When you don’t know what region to use, use eu-central-1

Default output format : Just press enter


AWS Secret Access Key [None]: abCDef1ghIj2jkm+n3oPqr-STUVw4xyZaBCdE!FG

Default region name [None]: eu-central-1

Default output format [None]:

Cloning into ‘AMIS-Blog-AWS‘…


You can choose now to use a public domain in Route53 to see the whole example, or to use the example without

public domain. The example without public domain will work with domain names from Amazon AWS, like


When you do have a public domain in Route53, you can also use that domain, the URL will then become something

like https://amis.retsema.eu/shop (when you would own retsema.eu, that is)

Do you have a public domain in Route53 AND do you want the example shop application to use this domain?

Only yes will use the public domain


Which domain do you own?


Initializing the backend…

Initializing provider plugins…

– Checking for available provider plugins…

– Downloading plugin for provider “aws” (hashicorp/aws) 2.57.0…



Try for yourself: use the following commands to see if the rollout was successful:

cd ~/AMIS-Blog-AWS/shop-1/client

./encrypt_and_send.py AMIS1 https://5ma4daqnoj.execute-api.eu-central-1.amazonaws.com/prod/shop


cd ~/AMIS-Blog-AWS/shop-1/client

./encrypt_and_send.py AMIS1 https://amis.mydomain.nl/shop

[vagrant@localhost ~]$ cd ~/AMIS-Blog-AWS/shop-1/client

[vagrant@localhost client]$ ./encrypt_and_send.py AMIS1 https://5ma4daqnoj.execute-api.eu-central-1.amazonaws.com/prod/shop

Shop id = AMIS1

Key alias = alias/KeyK-AMIS1

URL = https://5ma4daqnoj.execute-api.eu-central-1.amazonaws.com/prod/shop

Data = {“shop_id”: “AMIS1”, “content_base64”: “KNPRXPmGLaoGaAmyIztme8BkDRB/Ga5SobJW3243arjS0PDaU3wIfKo8Zj0fnhUdorqdzZZzpUZHBIN1yZMtbizEbva+EMWn0mphuylWYC+G5mJiXDNsC7rEx4+RpJVfjkCKZV8+xSMSaVNQFeRHwHg1JSRBI5xtDIEOZX+2gOWyRZvrnj1H0OMZoT8WLBBr/IPW691FKPqDdRPzaPJnWJNYxU2Q+5piE8YMCQbZPFAddHBm+mVhrX+v+o1JLGfQHCbKfVekbMIbWIYG9oGhbzVOM/TwjLFg/jV7oH07HRWLKaKx6dYmeERlyfty5pihFsY58W3yldPJcW+q+I0hYQ==”}

request_number = 1

Status code = 200

Content = b'”OK”‘

[vagrant@localhost client]$

Log in to the GUI, click on Services, type DynamoDB and click on DynamoDB:

Example application in AWS using Lambda 1 DynamoDB Service

When the menu on the left is not visible, click on the arrow to make it visible:

Example application in AWS using Lambda 2 Arrow left menu

In this menu, click on Tables. You will see the AMIS-shops table. Click on the link AMIS-shops:

Example application in AWS using Lambda 3 AMIS shops

In the details that pops up, click on the Items tab:

Example application in AWS using Lambda 4 Items

You can see that the table has items for two shops: AMIS1 and AMIS2. By using the ./encrypt_and_send script, you sold some items for the AMIS1 shop:

Example application in AWS using Lambda 5 Table content

(When you run into problems, look at the README.md file in the vagrant directory).


In this example, the only costs that are constant, are the costs of storage of the DynamoDB table. All other costs are going up with the number of API calls and go down when you use this solution less. Though I have a normal (non free tier) AWS account and I used AWS a lot to create and test this solution and the scripts, I only pay about $5 to $10 per month. The way to keep the costs low is to destroy all objects which you don’t use. So when you stop today and want to continue tomorrow, destroy the environment today and bring it up again tomorrow.

Destroying the objects

You can destroy all items that were created by the ./init-all.sh script, by using ./destroy-all.sh script from the home directory of the vagrant user. After destroying the objects of the shop and the infra objects, you will be asked if you want to destroy the star certificate (read more about that in the README.md file in the vagrant directory). If you answer “yes” in this question, then the certificate and the DNS entry for requesting the certificate will be destroyed as well.

[vagrant@localhost client]$ cd ~

[vagrant@localhost ~]$ ./destroy-all.sh

data.aws_acm_certificate.domain_certificate[0]: Refreshing state…

data.aws_route53_zone.my_zone[0]: Refreshing state…



Did you install the certificate via the script (/home/vagrant/init-all.sh) AND do you want to delete the certificate?

(please mind that you shouldn’t do this too often because of the AWS limits on the number of certificates you are allowed to request per year – this defaults to 20)

Only yes will destroy the certificate


Didn’t destroy the certificate


[vagrant@localhost ~]$

Some end-of-year remarks about the AWS Shop Example

When I write this paragraph, it is about 6 months later than I first published this blog. This paragraph is written in December 2020. When I looked at some re:Invent presentations, I thought back at this AWS Shop example. Should I have added an SQS queue after the SNS topic? Look at the answer in this blog [5].
