OpenEBS: Create persistent storage in your Charmed Kubernetes cluster quick and easy!

As a developer I wanted to experiment with Kubernetes environments which approximate production deployments. In order to do that I wanted a distributed storage solution and chose OpenEBS. Mainly because it was easy to get started and quick to get up and running. In this blog post I’ll describe how I did that.

Why OpenEBS?

I previously wrote a blog about using StorageOS as persistent storage solution for Charmed Kubernetes here. StorageOS is dependent on etcd. I was having difficulties getting etcd up again after a reboot. Since I wanted a storage solution without too much effort to get it running and not focus too much on external dependencies I decided to give OpenEBS a try. OpenEBS did not have the etcd dependency. I also considered using CephFS as described in the Charmed Kubernetes tutorials, but a deployment using charms would by default create a large number of additional hosts (for which my laptop didn’t have the resources) and storage would be external to the Kubernetes cluster making this setup more complex to deploy in other environments. The OpenEBS solution runs fully on Kubernetes.

In this blog I’ll describe a developer installation on Charmed Kubernetes (the environment described here). I used openebs-jiva-default as storage class. This is unsuitable for production scenario’s. OpenEBS provides cStor for that. Most of the OpenEBS development effort goes to cStor. cStor however requires a mounted block device. I have not tried this yet.

Installing OpenEBS

First I created my environment as described here. Note that this does not work on a Charmed Kubernetes install on LXC/LXD as-is! This was one of the reasons I decided to switch to MaaS+KVM.

For the creation of the environment I used the following yaml file as overlay. Note that I use 4 worker nodes. This setup requires at least 32Gb of RAM and 12 cores to run.

 description: A highly-available, production-grade Kubernetes cluster.
 series: bionic
 applications:
  etcd:
   num_units: 2
  kubernetes-master:
   constraints: cores=1 mem=4G root-disk=16G
   num_units: 2
  kubernetes-worker:
   constraints: cores=1 mem=3G root-disk=20G
   num_units: 4

Next I enabled iscsi as per OpenEBS requirement in the worker nodes.

 juju run "sudo systemctl enable iscsid && sudo systemctl start iscsid" --application kubernetes-worker

Allow creation of privileged containers. The containers need access to host devices to do their thing.

 juju config kubernetes-master allow-privileged=true

Restart the environment

 juju run "reboot" --application kubernetes-worker
 juju run "reboot" --application kubernetes-master

Create a namespace

 kubectl create namespace openebs

Add the OpenEBS Helm chart

 helm repo add openebs https://openebs.github.io/charts
 helm repo update

Add some configuration for OpenEBS. Parameters are described here.

 cat << EOF > openebs-config.yaml
 jiva:
   replicas: 2
 EOF

Install OpenEBS

 helm install openebs stable/openebs --version 1.10.0 -f openebs-config.yaml --namespace openebs

Make sure the installation is completed before continuing. No pods in the openebs namespace should have state Pending. After the installation is completed, you can set the storageclass openebs-jiva-default as the default storageclass to use:

 kubectl patch storageclass openebs-jiva-default -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'

Also it helps to indicate in the storage class only one replica is needed. This way you can make due with only 2 worker nodes instead of 4:

 kubectl apply -n openebs -f - <<END
 kind: StorageClass
 apiVersion: storage.k8s.io/v1
 metadata:
  name: openebs-jiva-default
  annotations:
   cas.openebs.io/config: |
    - name: ReplicaCount
     value: "1"
   openebs.io/cas-type: jiva
   storageclass.kubernetes.io/is-default-class: 'true'
 provisioner: openebs.io/provisioner-iscsi
 reclaimPolicy: Delete
 volumeBindingMode: Immediate
 END

Trying it out

Add the Jenkins repo

 helm repo add stable https://kubernetes-charts.storage.googleapis.com/
 helm repo update

Create a namespace

 kubectl create namespace jenkins

Create a persistent volume claim

 kubectl create -n jenkins -f - <<END
 apiVersion: v1
 kind: PersistentVolumeClaim
 metadata:
  name: jenkins-pv-claim
 spec:
  storageClassName: openebs-jiva-default
  accessModes:
   - ReadWriteOnce
  resources:
   requests:
    storage: 5Gi
 END

Create some Jenkins configuration to use the claim

 cat << EOF > jenkins-config.yaml
 persistence:
   enabled: true
   size: 5Gi
   accessMode: ReadWriteOnce
   existingClaim: jenkins-pv-claim
   storageClass: "openebs-jiva-default"
 EOF

Install Jenkins

 helm install my-jenkins-release -f jenkins-config.yaml stable/jenkins --namespace jenkins

Get your ‘admin’ user password by running:

 printf $(kubectl get secret --namespace jenkins my-jenkins-release -o jsonpath="{.data.jenkins-admin-password}" | base64 --decode);echo

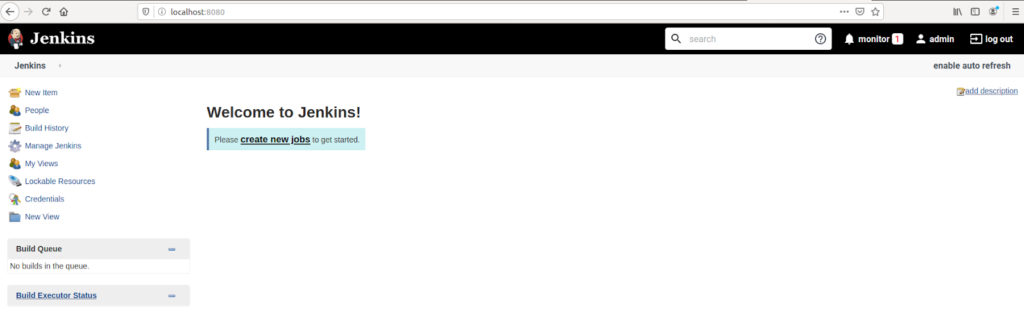

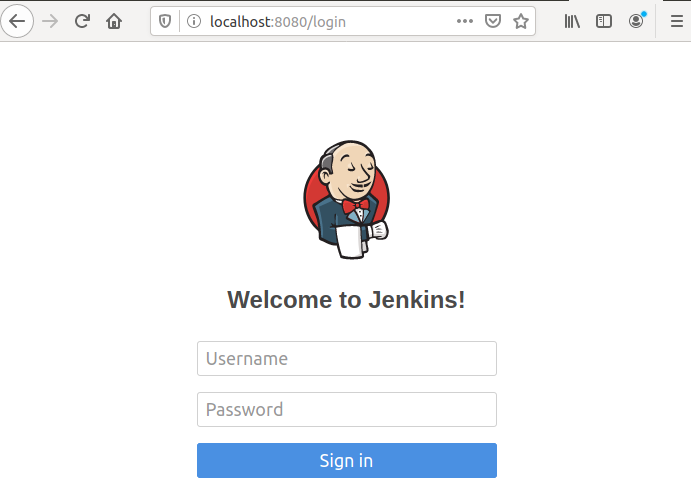

Get the Jenkins URL to visit by running these commands in the same shell and login!

 export POD_NAME=$(kubectl get pods --namespace jenkins -l "app.kubernetes.io/component=jenkins-master" -l "app.kubernetes.io/instance=my-jenkins-release" -o jsonpath="{.items[0].metadata.name}")
 kubectl --namespace jenkins port-forward $POD_NAME 8080:8080
