ADF Performance Monitor: Measuring Network Time to Browser and Browser Load Time

Recently we added a great new feature to the ADF Performance Monitor: network and browser load time information. Now you know exactly every end-user experience of your ADF application, in real-time. You can quickly resolve any performance bottlenecks with this end-to-end visibility. You can even drill down into an individual user to analyze the experience – to understand the ADF app behavior. The dashboard is improved with several overview and detail graphs that shows the layer (database, webservice, application server, network/browser loadtime) where the time is spent of your application. This is very useful to troubleshoot problems.

The ADF Performance Monitor is an advanced tool specifically build for ADF applications and is aware of the intricacies of the ADF framework. It traces key ADF actions across tiers and services to provide end-to-end visibility and automatically maps each tier to easily visualize the relationship between them. This Tracing provides deep visibility into the cause of application performance issues down to the tiniest detail. Click here for more information.

Network Time and Browser Load Time

Network time is the time that it takes to send a HTTP request from a browser (http request network time) to the application server and from the application server back to the browser (http response network time). The browser loadtime is the time that a browser needs to build up the DOM tree and load the page.

database_appserver_network_client

Normally, the combination of the network time and browser load time should not be more than ± one second.

Network Time/Browser Load Time in the ADF Performance Monitor

For this to work we set a parameter  oracle.adf.view.faces.context.ENABLE_ADF_EXECUTION_CONTEXT_PROVIDER to true in web.xml. This adds an additional XML element to each HTTP request. This is already build in into the ADF framework. This is also what oracle RUEI uses.

<context-param>
<param-name>oracle.adf.view.faces.context.ENABLE_ADF_EXECUTION_CONTEXT_PROVIDER</param-name>
<param-value>true</param-value>
</context-param>

Several overview graphs are added to the main dashboard. At the day overview, it shows for each hour of the day (right bottom) the layer where the time is spent. It shows the time spent in the database, webservice, application server, and network/browser load time:

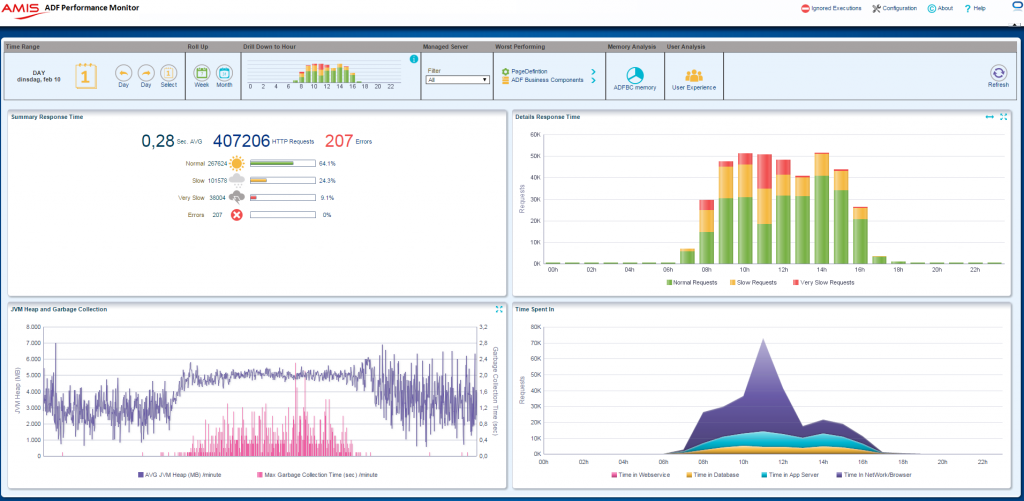

ADF Performance Monitor Day Overview - Slow Network Time at 11 am

At the top right graph (hourly overview of day performance) we can see a lot of red in the bars. Specifically from 11:00 to 12:00 – apparantly there were many very slow requests. In the graph at the right bottom we can now explain what happened; there were network problems. After talking to the infrastructure department – this was indeed the case. They were very busy with maintanance and were not aware (!) that end-users were suffering from there work.

We can drill down to an hour overview:

ADF Performance Monitor Hour Overview - Slow Network Time at 11 am

Also, we can zoom in into a specific managed server of our 12 server cluster (called regi_adf_server1) from the dropdown list:

ADF Performance Monitor Hour Overview - Slow Network Time at 11 am - filtered by managed server

We can see here that during the whole hour there were network problems (graph right bottom).

By clicking on the bars in the menu, we can zoom in more to a five minute overview (11:40-11:45):

ADF Performance Monitor Five Minute Overview - Slow Network Time at 1140 am

In the top graph we see all individual http requests in managed server regi_adf_server1. Again, the stacked bars show the time spent in database, webservice, application server, and network/browser load time (purple). We can see that many end-users have to wait ± 5 seconds – on pure network time (!). Note that The JVM is not the problem and is working fine (bottom graph).

The next day the network problem was resolved. We can see this in the following hour overview graph were there is much less purple colour (right bottom):

ADF Performance Monitor Hour Overview - Normal at 11 am - filtered by managed server

In the HTTP request popup we can also select a specific end-user an monitor his/her experience. The client response time is the time including everything; the app server process time, the network to browser and browser load time. We can see that in this case the client response time was even more: ± 9 seconds for each HTTP request (!). This user (and organisation) was complaining and calling our support desk where we could monitor and investigate this end-user experience:

End User Experience - HTTP Requests2

More information

You can get more information on the ADF Performance Monitor website at adfpm.com. A one month trial version is available on demand here.

Special thanks to my colleage Paul Swiggers for helping implementing this great new feature.
