Seeded XML Publisher Templates for Financial Reports in Oracle e-Business Suite version and Release 12

Bert Admiraal 6
0 0
Read Time:3 Minute, 48 Second

According to Oracle Release 12 offers flexible, XML-based solutions for 70% of all reports in the Financial modules. Who cares, when it’s the alltime hottest sunday afternoon in the Netherlands (29 degrees in April) ? I admit.I “care” … , but only after enjoying the beautiful weather first.

Does Oracle really deliver a flexible, out-of-the-box solution for 70% of the standard Financial reports ? Let’s investigate by counting seeded XML Publisher templates in Oracle e-Business Suite and Release 12 (Vision demo environment). I will focus on the reports in the following modules: General Ledger, Receivables, Payables, Cash Management and Assets.

Oracle e-Business Suite and XML Publisher functionality

Let me first give you a introduction of using XML Publisher functionallity within Oracle e-Business Suite. XML Publisher is introduced in the later 11i versions of Oracle e-Business Suite (EBS). XML Publisher makes it possible to merge XML-output (generated by using Oracle Report or FSG report) with pre-defined report templates (layout).

Pre defined reporting templates can be found (and maintained) in the responsibility “XML Publisher Administrator”. Templates are categorized by application name (f.e. Receivables, General Ledger). Within the “XML Publisher Administrator” responsibility you can also register your own company specific layouts. You can make a quick start by customizing (company specific layout changes) a copy of a seeded template. In the example below we will generate a company specific layout for a FSG report based upon this approach.

So, before we ran the report we customized a company specific reporting template starting from an existing reporting template.

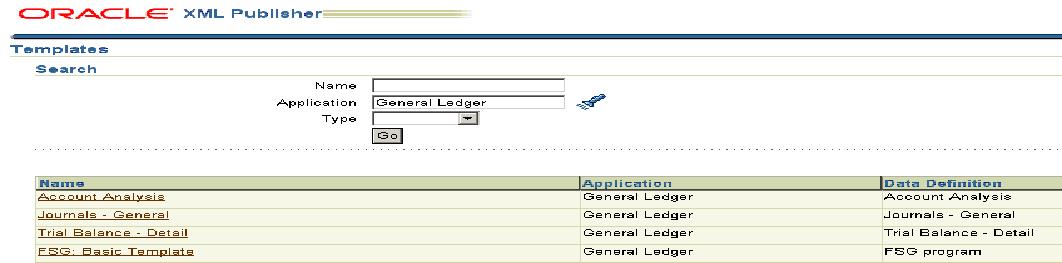

1. In “XML Publisher Administrator” I selected a template already available (in the Vision demo environment). I opened the template to check the layout.

2. I made a copy of this FSG Balance Sheet template and I renamed this “AMIS-template” (Vision demo environment).

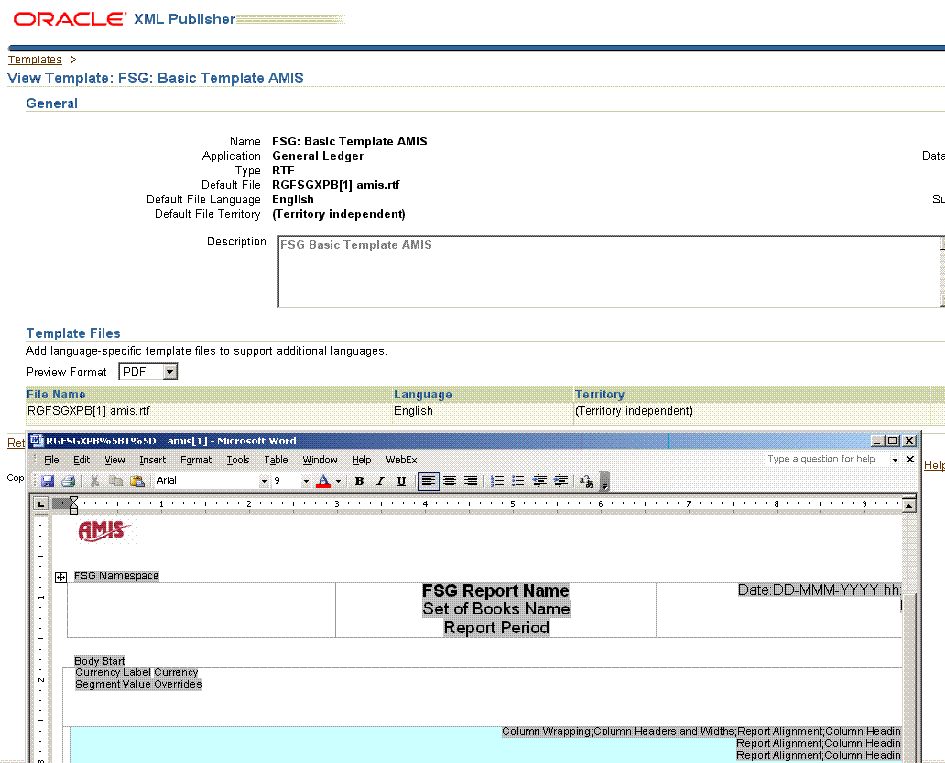

3. I opened the copy of the template and added our AMIS-logo in the header of the reporting template.

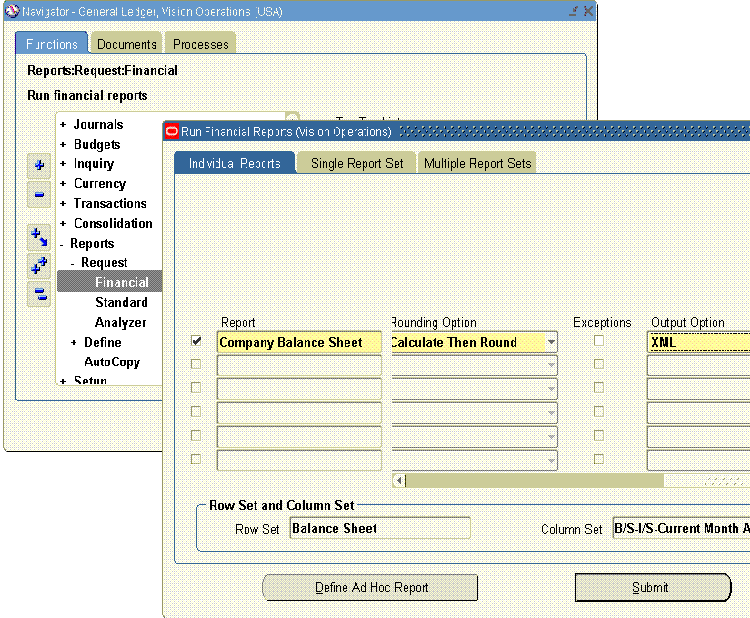

4. Now I was ready to run the FSG-report using the AMIS-balance-template. I submitted the FSG-balance sheet-report request as General Ledger Superuser. I selected XML as desired output.

5. After the request completed I opened the generated XML-file from the request screen.This wasn’ t the report layout I had in mind. It’s “only” the XML-file containing the data to publish/report. I still had to run the request that merges this data with the reporting template.

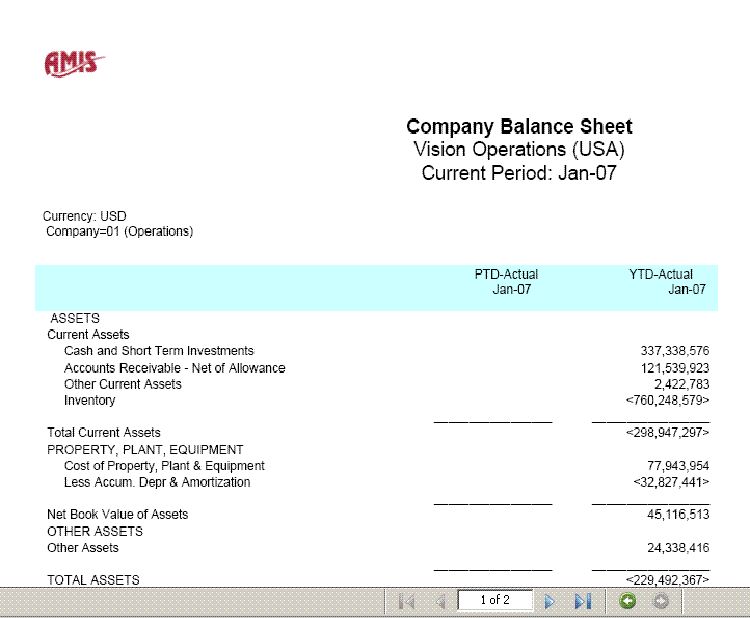

6. I started the XML Publisher-request and generated my AMIS-Balance sheet.I passed the XML-output, generated just before, as one of the input parameters. When this request was finished I opened the output of this request….and indeed, the AMIS-Balance Sheet appeared.

So far, so good. Most important: I did have a “seeded” template which gave me a quick start in defining my company specific template.

Seeded Reporting Templates in Release 12

Back to the main question of this article: does Release 12 offer the promissed number of reporting templates ? Does Release 12 really offer reporting templates for nearly 70% of the Financial reports ? Let’s investigate the numbers of seeded templates in the Financial modules (as mentioned before) of EBS version and Release 12. Attention: this investigation is based upon the data in two fresh installs of the Vision demo environments.

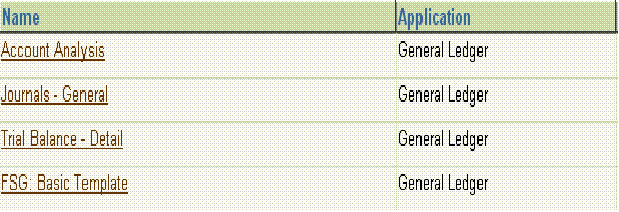

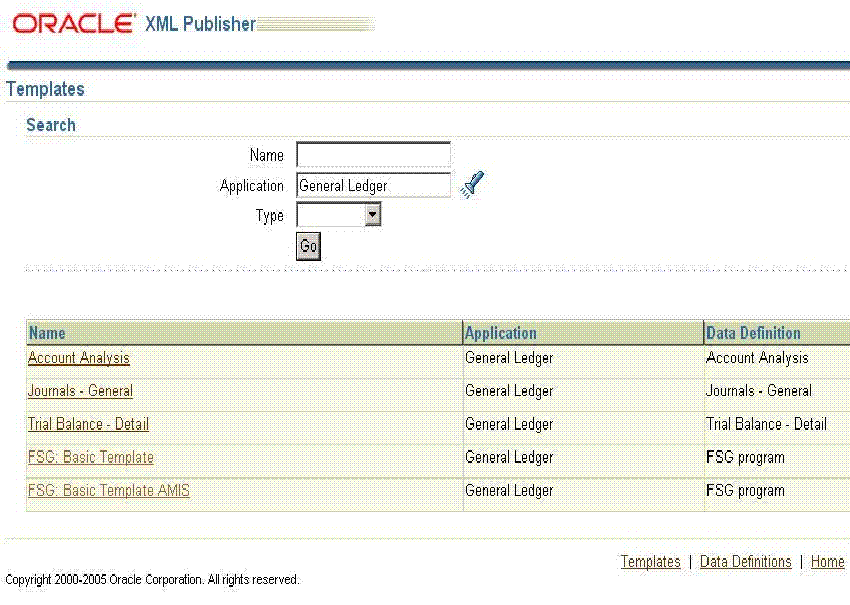

The XML Publisher reporting templates found in are listed below (only four):

Version contains no reporting templates for the other Financial modules in my scope (Receivables, Payables, Cash Management and Assets).

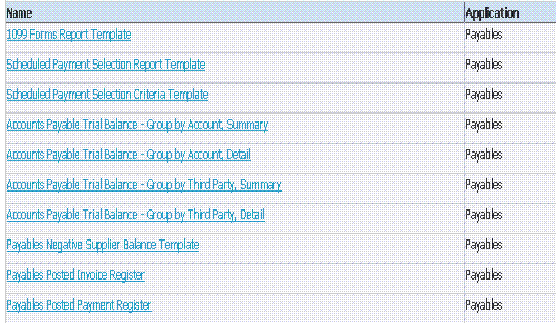

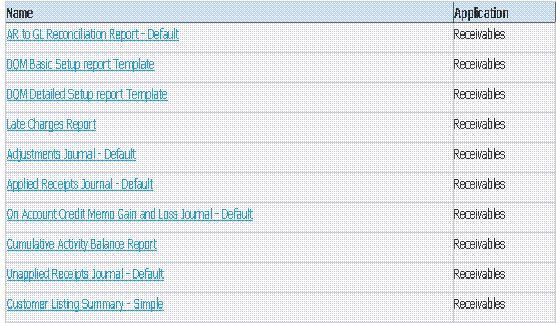

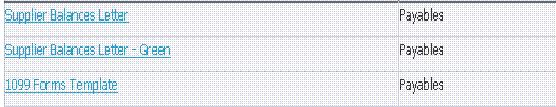

The XML Publisher reporting templates found in Release 12 are listed below:

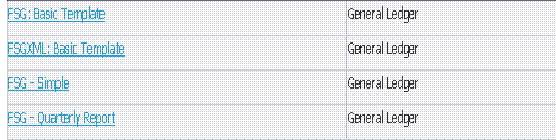

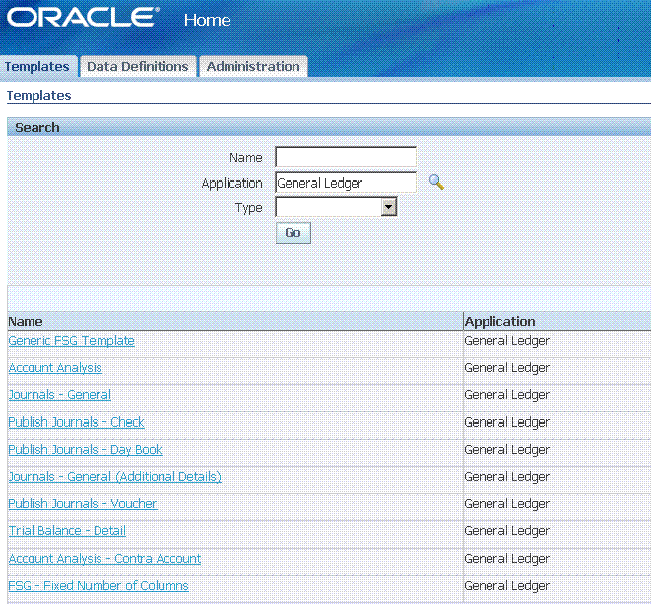

General Ledger:

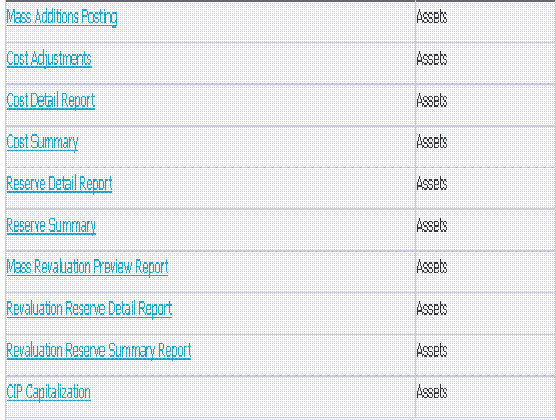

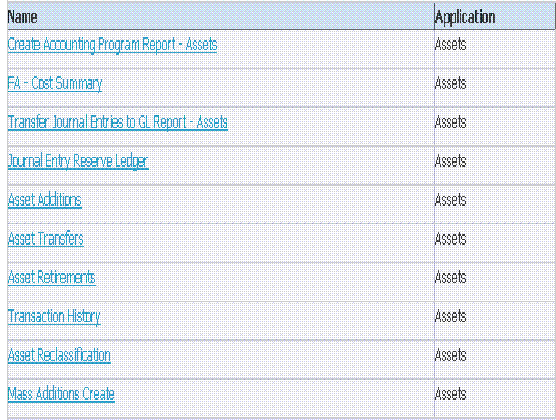

Fixed Assets:

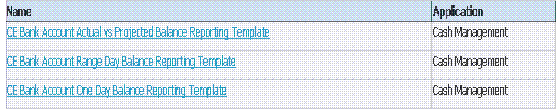

Cash Management:

Version doesn’t contain a lot of seeded Financial reporting templates (only four in General Ledger).Release 12 really offers more seeded templates for Financial reports. Fixed Assets exceeds the other Finance modules.Templates of some important external reports are still missing ! Where are the Customer Invoice and Dunning Letter reporting templates?

Does Release 12 deliver out-of-the-box reporting templates for nearly 70% of all Financial reports? No, I don’t think so. Of course, some templates do cover more than one report but 70% …. ? Based on the Financial-scope and the criteria (number of seeded templates) we stay far below this 70% ….

Did I misinterpret the partner release 12 news of Oracle in The Netherlands on 23 Feb 2007 or is my research/conclusion wrong ?

Hope to hear from anyone who knows more …

About Post Author

Bert Admiraal

Oracle Consultant at AMIS
0 %
0 %
0 %
0 %
0 %
0 %

Average Rating

5 Star
4 Star
3 Star
2 Star
1 Star

6 thoughts on “Seeded XML Publisher Templates for Financial Reports in Oracle e-Business Suite version and Release 12

  1. hi
    i have a datadefinition and 2 layouts with me.. the datadefiniton remains same for both layouts, now while running the request it should take the layout dynamically based on my requirement.. can anyone suggest how to achieve this in xml publisher??

  2. Hi,
    Ur article is very useful.
    i have created xml datafile ,and rtf template,and data definition,template.
    Now i am not getting how to register and where and how to run the report.
    Looking for immedaite help.thx in advance
    reply me to my mail id also(flow from the scratch to develop report using xml publisher with screenshots is much appriciated)

  3. Hi. Yes, this is a great post. I’m familiar with XML Publisher from an earlier release, but am baffled as to how to see the templates in the Release 12 XML Publisher Enterprise Edition we have installed. What is the navigation to see them all, comparable to the ‘Template Search’ described for the 11i version, above?

  4. Hello, I need to know how I can register a xml template in 12i, if the template is a RTF and de data source is a Report (RDF). I need to do a template for a new Format check in the payment module.
    If someone could help me with these….


  5. Hi Tim

    I seared a lot for how to contact have done Great work on your oracle blog for XML invoice report
    I am also creating such report but I am facing a issue that for each invoice line tax line is repeting which I don’t want to print
    I want to group this tax line gor invoice lines

    Pls tell me how to achive it? How to contact you?


  6. Hi
    Great post. You’re right its not 70%, I dont have an accurate number but 70% seems very high. In R12 there are about 850 templates across about 55 products. This number will grow to ~2000 later this year when we release a patch to move the remaining OReports based CPs to Publisher … no, you will have a choice if you do not want to go there:o)
    11.5.10 there are only about 200 templates available. As important external reports, you have to remember that although the original Oracle reports are still there they have been superceded by new products, Bill Presentment Architecture (Invoicing), Advanced Collections (Dunning Letters) and a new PO extraction engine (PO) … all of these products ship templates for you but not for the original OReports.
