Running your ADF Essentials application on Glassfish 3

0 0
Read Time:3 Minute, 54 Second

For some of our own internal applications, we (AMIS) are using 2 products of Oracle that do not require any license to be payed: ADF Essentials and the Oracle XE database.

These applications were initially deployed to a Tomcat 6 server, only when trying to deploy new applications we encountered issues with conflicting libraries. As the Glassfish Open Source edition is also free and well documented and supported I decided to investigate a switch.

Since ADF Essentials is available more than a year, posts about using ADF Essentials with Glassfish are there already. Take this one for example by Shay Smeltzer. But in these posts there was always something missing, in this post I share the steps I needed for a working deployment to a remote server (in the cloud in my case).

Environment

First my assumptions/environment:

  • Combination Oracle XE 11g, ADF essentials 11g r2 and Glassfish Open Source Edition 3.1
  • The ADF application uses a JDBC datasource
  • Glassfish will be running on a server on which the (Oracle XE) database is also running
  • The Glassfish Admin console is accessed remotely

Installing and configuring Glassfish

First we check that a JDK 6 or 7 is installed on the server. If not please install JDK 7.

Next we download glassfish.
You need to download the 3.1 Full Platform version!
There is also a complete zipped installation you only need to unzip.

Install Glassfish, a link to the documentation can be found on the download page.

Start the glassfish server. When you use the zip-file you can start the domain using:
<unzip-directory>\glassfish3\bin>asadmin start-domain

You should now be able to start the admin-console in a browser using http://<hostname>:4848/

gf1

If you have a database running on the same server you can better change the default http-port. Update the default http-port from 8080 to say 8484:

  • Expand folder: Configuration | server-config | HTTP Service | HTTP Listeners | http-listener-2
  • Update the port and save

gf2

For ADF essentials we need to update two settings:

  • Configurations | Server-config | JVM Settings
  • choose the JVM Options tab
  • Update the following entry:
    -XX:MaxPermSize=512m
    (note if the value is larger than 512m you can leave it to that)
  • Add the following entry:
    -Doracle.mds.cache=simple

gf3

While we are in the admin console, we can also define JDBC connections that will be used by our application.

  • Go into Resources->JDBC->JDBC Connection Pools
  • Create a New one and give it a name
  • Choose the resource type to be javax.sql.XADataSource
  • Choose Oracle as the Database Driver vendor.
  • Click Next
  • Scroll down to the Additional Properties section and start filling in the information for your database.
    The values for an Oracle XE will be
    (user=hr, Password=hr, url=jdbc:oracle:thin:@hostname:1521:XE)
  • Click Finish
  • Click Ping to check your connection works.
  • Define a new JDBC Resource that will use the pool you just defined, you will need this name to match the name in your Application Module connection configuration.

Downloading ADF Essentials library

Adf Essentials library download

Unzip the library in <unzip-directory>/glassfish3/domains/<domain>/lib directory using “unzip -j” (you do not want the directories, only the jar-files).

Restart the glassfish server:

  • <unzip-directory>\glassfish3\bin>asadmin stop-domain
  • <unzip-directory>\glassfish3\bin>asadmin start-domain



Preparing your application for deployment

  • Go into the project properties of your viewController project, under the deployment section click to edit the deployment profile that is defined there.
  • Go to Application | Application Properties | Deployment
  • Go to Platform and choose Glassfish 3.1 from the drop down list. Click ok to go back to your project.

gf4

This step will make sure that JDeveloper will automatically add the necessary ADF libraries to the EAR file that is being generated for deployment on Glassfish.

  • Go to your Application | Deploy
  • Deploy either to an EAR file or directly to a Glassfish server connection that you created.
  • An ear-file can be deployed manually in the admin-console by selecting Applications and uploading the ear-file

gf5

When running glassfish locally you can also deploy the ear to the domains autodeploy directory

Remote administration

Out-of-the-box, GlassFish Server 3.1 does not permit remote administration. This is to reduce your exposure to an attack from elsewhere in the network.  If you try to do remote administration GlassFish sends a “403 – Forbidden” HTTP status as the response.

You can turn remote administration on using

asadmin enable-secure-admin

which actually accomplishes two things.  It enables remote administration and also encrypts all admin traffic

About Post Author

Herman Mensinga

Herman Mensinga, active in IT (and with Oracle) since 1993. Consultant and trainer on diverse areas including Oracle JET, Oracle Database (SQL & PLSQL), Javascript, WebLogic, ADF, Service Oriented Architecture, Apex and many other things.
Happy
Happy
0 %
Sad
Sad
0 %
Excited
Excited
0 %
Sleepy
Sleepy
0 %
Angry
Angry
0 %
Surprise
Surprise
0 %

Average Rating

5 Star
0%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

3 thoughts on “Running your ADF Essentials application on Glassfish 3

  1. I am very interested in installing in the eclipse application adf essential so I can use the advantages of adf framework.
    As a video I have just installed the eclipse found in Jdeveloper 12.2. (Version: Neon.1 (4.6.1) Build id: M20160907-1200),
    after installing it from Glassfish 4 .1.1 add-in “adf-essentials 12.2.1.2.0.zip” and Oracle ADF Essentials 12.2.1.2.0 ear that I add to the design according to the application.
    But when I try to publish to Glassfish server I get a this message:
    “Can not Deploy ADF
    Deploy is failing = Error occured during deployment: Exception while loading the app: java.lang.IllegalStateException: ContainerBase.addChild: start: org.apache.catalina.LifecycleException: java.lang.RuntimeException: com.sun.faces.config.ConfigurationException :
    Source Document: web.xml
    Causes: Unable to find class ‘oracle.adfinternal.view.faces.facelets.rich.AdfFaceletsResourceResolver’. Please see server.log for more details. ”
    Any help would greatly help me and I would like to thank you.
    Drasko

  2. Please provide examples for Glassfish 4 as well.

    My application created with JDeveloper 12.1.3 deploys fine on GlassFish 3.1!

    But when I run it with Glass 4, configured as required I cannot deploy the EAR file

    I get this error when I try to deploy:

    [2014-09-03T09:19:05.086+0300] [glassfish 4.0] [SEVERE] [] [javax.enterprise.resource.webcontainer.jsf.config] [tid: _ThreadID=34 _ThreadName=admin-listener(3)] [timeMillis: 1409725145086] [levelValue: 1000] [[
    Critical error during deployment:
    com.sun.faces.config.ConfigurationException: java.util.concurrent.ExecutionException: java.lang.NoClassDefFoundError: org/jvnet/hk2/component/Habitat

Comments are closed.

Next Post

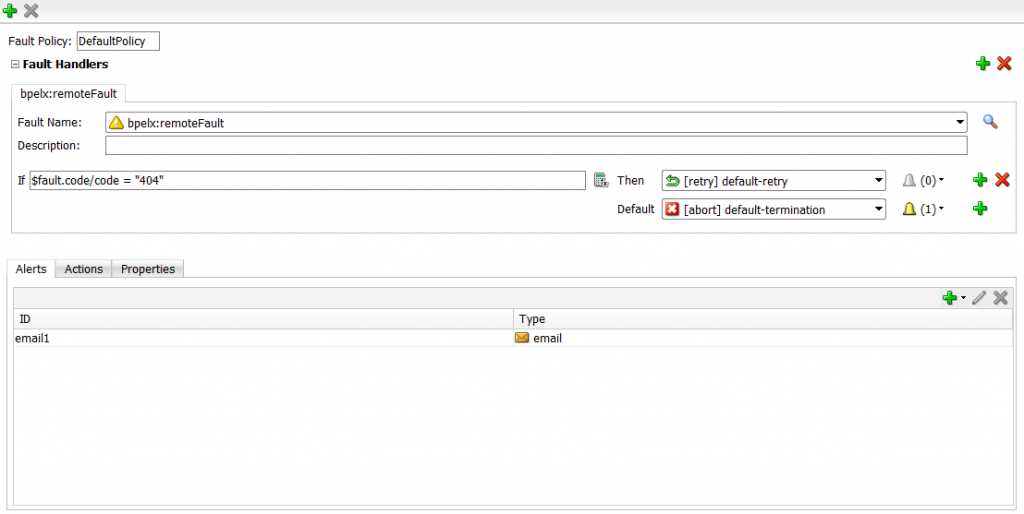

SOA Suite 12c: New visual editor for creating Fault Policies
