In November of last year, my colleague Lucas Jellema, wrote an article with the title “Ultra fast, ultra small Kubernetes on Linux – K3S beating minikube”.
[https://technology.amis.nl/2019/11/12/ultra-fast-ultra-small-kubernetes-on-linux-k3s-beating-minikube/]
For training and demo purposes, on my Windows laptop, I already had an environment with a guest Operating System, Docker and Minikube available within an Oracle VirtualBox appliance. This demo environment uses a Vagrantfile, scripts and Kubernetes manifest (yaml) files. But now I wanted to try out k3s also.
[https://technology.amis.nl/2019/02/12/rapidly-spinning-up-a-vm-with-ubuntu-docker-and-minikube-using-the-vm-drivernone-option-on-my-windows-laptop-using-vagrant-and-oracle-virtualbox/]
In this article, I will share with you the steps I took, to get k3s installed (with the Kubernetes Dashboard) on top of an Ubuntu guest Operating System within an Oracle VirtualBox appliance, with the help of Vagrant.
k3s
Lightweight Kubernetes. Easy to install, half the memory, all in a binary less than 40mb.
K3s is a fully compliant Kubernetes distribution with the following enhancements:
- An embedded SQLite database has replaced etcd as the default datastore. External datastores such as PostgreSQL, MySQL, and etcd are also supported.
- Simple but powerful “batteries-included” features have been added, such as: a local storage provider, a service load balancer, a Helm controller, and the Traefik ingress controller.
- Operation of all Kubernetes control plane components is encapsulated in a single binary and process. This allows K3s to automate and manage complex cluster operations like distributing certificates.
- In-tree cloud providers and storage plugins have been removed.
- External dependencies have been minimized (just a modern kernel and cgroup mounts needed). K3s packages required dependencies, including:
- containerd
- Flannel
- CoreDNS
- Host utilities (iptables, socat, etc)
[https://rancher.com/docs/k3s/latest/en/]
Installing k3s

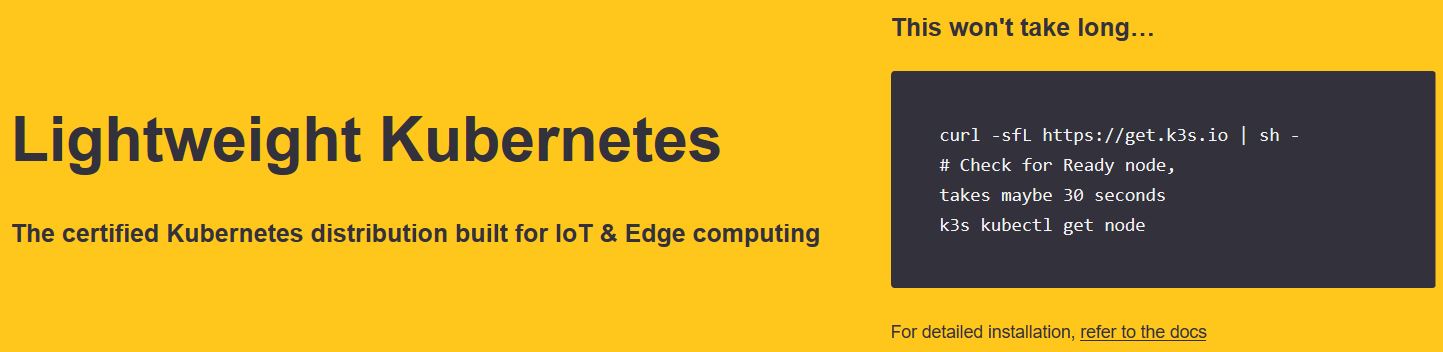

According to the website, installing k3s won’t take long.
curl -sfL https://get.k3s.io | sh - # Check for Ready node, takes maybe 30 seconds k3s kubectl get node
I had a look at the documentation and used the following command (using environment variable INSTALL_K3S_VERSION) in order to specify a particular version of K3s to download from github:
curl -sfL https://get.k3s.io | INSTALL_K3S_VERSION=v1.0.1 sh -
[https://rancher.com/docs/k3s/latest/en/installation/install-options/]
Before setting up my demo environment I had a look at the k3s requirements.
- Operating Systems
k3s should run on just about any flavor of Linux. However, k3s is tested on the following operating systems and their subsequent non-major releases.- Ubuntu 16.04 (amd64)
- Ubuntu 18.04 (amd64)
- Raspbian Buster (armhf)
- Hardware
Hardware requirements scale based on the size of your deployments. Minimum recommendations are outlined here.- RAM: 512MB Minimum
- CPU: 1 Minimum
[https://rancher.com/docs/k3s/latest/en/installation/node-requirements/]

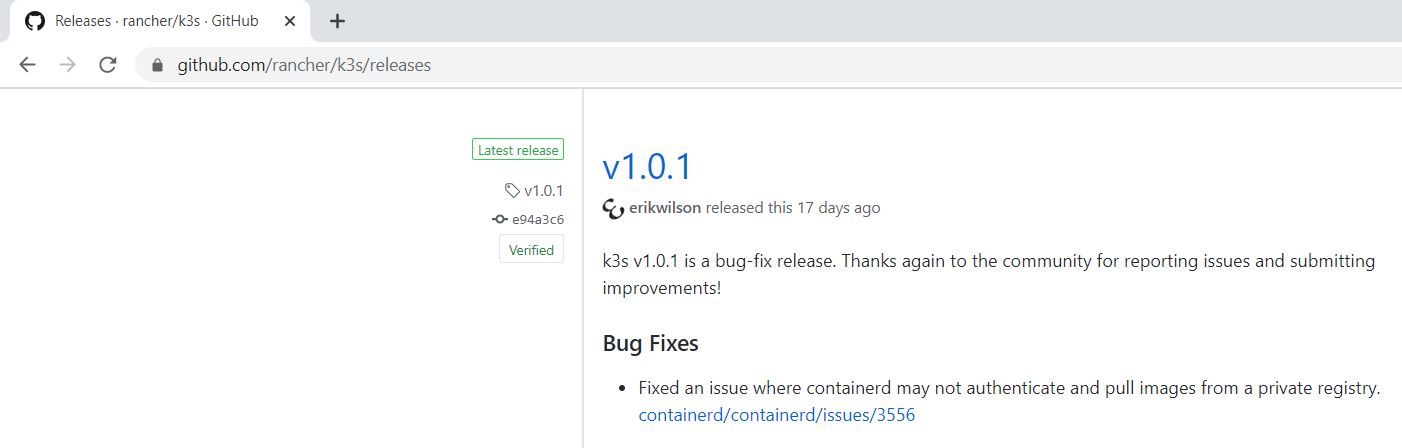

For the version of k3s I looked at: https://github.com/rancher/k3s/releases
I chose: Latest release, v1.0.1
[https://github.com/rancher/k3s/releases]
Vagrantfile
Based on the k3s operating system requirements I used the Vagrant Box search page to search for an Ubuntu 18.04 Vagrant Box (for VirtualBox).
[https://app.vagrantup.com/boxes/search]
I chose: ubuntu/bionic64
[https://app.vagrantup.com/ubuntu/boxes/bionic64]
In my existing demo environment, I changed the content of the Vagrantfile to:
[https://technology.amis.nl/2019/02/12/rapidly-spinning-up-a-vm-with-ubuntu-docker-and-minikube-using-the-vm-drivernone-option-on-my-windows-laptop-using-vagrant-and-oracle-virtualbox/]
Vagrant.configure("2") do |config|
config.vm.box = "ubuntu/bionic64"
config.vm.define "ubuntu_k3s" do |ubuntu_k3s|
config.vm.network "forwarded_port",
guest: 8001,
host: 8001,
auto_correct: true
config.vm.network "forwarded_port",
guest: 9110,
host: 9110,
auto_correct: true
config.vm.provider "virtualbox" do |vb|
vb.name = "Ubuntu k3s"
vb.memory = "8192"
vb.cpus = "1"
args = []
config.vm.provision "shell",
path: "scripts/k3s.sh",
args: args
end
end
end
In the scripts directory I created a file k3s.sh with the following content:
#!/bin/bash echo "**** Begin installing k3s" #Install curl -sfL https://get.k3s.io | INSTALL_K3S_VERSION=v1.0.1 sh - echo "**** End installing k3s"
From the subdirectory named env on my Windows laptop, I opened a Windows Command Prompt (cmd) and typed: vagrant up
This command creates and configures guest machines according to your Vagrantfile.
[https://www.vagrantup.com/docs/cli/up.html]
With the following output (only showing the part about k3s):
ubuntu_k3s: **** Begin installing k3s
…
ubuntu_k3s: **** End installing k3s
ubuntu_k3s: **** Begin installing k3s
…
ubuntu_k3s: **** End installing k3s
ubuntu_k3s: **** Begin installing k3s
…
ubuntu_k3s: **** End installing k3s
Provisioning shell script was running multiple times!
I noticed that the provisioning shell script was running multiple times!
I recently upgraded vagrant to version 2.2.6, so the problem could be related to that upgrade.
After some search on the Internet I found a solution, that worked for me:
Provisioning scripts always run twice?
The bug itself is due to your provision block not having a name. If you don’t want them running twice, you can fix it by giving it a name like this:
`config.vm.provision “my shell script”, type: “shell”, ….`
[https://groups.google.com/forum/#!topic/vagrant-up/Ue11v3BmBN4]
So, I changed the content of Vagrantfile to:
[in bold, I highlighted the changes]
Vagrant.configure("2") do |config|
config.vm.box = "ubuntu/bionic64"
config.vm.define "ubuntu_k3s" do |ubuntu_k3s|
config.vm.network "forwarded_port",
guest: 8001,
host: 8001,
auto_correct: true
config.vm.provider "virtualbox" do |vb|
vb.name = "Ubuntu k3s"
vb.memory = "8192"
vb.cpus = "1"
args = []
config.vm.provision "k3s shell script", type: "shell",
path: "scripts/k3s.sh",
args: args
end
end
end
In order to stop the running machine and destroy its resources, I used the following command on the Windows Command Prompt: vagrant destroy
With the following output:
ubuntu_k3s: Are you sure you want to destroy the ‘ubuntu_k3s’ VM? [y/N] y
==> ubuntu_k3s: Forcing shutdown of VM…
==> ubuntu_k3s: Destroying VM and associated drives…
This command stops the running machine Vagrant is managing and destroys all resources that were created during the machine creation process. After running this command, your computer should be left at a clean state, as if you never created the guest machine in the first place.
[https://www.vagrantup.com/docs/cli/destroy.html]
From the subdirectory named env on my Windows laptop, again, I opened a Windows Command Prompt (cmd) and typed: vagrant up
With the following output with regard to the version of ubuntu/bionic64 (of course related to the moment I wrote this article):
==> ubuntu_k3s: Checking if box 'ubuntu/bionic64' version '20191218.0.0' is up to date... ==> ubuntu_k3s: A newer version of the box 'ubuntu/bionic64' for provider 'virtualbox' is ==> ubuntu_k3s: available! You currently have version '20191218.0.0'. The latest is version ==> ubuntu_k3s: '20200107.0.0'. Run `vagrant box update` to update.
With the following output (only showing the part about k3s):
ubuntu_k3s: **** Begin installing k3s ubuntu_k3s: [INFO] Using v1.0.1 as release ubuntu_k3s: [INFO] Downloading hash https://github.com/rancher/k3s/releases/download/v1.0.1/sha256sum-amd64.txt ubuntu_k3s: [INFO] Downloading binary https://github.com/rancher/k3s/releases/download/v1.0.1/k3s ubuntu_k3s: [INFO] Verifying binary download ubuntu_k3s: [INFO] Installing k3s to /usr/local/bin/k3s ubuntu_k3s: [INFO] Creating /usr/local/bin/kubectl symlink to k3s ubuntu_k3s: [INFO] Creating /usr/local/bin/crictl symlink to k3s ubuntu_k3s: [INFO] Creating /usr/local/bin/ctr symlink to k3s ubuntu_k3s: [INFO] Creating killall script /usr/local/bin/k3s-killall.sh ubuntu_k3s: [INFO] Creating uninstall script /usr/local/bin/k3s-uninstall.sh ubuntu_k3s: [INFO] env: Creating environment file /etc/systemd/system/k3s.service.env ubuntu_k3s: [INFO] systemd: Creating service file /etc/systemd/system/k3s.service ubuntu_k3s: [INFO] systemd: Enabling k3s unit ubuntu_k3s: Created symlink /etc/systemd/system/multi-user.target.wants/k3s.service ? /etc/systemd/system/k3s.service. ubuntu_k3s: [INFO] systemd: Starting k3s ubuntu_k3s: **** End installing k3s
Because of the warning with regard to the version of ubuntu/bionic64, I used the mentioned command in a Windows Command Prompt: vagrant box update
With the following output:
==> ubuntu_k3s: Checking for updates to 'ubuntu/bionic64' ubuntu_k3s: Latest installed version: 20191218.0.0 ubuntu_k3s: Version constraints: ubuntu_k3s: Provider: virtualbox ==> ubuntu_k3s: Updating 'ubuntu/bionic64' with provider 'virtualbox' from version ==> ubuntu_k3s: '20191218.0.0' to '20200107.0.0'... ==> ubuntu_k3s: Loading metadata for box 'https://vagrantcloud.com/ubuntu/bionic64' ==> ubuntu_k3s: Adding box 'ubuntu/bionic64' (v20200107.0.0) for provider: virtualbox ubuntu_k3s: Downloading: https://vagrantcloud.com/ubuntu/boxes/bionic64/versions/20200107.0.0/providers/virtualbox.box ubuntu_k3s: Download redirected to host: cloud-images.ubuntu.com ubuntu_k3s: ==> ubuntu_k3s: Successfully added box 'ubuntu/bionic64' (v20200107.0.0) for 'virtualbox'!
I used vagrant ssh to connect into the running VM and start doing stuff.
Next, I used the following command on the Linux Command Prompt:
kubectl get nodes
With the following output:
WARN[2020-01-12T13:36:33.705394309Z] Unable to read /etc/rancher/k3s/k3s.yaml, please start server with --write-kubeconfig-mode to modify kube config permissions error: error loading config file "/etc/rancher/k3s/k3s.yaml": open /etc/rancher/k3s/k3s.yaml: permission denied
Remark:
The command mentioned on the start page of k3s (k3s kubectl get node) leads to the same error message.
This is because the current user (via the whoami command), in my case, is: vagrant
Once k3s was installed, I used the following command (as can also be found in the documentation):
[https://github.com/rancher/k3s/blob/master/README.md]
sudo kubectl get nodes
With the following output:
NAME STATUS ROLES AGE VERSION ubuntu-bionic Ready master 10m v1.16.3-k3s.2
According to the documentation:
A kubeconfig file is written to /etc/rancher/k3s/k3s.yaml and the service is automatically started or restarted. The install script will install k3s and additional utilities, such as kubectl, crictl, k3s-killall.sh, and k3s-uninstall.sh.
[https://github.com/rancher/k3s/blob/master/README.md]
Next, I used the following command:
cd /etc/rancher/k3s ls -latr
With the following output:
total 12 -rw------- 1 root root 1052 Jan 12 10:16 k3s.yaml drwxr-xr-x 2 root root 4096 Jan 12 10:16 . drwxr-xr-x 4 root root 4096 Jan 12 10:16 ..
Next, I used the following command to see the content of file k3s.yaml:
sudo cat k3s.yaml
With the following output:
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUJWekNCL3FBREFnRUNBZ0VBTUFvR0NDcUdTTTQ5QkFNQ01DTXhJVEFmQmdOVkJBTU1HR3N6Y3kxelpYSjIKWlhJdFkyRkFNVFUzT0RneU5ERTVNekFlRncweU1EQXhNVEl4TURFMk16TmFGdzB6TURBeE1Ea3hNREUyTXpOYQpNQ014SVRBZkJnTlZCQU1NR0dzemN5MXpaWEoyWlhJdFkyRkFNVFUzT0RneU5ERTVNekJaTUJNR0J5cUdTTTQ5CkFnRUdDQ3FHU000OUF3RUhBMElBQk12b3V1YjZTR3N6UVl2LzVyb0lpSE5xbXZ0aUxub2gyQTZzR1hIQyt2OWQKSzkwTVlmV2J2bkozVFhyeEg2Mm5LTDhEU05wcmN4eC9rRXNXM2FpZTV3Q2pJekFoTUE0R0ExVWREd0VCL3dRRQpBd0lDcERBUEJnTlZIUk1CQWY4RUJUQURBUUgvTUFvR0NDcUdTTTQ5QkFNQ0EwZ0FNRVVDSUJSUmlrd0FPcjFVCmJtTlhOcEw3Y1cxaDhRSGg4QnZJQmJKc2RqdGU3Myt4QWlFQXROUG9MTjliVFZpYmxlYW5SNFpKcStKNUxDMmsKeUUwN2daWlk1NURlc25RPQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
server: https://127.0.0.1:6443
name: default
contexts:
- context:
cluster: default
user: default
name: default
current-context: default
kind: Config
preferences: {}
users:
- name: default
user:
password: 1f0b266cfdd8e11a9af1a6e262b09746
username: admin
Kubectl configuration
Let’s focus on the configuration.
By default, kubectl looks for a file named config in the $HOME/.kube directory. You can specify other kubeconfig files by setting the KUBECONFIG environment variable or by setting the –kubeconfig flag.
[https://kubernetes.io/docs/concepts/configuration/organize-cluster-access-kubeconfig/]
With regard to the k3s kubectl command, the following applies:
Run an embedded kubectl CLI. If the KUBECONFIG environment variable is not set, this will automatically attempt to use the config file that is created at /etc/rancher/k3s/k3s.yaml when launching a K3s server node.
[https://rancher.com/docs/k3s/latest/en/installation/install-options/]
In order for a none root user to use kubectl with a certain configuration, according to the warning we got earlier:
Unable to read /etc/rancher/k3s/k3s.yaml, please start server with –write-kubeconfig-mode to modify kube config permissions
we have to start the k3s server with a particular kubeconfig mode.
We can use the K3s Server option write-kubeconfig-mode (client) Write kubeconfig with this mode [$K3S_KUBECONFIG_MODE])
[https://rancher.com/docs/k3s/latest/en/installation/install-options/]
I had a look at the documentation about using environment variable K3S_KUBECONFIG_MODE, and came across the following example:
curl -sfL https://get.k3s.io | K3S_KUBECONFIG_MODE=”644″ sh -s –
[https://github.com/rancher/k3s/issues/389]
Remark about chmod 644:
Chmod 644 (chmod a+rwx,u-x,g-wx,o-wx) sets permissions so that, (U)ser / owner can read, can write and can’t execute. (G)roup can read, can’t write and can’t execute. (O)thers can read, can’t write and can’t execute.
Remark:
In a previous article I described a similar approach for a non-root user (vagrant) to use the kubectl command and configuration.
[https://technology.amis.nl/2019/02/12/rapidly-spinning-up-a-vm-with-ubuntu-docker-and-minikube-using-the-vm-drivernone-option-on-my-windows-laptop-using-vagrant-and-oracle-virtualbox/]
In the scripts directory I changed file k3s.sh to the following content:
[in bold, I highlighted the changes]
#!/bin/bash echo "**** Begin installing k3s" #Install curl -sfL https://get.k3s.io | INSTALL_K3S_VERSION=v1.0.1 K3S_KUBECONFIG_MODE="644" sh - echo "**** End installing k3s"
From here on in this blog, for simplicity, I will no longer mention the vagrant destroy command preceding the vagrant up command.
From the subdirectory named env on my Windows laptop, I opened a Windows Command Prompt (cmd) and typed: vagrant up
With the following output (only showing the part about k3s):
ubuntu_k3s: **** Begin installing k3s ubuntu_k3s: [INFO] Using v1.0.1 as release ubuntu_k3s: [INFO] Downloading hash https://github.com/rancher/k3s/releases/download/v1.0.1/sha256sum-amd64.txt ubuntu_k3s: [INFO] Downloading binary https://github.com/rancher/k3s/releases/download/v1.0.1/k3s ubuntu_k3s: [INFO] Verifying binary download ubuntu_k3s: [INFO] Installing k3s to /usr/local/bin/k3s ubuntu_k3s: [INFO] Creating /usr/local/bin/kubectl symlink to k3s ubuntu_k3s: [INFO] Creating /usr/local/bin/crictl symlink to k3s ubuntu_k3s: [INFO] Creating /usr/local/bin/ctr symlink to k3s ubuntu_k3s: [INFO] Creating killall script /usr/local/bin/k3s-killall.sh ubuntu_k3s: [INFO] Creating uninstall script /usr/local/bin/k3s-uninstall.sh ubuntu_k3s: [INFO] env: Creating environment file /etc/systemd/system/k3s.service.env ubuntu_k3s: [INFO] systemd: Creating service file /etc/systemd/system/k3s.service ubuntu_k3s: [INFO] systemd: Enabling k3s unit ubuntu_k3s: Created symlink /etc/systemd/system/multi-user.target.wants/k3s.service ? /etc/systemd/system/k3s.service. ubuntu_k3s: [INFO] systemd: Starting k3s ubuntu_k3s: **** End installing k3s
So once k3s was installed, I used vagrant ssh to open a Linux Command Prompt where I used the following command:
kubectl get nodes
With the following output:
NAME STATUS ROLES AGE VERSION ubuntu-bionic Ready master 49s v1.16.3-k3s.2
Next, I used the following command:
kubectl get pods --all-namespaces
With the following output:
NAMESPACE NAME READY STATUS RESTARTS AGE kube-system local-path-provisioner-58fb86bdfd-g68v5 1/1 Running 0 76s kube-system metrics-server-6d684c7b5-4zrgx 1/1 Running 0 75s kube-system coredns-d798c9dd-szfg7 1/1 Running 0 76s kube-system helm-install-traefik-xg2zd 0/1 Completed 0 76s kube-system svclb-traefik-frjb9 3/3 Running 0 32s kube-system traefik-65bccdc4bd-rxlv4 1/1 Running 0 32s
Then, I used the following command:
cd /etc/rancher/k3s ls -latr
With the following output:
total 12 -rw-r--r-- 1 root root 1052 Jan 12 14:40 k3s.yaml drwxr-xr-x 2 root root 4096 Jan 12 14:40 . drwxr-xr-x 4 root root 4096 Jan 12 14:40 ..
Here we can see the changed permissions for file k3s.yaml.
Kubernetes Web UI (Dashboard)
Now let’s try to interact with the Kubernetes Cluster via the Dashboard.
The Dashboard UI is not deployed by default. To deploy it, run the following command:
kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-beta4/aio/deploy/recommended.yaml
You can access Dashboard using the kubectl command-line tool by running the following command:
kubectl proxy
Kubectl will make Dashboard available at:
http://localhost:8001/api/v1/namespaces/kube-system/services/https:kubernetes-dashboard:/proxy/
The UI can only be accessed from the machine where the command is executed. See kubectl proxy –help for more options.
[https://kubernetes.io/docs/tasks/access-application-cluster/web-ui-dashboard/]
Because of the setup of my demo environment, simple using kubectl proxy wouldn’t work, so again I used:
[https://technology.amis.nl/2019/02/12/rapidly-spinning-up-a-vm-with-ubuntu-docker-and-minikube-using-the-vm-drivernone-option-on-my-windows-laptop-using-vagrant-and-oracle-virtualbox/]
kubectl proxy --address='0.0.0.0' </dev/null &>/dev/null &
In the scripts directory I created a file dashboard.sh with the following content:
#!/bin/bash echo "**** Begin preparing dashboard" echo "**** Install Kubernetes Dashboard" kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-beta4/aio/deploy/recommended.yaml kubectl proxy --address='0.0.0.0' /dev/null & echo "**** End preparing dashboard"
I changed the content of Vagrantfile to:
[in bold, I highlighted the changes]
Vagrant.configure("2") do |config|
config.vm.box = "ubuntu/bionic64"
config.vm.define "ubuntu_k3s" do |ubuntu_k3s|
config.vm.network "forwarded_port",
guest: 8001,
host: 8001,
auto_correct: true
config.vm.provider "virtualbox" do |vb|
vb.name = "Ubuntu k3s"
vb.memory = "8192"
vb.cpus = "1"
args = []
config.vm.provision "k3s shell script", type: "shell",
path: "scripts/k3s.sh",
args: args
args = []
config.vm.provision "dashboard shell script", type: "shell",
path: "scripts/dashboard.sh",
args: args
end
end
end
In the Linux Command Prompt, I typed: exit
Then, I opened a Windows Command Prompt (cmd) and typed: vagrant up
With the following output (only showing the part about dashboard):
ubuntu_k3s: **** Begin preparing dashboard ubuntu_k3s: **** Install Kubernetes Dashboard ubuntu_k3s: namespace/kubernetes-dashboard created ubuntu_k3s: serviceaccount/kubernetes-dashboard created ubuntu_k3s: service/kubernetes-dashboard created ubuntu_k3s: secret/kubernetes-dashboard-certs created ubuntu_k3s: secret/kubernetes-dashboard-csrf created ubuntu_k3s: secret/kubernetes-dashboard-key-holder created ubuntu_k3s: configmap/kubernetes-dashboard-settings created ubuntu_k3s: role.rbac.authorization.k8s.io/kubernetes-dashboard created ubuntu_k3s: clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created ubuntu_k3s: rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created ubuntu_k3s: clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created ubuntu_k3s: deployment.apps/kubernetes-dashboard created ubuntu_k3s: service/dashboard-metrics-scraper created ubuntu_k3s: deployment.apps/dashboard-metrics-scraper created ubuntu_k3s: **** End preparing dashboard
On the Linux Command Prompt, I used the following command:
kubectl get pods --all-namespaces
With the following output:
NAMESPACE NAME READY STATUS RESTARTS AGE kube-system local-path-provisioner-58fb86bdfd-g68v5 1/1 Running 0 13m kube-system metrics-server-6d684c7b5-4zrgx 1/1 Running 0 13m kube-system coredns-d798c9dd-szfg7 1/1 Running 0 13m kube-system helm-install-traefik-xg2zd 0/1 Completed 0 13m kube-system svclb-traefik-frjb9 3/3 Running 0 12m kube-system traefik-65bccdc4bd-rxlv4 1/1 Running 0 12m kubernetes-dashboard dashboard-metrics-scraper-566cddb686-5wvcx 1/1 Running 0 9m38s kubernetes-dashboard kubernetes-dashboard-7b5bf5d559-tn4rh 1/1 Running 0 9m38s
In a Web Browser I entered the URL:
http://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy/

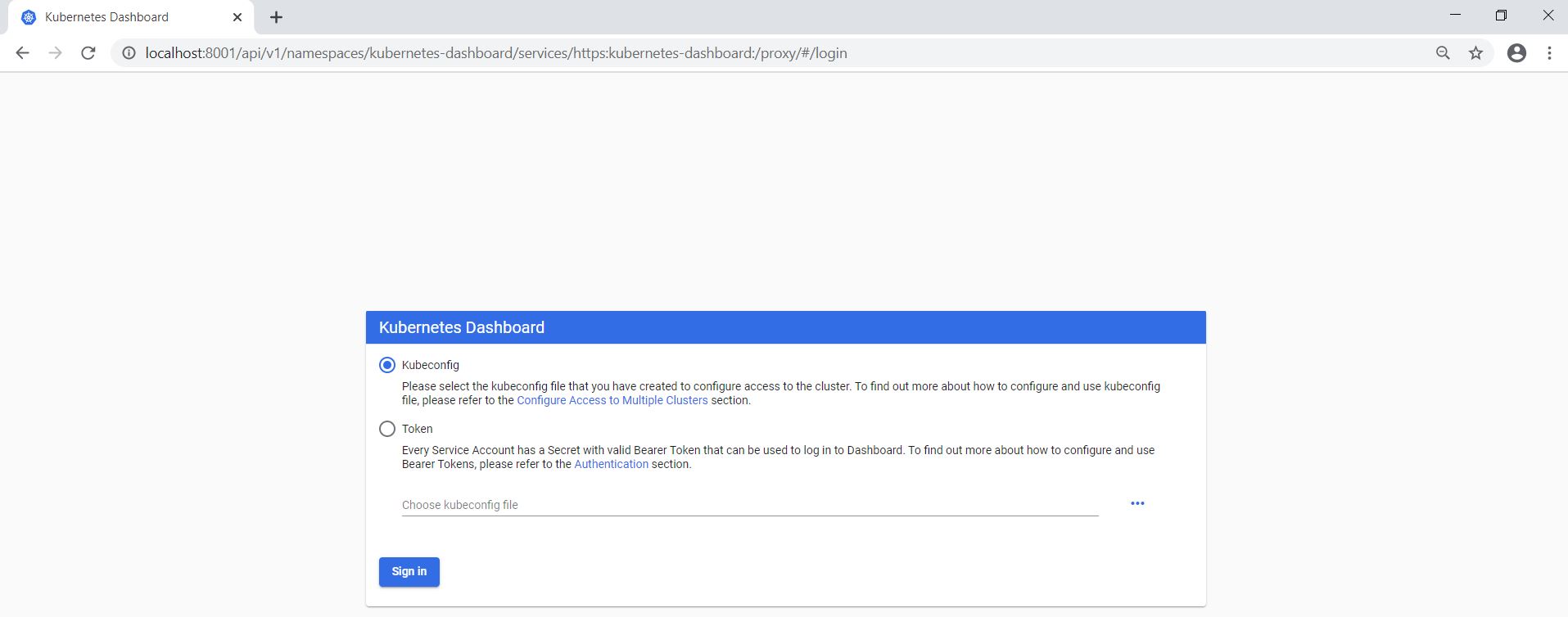

And I got the result I was looking for:

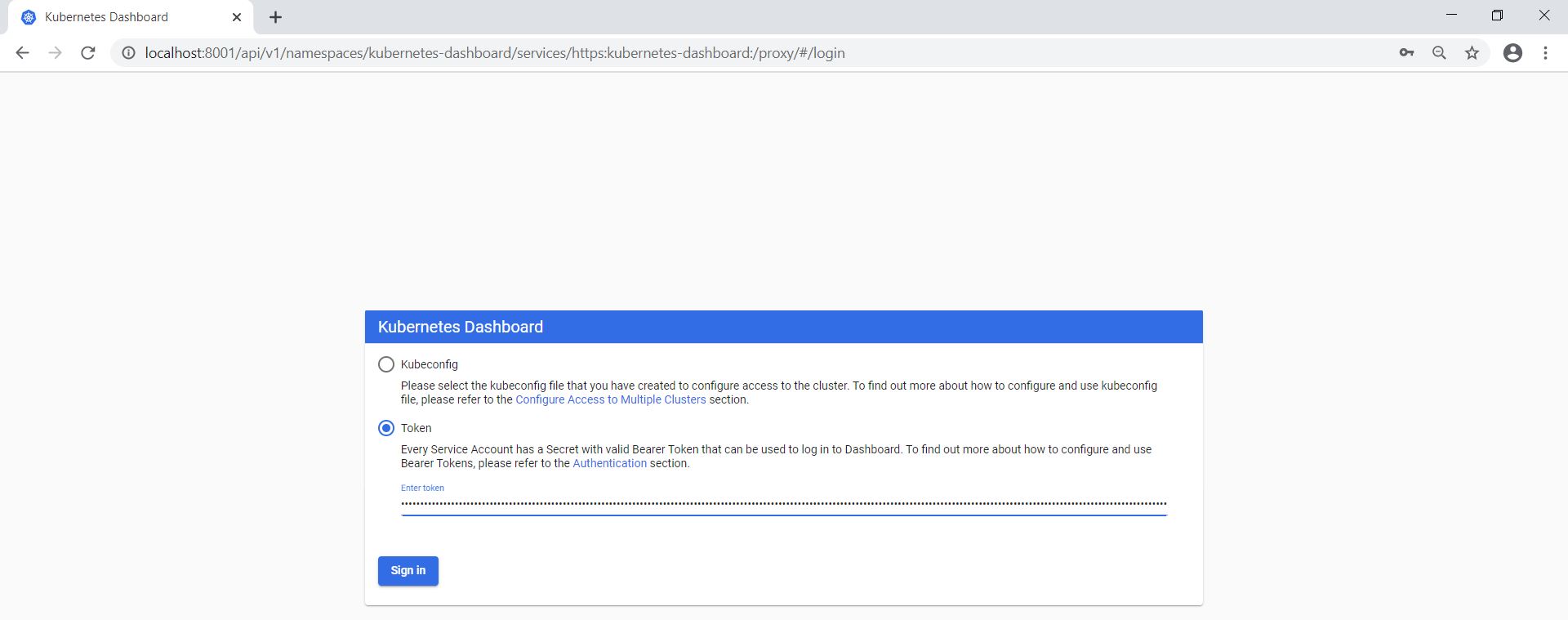

Here, I wanted to use a Token, so first I had a look at the documentation
[https://kubernetes.io/docs/reference/access-authn-authz/authentication/]
Users in Kubernetes
All Kubernetes clusters have two categories of users: service accounts managed by Kubernetes, and normal users.
Normal users are assumed to be managed by an outside, independent service.
In contrast, service accounts are users managed by the Kubernetes API. They are bound to specific namespaces, and created automatically by the API server or manually through API calls. Service accounts are tied to a set of credentials stored as Secrets, which are mounted into pods allowing in-cluster processes to talk to the Kubernetes API.
API requests are tied to either a normal user or a service account, or are treated as anonymous requests. This means every process inside or outside the cluster, from a human user typing kubectl on a workstation, to kubelets on nodes, to members of the control plane, must authenticate when making requests to the API server, or be treated as an anonymous user.
[https://kubernetes.io/docs/reference/access-authn-authz/authentication/]
I found an example (with regard to the Dashboard) for creating a ServiceAccount and ClusterRoleBinding manifest file. A service user is created and a role binding is done to role cluster-admin which does not exist by default in k3s.
[https://github.com/rancher/k3s/issues/233]
apiVersion: v1 kind: ServiceAccount metadata: name: admin-user namespace: kube-system --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: admin-user roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cluster-admin subjects: - kind: ServiceAccount name: admin-user namespace: kube-system
The example also provided information about how to get the token that allowed me to login to dashboard:
kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}')
Based on the examples above, I added to the yaml directory a file serviceaccount-k3s.yaml with the following content:
[in bold, I highlighted the changes in namespace I made]
apiVersion: v1 kind: ServiceAccount metadata: name: admin-user namespace: kubernetes-dashboard
I added to the yaml directory a file clusterrolebinding-k3s.yaml with the following content:
[in bold, I highlighted the changes in namespace I made]
apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: admin-user namespace: kubernetes-dashboard roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cluster-admin subjects: - kind: ServiceAccount name: admin-user namespace: kubernetes-dashboard
Remark about the namespace:
The command kubectl -n kube-system get secret has a long list of scecrets as a result. So, I wanted to use another namespace, in order to make it easier to determine the token that allowed me to login to dashboard. I chose to use the namespace kubernetes-dashboard, because that namespace was created when the Kubernetes Dashboard was installed. See output further above.
In the scripts directory I changed file dashboard.sh to the following content:
[in bold, I highlighted the changes]
#!/bin/bash
echo "**** Begin preparing dashboard"
echo "**** Install Kubernetes Dashboard"
kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-beta4/aio/deploy/recommended.yaml
#Create Helm chart
echo "**** Create Helm chart"
cd /vagrant
cd helmcharts
rm -rf /vagrant/helmcharts/k3s-chart/*
helm create k3s-chart
rm -rf /vagrant/helmcharts/k3s-chart/templates/*
cp /vagrant/yaml/*k3s.yaml /vagrant/helmcharts/k3s-chart/templates
# Install Helm chart
cd /vagrant
cd helmcharts
echo "**** Install Helm chart k3s-chart"
helm install k3s-release ./k3s-chart
# Wait 30 seconds
echo "**** Waiting 30 seconds ..."
sleep 30
#List helm releases
echo "**** List helm releases"
helm list -d
#List secrets
echo "**** List secrets with namespace kubernetes-dashboard"
kubectl get secrets --namespace kubernetes-dashboard
echo "**** Describe secret with namespace kubernetes-dashboard"
kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep admin-user | awk '{print $1}')
kubectl proxy --address='0.0.0.0' /dev/null &
echo "**** End preparing dashboard"
Remark about Helm:
In a previous article I already described how I used Helm.
[https://technology.amis.nl/2019/03/12/using-helm-the-package-manager-for-kubernetes-to-install-two-versions-of-a-restful-web-service-spring-boot-application-within-minikube/]
I had to make some changes however because now Helm version 3.0.2 was used. To determine the version, I used the following command:
helm version
With the following output:
version.BuildInfo{Version:"v3.0.2", GitCommit:"19e47ee3283ae98139d98460de796c1be1e3975f", GitTreeState:"clean", GoVersion:"go1.13.5"}
-
Using helm install ./k3s-chart –name k3s-release resulted in the following:
Error: unknown flag: –nameSo, I changed it to: helm install k3s-release ./k3s-chart
-
Notable changes since Helm v2:
The helm init command has been removed. It performed two primary functions. First, it installed Tiller. This is no longer needed. Second, it setup directories and repositories where Helm configuration lived. This is now automated. If the directory is not present it will be created.
[https://helm.sh/blog/helm-v3-beta/]
Because I wanted to use Helm, I changed the content of Vagrantfile to:
[in bold, I highlighted the changes]
Vagrant.configure("2") do |config|
config.vm.box = "ubuntu/bionic64"
config.vm.define "ubuntu_k3s" do |ubuntu_k3s|
config.vm.network "forwarded_port",
guest: 8001,
host: 8001,
auto_correct: true
config.vm.provider "virtualbox" do |vb|
vb.name = "Ubuntu k3s"
vb.memory = "8192"
vb.cpus = "1"
args = []
config.vm.provision "k3s shell script", type: "shell",
path: "scripts/k3s.sh",
args: args
args = []
config.vm.provision "helm shell script", type: "shell",
path: "scripts/helm.sh",
args: args
args = []
config.vm.provision "dashboard shell script", type: "shell",
path: "scripts/dashboard.sh",
args: args
end
end
end
Remark about helm.sh:
In a previous article I already described how I used Helm and the script file helm.sh.
[https://technology.amis.nl/2019/04/23/using-vagrant-and-shell-scripts-to-further-automate-setting-up-my-demo-environment-from-scratch-including-elasticsearch-fluentd-and-kibana-efk-within-minikube/]]
Again, I opened a Windows Command Prompt (cmd) and typed: vagrant up
With the following output (only showing the part about dashboard):
ubuntu_k3s: **** Begin preparing dashboard ubuntu_k3s: **** Install Kubernetes Dashboard ubuntu_k3s: namespace/kubernetes-dashboard created ubuntu_k3s: serviceaccount/kubernetes-dashboard created ubuntu_k3s: service/kubernetes-dashboard created ubuntu_k3s: secret/kubernetes-dashboard-certs created ubuntu_k3s: secret/kubernetes-dashboard-csrf created ubuntu_k3s: secret/kubernetes-dashboard-key-holder created ubuntu_k3s: configmap/kubernetes-dashboard-settings created ubuntu_k3s: role.rbac.authorization.k8s.io/kubernetes-dashboard created ubuntu_k3s: clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created ubuntu_k3s: rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created ubuntu_k3s: clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created ubuntu_k3s: deployment.apps/kubernetes-dashboard created ubuntu_k3s: service/dashboard-metrics-scraper created ubuntu_k3s: deployment.apps/dashboard-metrics-scraper created ubuntu_k3s: **** Create Helm chart ubuntu_k3s: Creating k3s-chart ubuntu_k3s: **** Install Helm chart k3s-chart ubuntu_k3s: NAME: k3s-release ubuntu_k3s: LAST DEPLOYED: Tue Jan 14 19:53:24 2020 ubuntu_k3s: NAMESPACE: default ubuntu_k3s: STATUS: deployed ubuntu_k3s: REVISION: 1 ubuntu_k3s: TEST SUITE: None ubuntu_k3s: **** Waiting 30 seconds ... ubuntu_k3s: **** List helm releases ubuntu_k3s: NAME NAMESPACE REVISION UPDATED STATUS CHART APP VERSION ubuntu_k3s: k3s-release default 1 2020-01-14 19:53:24.329429114 +0000 UTC deployed k3s-chart-0.1.0 1.16.0 ubuntu_k3s: **** List secrets with namespace kubernetes-dashboard ubuntu_k3s: NAME ubuntu_k3s: ubuntu_k3s: ubuntu_k3s: ubuntu_k3s: ubuntu_k3s: TYPE ubuntu_k3s: ubuntu_k3s: ubuntu_k3s: ubuntu_k3s: ubuntu_k3s: DATA AGE ubuntu_k3s: default-token-l2nr4 kubernetes.io/service-account-token 3 34s ubuntu_k3s: kubernetes-dashboard-token-54p9k kubernetes.io/service-account-token 3 34s ubuntu_k3s: kubernetes-dashboard-certs Opaque 0 34s ubuntu_k3s: admin-user-token-trfdn kubernetes.io/service-account-token 3 31s ubuntu_k3s: kubernetes-dashboard-csrf Opaque 1 34s ubuntu_k3s: kubernetes-dashboard-key-holder Opaque 2 34s ubuntu_k3s: **** Describe secret with namespace kubernetes-dashboard ubuntu_k3s: Name: admin-user-token-trfdn ubuntu_k3s: Namespace: kubernetes-dashboard ubuntu_k3s: Labels: ubuntu_k3s: Annotations: kubernetes.io/service-account.name: admin-user ubuntu_k3s: kubernetes.io/service-account.uid: b65dc46c-0833-4fcf-b833-cfec45139764 ubuntu_k3s: ubuntu_k3s: Type: kubernetes.io/service-account-token ubuntu_k3s: ubuntu_k3s: Data ubuntu_k3s: ==== ubuntu_k3s: token: eyJhbGciOiJSUzI1NiIsImtpZCI6IlhyREtIa21HdlhBQVd2Nm9kTGtJU3RUTnlWWTNJaHI2blNPb3J5eWRwR2cifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXRyZmRuIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJiNjVkYzQ2Yy0wODMzLTRmY2YtYjgzMy1jZmVjNDUxMzk3NjQiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.bJBCZmV7oIUuljz9-I1oO71js-mAOZHc4wLaUwPayYAqAzx_kTM_oFwSEBtieFxmwYP2CTP2QJZM6G8OBGvLyUiQyRumaTavFo51Rh-eW9wSXO24p6Sf7BdQRaJsjS4lnInDGd1Ksrv-Az6LI10rrIJXHgI7jz1wNmSdSqk3OHGXgioKZL0qjlrwgS6UviTe-0geMFxvdGUogUWvShmQkR-sGRSfACYX8-RZdFSc3wRWsoIVo_4NME-q8uNm79BaP5RbPAC-z-2amVHJQUUtgs_88pY-Qu-iiDqUpC823pHYkjB65w5RICjjqlKIrWqAptT35fBFSOfrUKf_Oy483A ubuntu_k3s: ca.crt: 526 bytes ubuntu_k3s: namespace: 20 bytes ubuntu_k3s: **** End preparing dashboard
In the Web Browser on my Windows laptop, I entered the value for the token (seen above) and clicked on button “Sign in”.

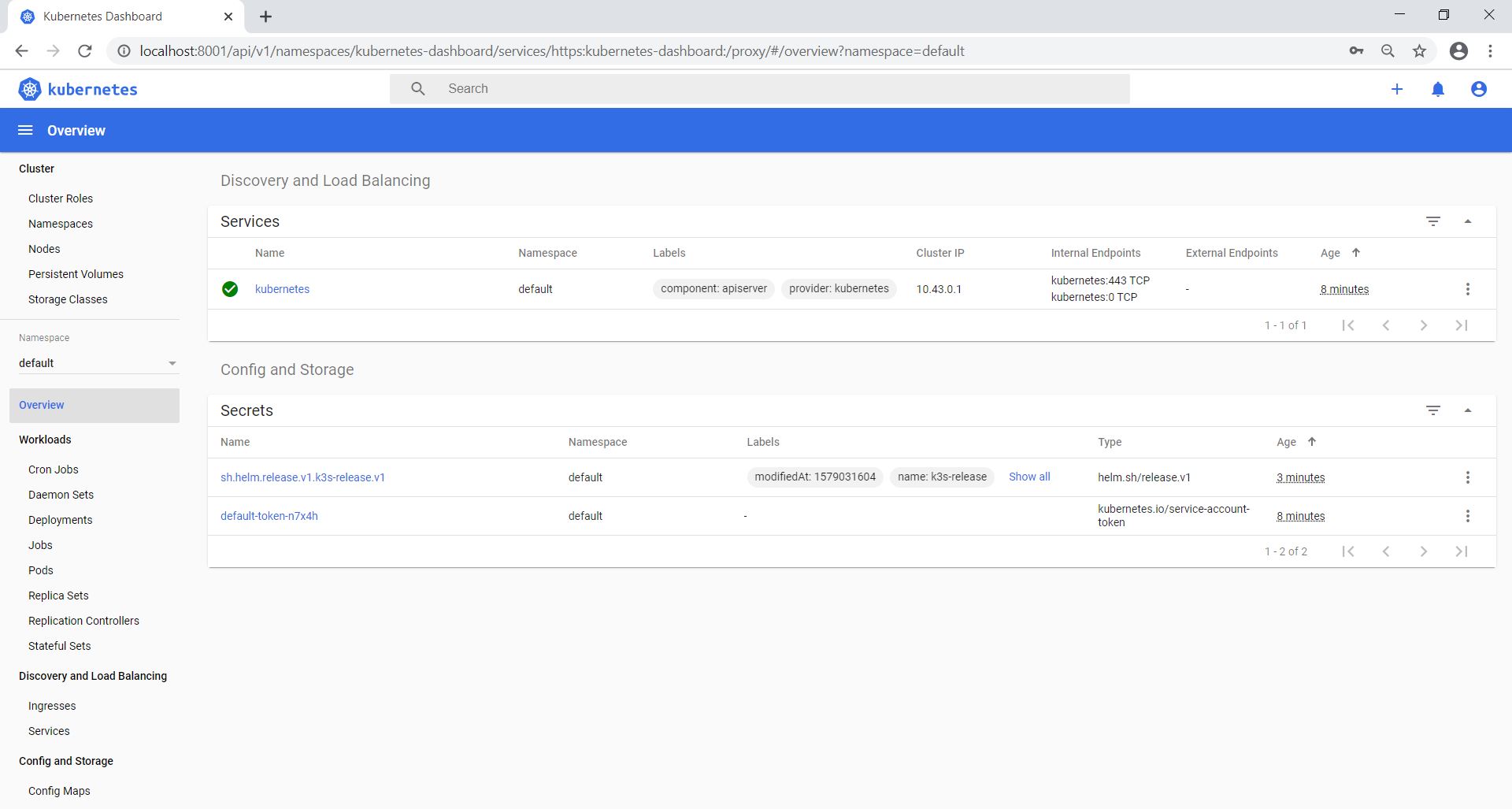

The Kubernetes Dashboard was opened with the default namespace selected.

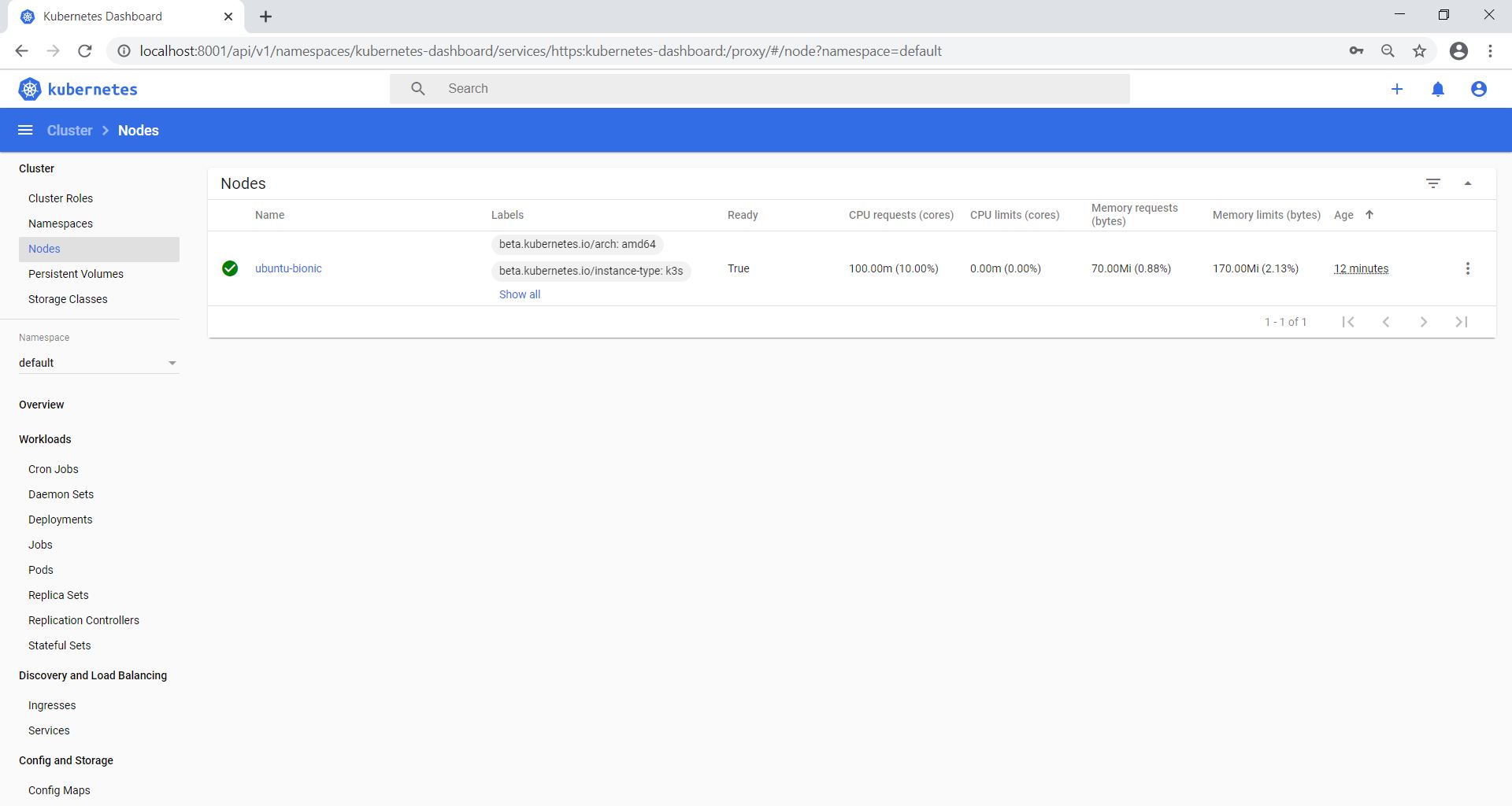

Next, I navigated to Nodes. Here you can see that the Kubernetes Cluster consists of one Node.

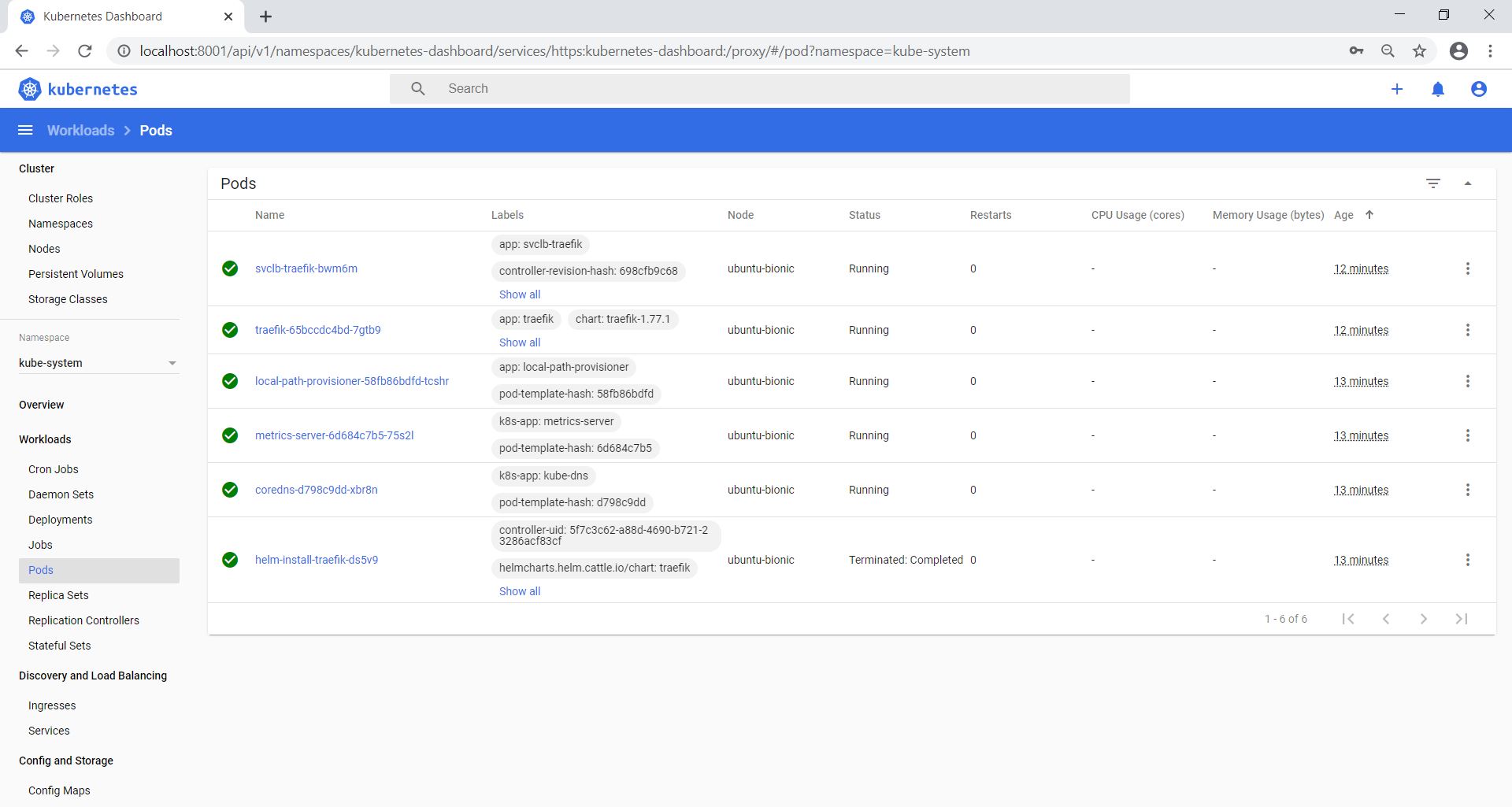

Finally, I changed the namespace to kube-system and navigated to the Pods, with the following result, similar to the list we saw earlier.
So now it’s time to conclude this article. In this article I described how I used Vagrant and shell scripts to automate setting up my demo environment from scratch, including k3s, Helm and Kubernetes Dashboard on top of an Ubuntu guest Operating System within an Oracle VirtualBox appliance. It is indeed relatively easy to install. For me, the next step is to actually start using it, to find out how it compares, for example, to Minikube.
