Docker, WebLogic Image on Microsoft Azure Container Service

Luc Gorissen 1
0 0
Read Time:5 Minute, 54 Second

This blog series shows how to get started with WebLogic and Docker – in 3 different Clouds:

This blog is running a WebLogic Docker Container image from the Docker Hub registry on the Microsoft Azure Container Service.

Starting point & Outline

Starting point for this blog is:

  • A computer running Ubuntu and with Docker installed
  • A WebLogic Docker Container Image in a private Docker Hub repository, as described in this blog
  • Access to Microsoft Azure, e.g. via a trial subscription

The blog itself consists of 2 main parts:

  1. Create an Azure Container Service
  2. Run the container image from the Docker Hub repository on the created Cloud Service


Create an Azure Container Service

The Azure Container Service offers the choice between using Docker Swarm, DC/OS, or Kubernetes for orchestration/management of the Docker container solution. For our specific use case, I picked Docker Swarm.

The high level steps for creating your Azure Container Service are:

  • create an SSH RSA public key
  • deploy an Azure Container Service cluster (via the Azure portal), by using an Azure Resource Manager template (for Docker Swarm)

Let’s get started.

  • create an SSH RSA public key

Log in into the Ubuntu machine and generate the key:

developer@developer-VirtualBox:~$ ssh-keygen

Generating public/private rsa key pair.

Enter file in which to save the key (/home/developer/.ssh/id_rsa):

Enter passphrase (empty for no passphrase):

Enter same passphrase again:

Your identification has been saved in /home/developer/.ssh/id_rsa.

Your public key has been saved in /home/developer/.ssh/

The key fingerprint is:

SHA256:Lpm8BrZoQscz1E6Maq9J0WdjjLjHAP5fxZXBdlrdzMY developer@developer-VirtualBox

The key's randomart image is:

+---[RSA 2048]----+
|          ..  .+.|

|           ooo .E|

|.   +     .o+  . |

|o ooo+  . ..     |

| =+oo*  So       |

| +*=*o.+.        |

|ooo*oo=..        |

|o =.o oo         |

| =.  o.          |

  • deploy an Azure Container Service cluster (via the Azure portal), by using an Azure Resource Manager template (for Docker Swarm)

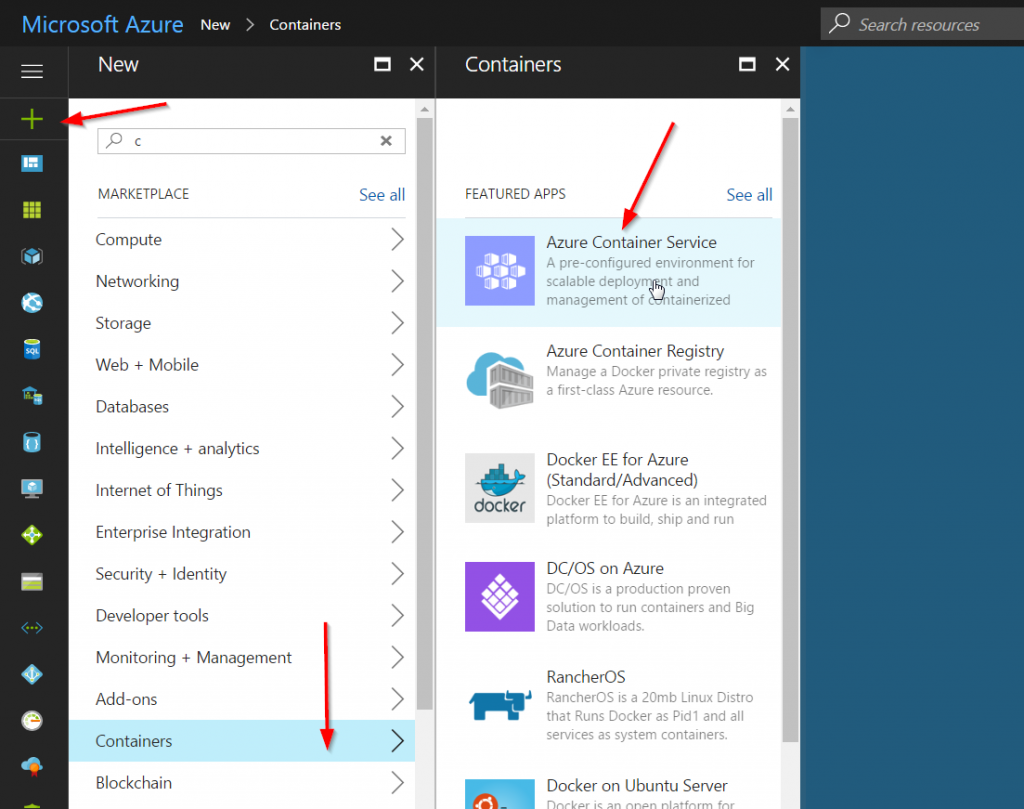

First, login into the Microsoft Azure Portal on Here, click the + sign, select ‘Containers’ and then ‘Azure Container Service’:

The next screen appears:

Click the Create button.

Complete the settings like shown in the figure above and click OK to move to the next page:

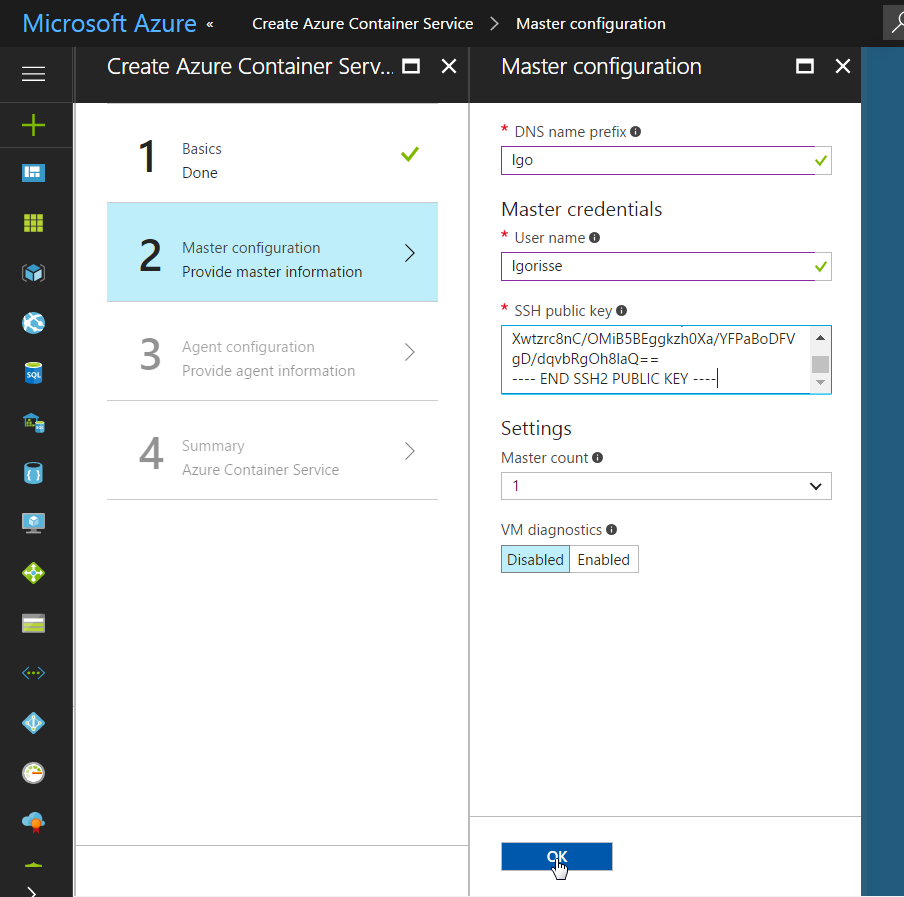

For the Master configuration, complete the settings as shown above. Use the SSH key that was created in step (1). Note that the ‘Master’ is the Manager node in a Docker Swarm. One Master node is enough for this simple configuration. Next, click OK.

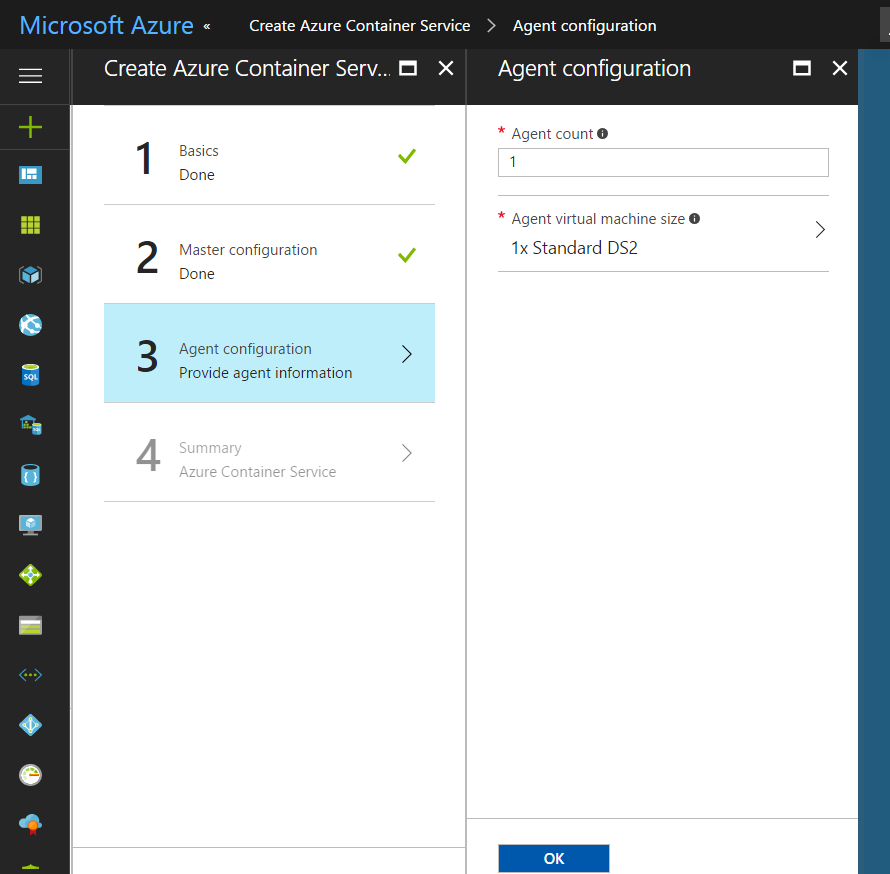

That brings us to the Agent configuration page, where Agent is actually a Docker Swarm Worker node. We need only 1 agent. For the Virtual Machine size, the DS2 profile is chosen, which has 2 cpu cores and 7GB of RAM. That should be enough to run the WebLogic container on.

Click OK to continue:

Review the Summary page, and the click OK to start creation of your Azure Container Service:

After some time, your Azure Container Service will be created!


Run the WebLogic image from Docker Hub registry

Now, we will start to get the WebLogic image from the Docker Hub registry running on the Azure Container Service. This is achieved from the command line of our local Ubuntu machine – the one that also has Docker installed.

The following steps will be done:

  • Make a tunnel to the Master node
  • Run the WebLogic container
  • Add a LoadBalancer rule for forwarding port 7001
  • Test

Let’s get started.

  • Make a SSH tunnel to the Master node

From the local Ubuntu machine, make an SSH tunnel to the Master node. In that way, docker commands from the Ubuntu machine will be handled by the Docker Swarm container on the Master node. First, establish the tunnel, set the Docker host that will be used by the local Ubuntu machine and then list the images. The output of the ‘docker images list’ command shows what Docker images are available on the Master node – in our case: none (as this is a fresh installation):

developer@developer-VirtualBox:~$ ssh -fNL 2375:localhost:2375 -p 2200

developer@developer-VirtualBox:~$ export DOCKER_HOST=:2375

developer@developer-VirtualBox:~$ docker images list

REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE

  • Run the WebLogic container

Now, give the commands below on the local Ubuntu machine to start the WebLogic container on the Azure Container Service. The WebLogic container will run on the agent machine.

The following steps have to be done:

  • Login into the Docker Hub, using your Docker Hub account. This is necessary because the Docker Hub registry that I used is a private registry (= password protected)
  • Pull the WebLogic Container image with the docker pull command
  • Run the image with the port mapping for port 7001
  • Notice in the output below that I also had a yeasy/simple-web container running
developer@developer-VirtualBox:~$ docker login

Login with your Docker ID to push and pull images from Docker Hub. If you don't have a Docker ID, head over to to create one.

Username: lgorissen


Login Succeeded

developer@developer-VirtualBox:~$ docker pull lgorissen/myfirstweblogic

Using default tag: latest

swarm-agent-595FAAF3000001: Pulling lgorissen/myfirstweblogic:latest... : downloaded

developer@developer-VirtualBox:~$ docker run -d -p 7001:7001 lgorissen/myfirstweblogic


developer@developer-VirtualBox:~$ docker container ps

CONTAINER ID        IMAGE                       COMMAND                  CREATED                  STATUS              PORTS                                                   NAMES

6506b88dc7cc        lgorissen/myfirstweblogic   ""       Less than a second ago   Up 21 seconds       5556/tcp, 7002/tcp, 8453/tcp,>7001/tcp   swarm-agent-595FAAF3000001/competent_allen

fd4c32b1fd19        yeasy/simple-web            "/bin/sh -c 'pytho..."   8 minutes ago            Up 8 minutes>80/tcp                                     swarm-agent-595FAAF3000001/pensive_pike

  • Add a LoadBalancer rule for forwarding port 7001

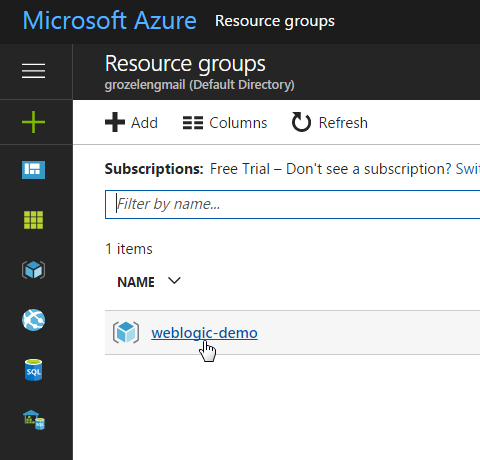

In this set-up, the Agent machine can’t be reached over port 7001. A route in the LoadBalancer that routes traffic for this port has to be created. Creating that LoadBalancer route can be done in the Azure Portal. First, look up the resource groups in the portal:

Open the weblogic-demo resource group by clicking on it:

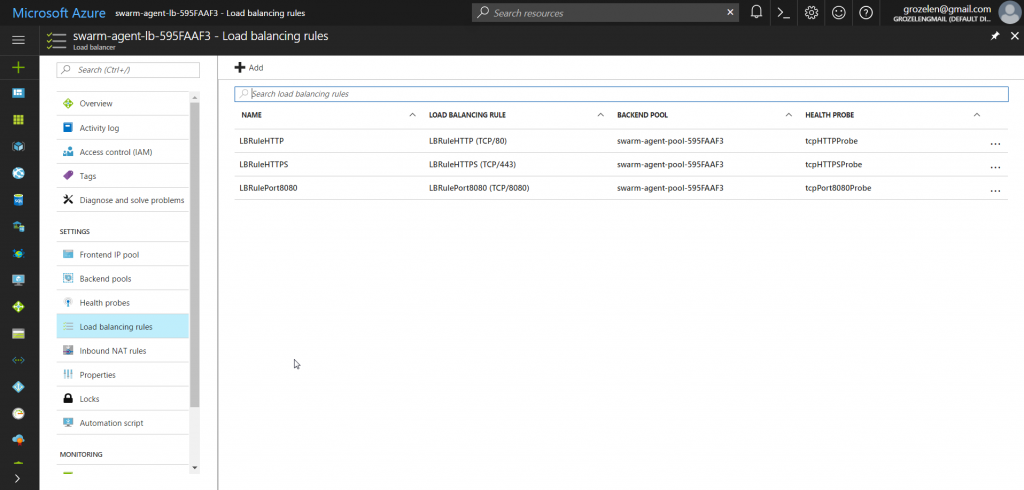

Click on the Load balancer for the agent (remember, out WebLogic container is running on the agent virtual machine). That brings up the Load balancer screen:

Click on the Add sign to add a new load balancer rule for port 7001:

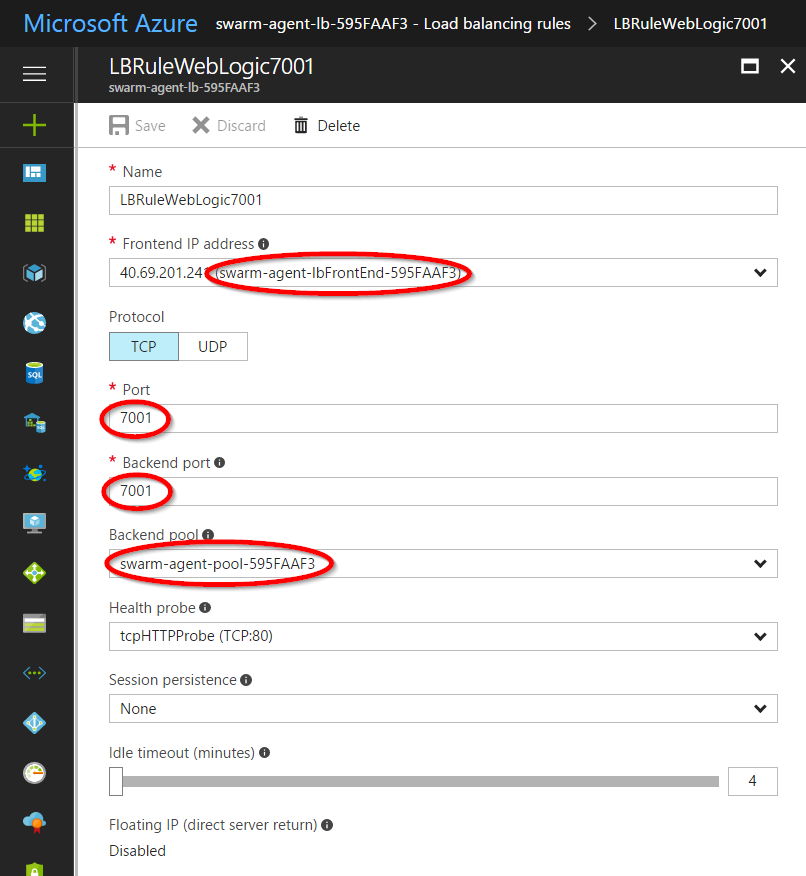

Enter front-end, back-end and port numbers to establish the new route and save it.


  • Test

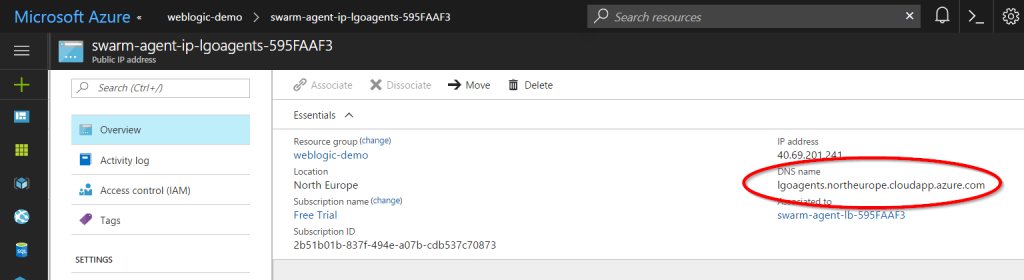

Again look into the resource groups in the Azure Portal to find the public dns name for the agents:

From the figure above, we see that the url to use for accessing the WebLogic container is:

Nifty :-S
