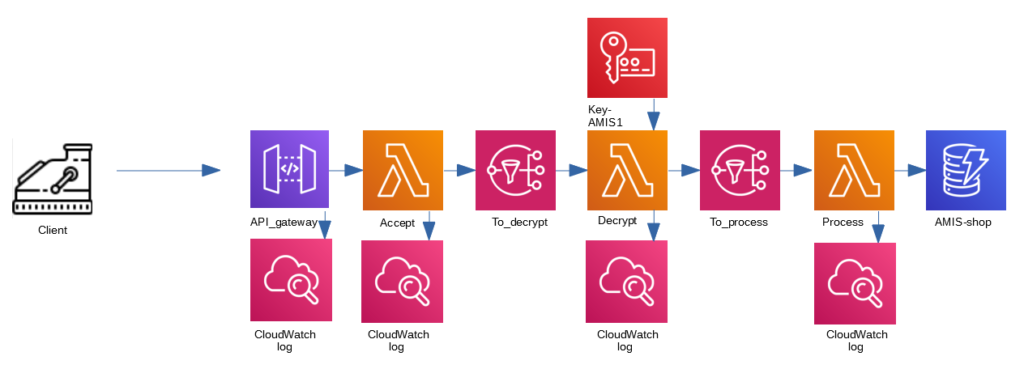

In the previous blog [1], I wrote about an example shop application in AWS. Let me show the AWS architecture of this shop again:

AWS shop example: Lambda Architecture without certificates and DNS 1

In this blog, I will tell a little bit more about the Lambda functions in this shop example. Lambda functions are serverless functions: you don’t need to configure a virtual machine in the cloud to use them. You are also not able to logon to the machine where your function runs. One of the advantages is that you will never have to patch these servers with updates: Amazon will do that for you.

You can write Lambda functions in several languages. Let’s look at the list that is available on the moment you read this blog: logon to your AWS account, in the top menu select Servers, type and choose Lambda:

AWS shop example: Lambda 01 Go to service lambda

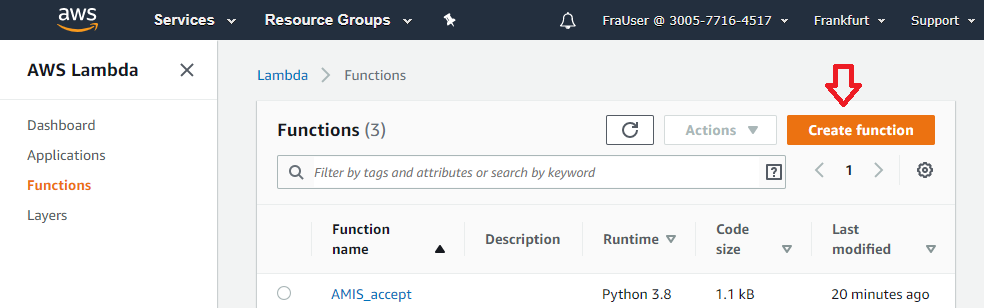

After that, click on the “Create function” button:

AWS shop example: Lambda 02 Create function button

Click now on the arrow down image under Runtime:

AWS shop example: Lambda 03 Arrow down under Runtime

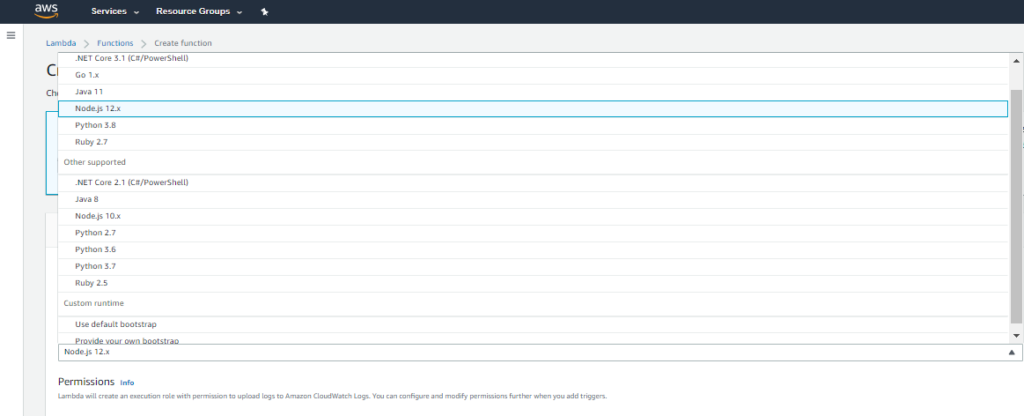

You will see the list of all runtimes that are available now:

AWS shop example: Lambda 04 List of runtimes

The code I present here, is written in Python version 3.8. Some libraries (for example: default system libraries or the libraries to access AWS services) are already present, other libraries have to be send with your function code to let your function work. In this example, we only use default system libraries and the boto3 library to access AWS functions, so the functions in this example are pretty simple.

Connection with AWS Identity and Access Management (IAM)

In general, your Lambda functions will also need permissions to use other AWS services. In our shop example, all lambda functions use AWS CloudWatch for logging. The accept and decrypt functions will send data to SNS, the process function will send data to DynamoDB. The decrypt function also uses AWS Key Management Services (KMS) to do the decryption of the data.

To give the Lambda function access to these services, the access function can assume a role. This role is written in AWS Identity and Acccess management.

We’ll look into that now: go to AWS IAM:

AWS shop example: Lambda 05 Go to service IAM

In the left menu, click on roles:

AWS shop example: Lambda 06 Roles

Let’s look at one role: click on the link AMIS_lambda_accept_role:

AWS shop example: Lambda 08 AMIS lambda accept role

You see that there is one policy attached: the AMIS_blog_lambda_access_policy. When you click on this policy, you see that the accept access policy allows for the creation of AWS CloudWatch groups, the creation of AWS CloudWatch log streams and the permission to add (put) AWS CloudWatch log events. The policy also allows for publishing SNS events and to get public KMS keys.

AWS shop example: Lambda 09 AMIS lambda accept policy

When you look at the policies for the other Lambda functions, you will see that all policies are slightly different. It is good practice to create a role and a policy for every function: you then use the least privilege security principle.

Inside the accept function

Let’s go back to Lambda and look at the definition of the accept function. Go to the Lambda service (see the first screen image in this blog if you need to), and click on the link of the AMIS_accept Lambda function (not on the radio button in front of it):

AWS shop example: Lambda 10 Link AMIS accept in Lambda

You will now see the code of AMIS_accept:

import json
import boto3
import os

# Main function
# -------------
def lambda_handler(event, context):

  from botocore.exceptions import ClientError


    # Log content of the data that we received from the API Gateway
    # The output is send to CloudWatch

    print("BEGIN: event:"+json.dumps(event))

    # Initialize the SNS module and get the topic arn.
    # These are placed in the environment variables of the accept function by the Terraform script

    sns = boto3.client('sns')
    sns_decrypt_topic_arn = os.environ['to_decrypt_topic_arn']

    # Publish all the incomming data to the SNS topic
    message = json.dumps(event)

    print ("Message to to_decrypt: " + message)

      TopicArn = sns_decrypt_topic_arn,
      Message = message

    # This succeeded, so inform the client that all went well
    # (when there are errors in decrypting the message or dealing with the data, the client will NOT be informed by the status code)

    statusCode = 200
    returnMessage = "OK"

  except ClientError as e:

    # Exception handling: send the error to CloudWatch

    print("ERROR: "+str(e))

    # Inform the client that there is an internal server error.
    # Mind, that the client will also get a 500 eror when there is something wrong in the API gateway.
    # In that case, the text is "Internal server error"
    # To be able to make the difference, send a specific application text back to the client

    statusCode = 500
    returnMessage = "NotOK: retry later, admins: see cloudwatch logs for error"

  # To make it possible to debug faster, put anything in one line. Also show some meta data that is in the context

  print("DONE: statusCode: " + str(statusCode) + \
            ", returnMessage: \"" + returnMessage + "\"" + \
            ", event:"+json.dumps(event) + \
            ", context.get_remaining_time_in_millis(): " + str(context.get_remaining_time_in_millis()) + \
            ", context.memory_limit_in_mb: " + str(context.memory_limit_in_mb) + \
            ", context.log_group_name: " + context.log_group_name + \
            ", context.log_stream_name: "+context.log_stream_name)

  return { "statusCode": statusCode,
           "headers" : { "Content-Type" : "application/json" },
           "body": json.dumps(returnMessage) }

When you use print statements, these will automatically be send to CloudWatch. If necessary, a new group and a new log stream will be created.

To be able to send a message to the SNS topic, the boto3 library is used. We have to know what the Amazon Resource Name (ARN) for the pipeline is. To keep the code clean, the ARN of this pipeline is not in the code itself, but in the environment variables of this function. You can see this when you scroll down: the environment variables are directly under the code for the function:

AWS shop example: Lambda 11 Lambda environment variables

In my example, Terraform is used to deploy the AWS objects. Both the SNS topics and the lambda functions are deployed in the same script, the ARN from the SNS topic is added as an environment variable to the lambda function.

In the code, you see how the environment variable is retrieved from the environment, and then the whole event as it is sent to the accept function is used as a message to the decrypt topic.

AWS shop example: Lambda 12 Code environment variable and SNS publish

When I discussed the policy for the accept function, you might have asked yourself why we needed KMS keys in this function: we don’t seem to use encryption in this function. Well, the environment variables are always encrypted, using a KMS keys. Lambda uses a default key for this, you can see this by going to the KMS service and click on AWS managed keys in the left window. You will see that one of the keys is aws/lambda:

AWS shop example: Lambda 12aa AWS lambda key

The decryption of the environment variable is done in the background, we don’t have to add code for this ourselves.


In this example, it is quite clear where the Lambda function starts: this code just has one function. It is however possible to have multiple functions in your code. The AWS environments needs to know what the name of the function is that will be the starting point for the execution. This is called the handler.

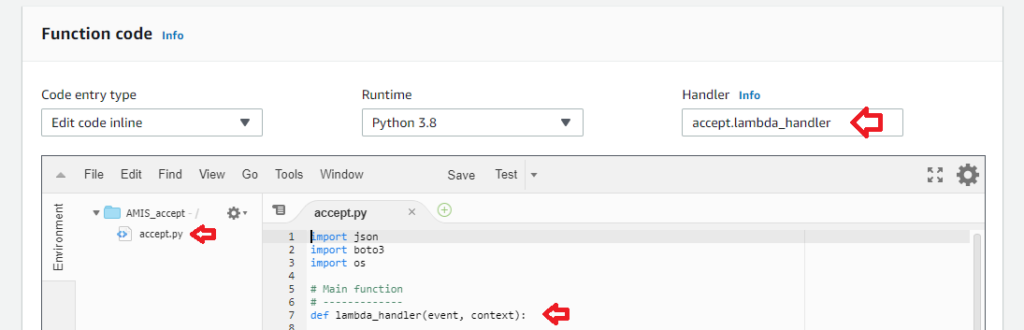

You can see the handler name just above the code: in our case it is called “accept.lambda_handler”. In this name, accept refers to the name of the file with the code, in our case The part behind the dot, refers to the name of the function: in our case lambda_handler.

AWS shop example: Lambda 12a Lambda handler 1

Testing Lambda functions

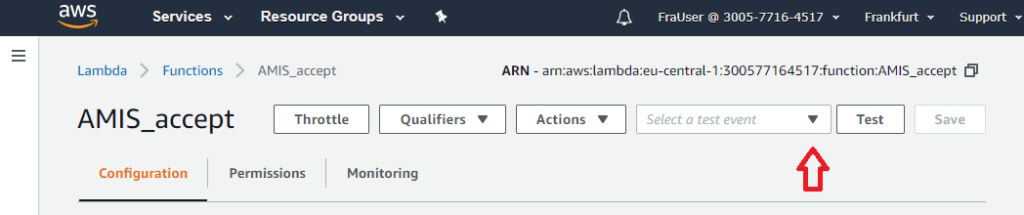

In the top of the screen, you see some options to test our Lambda function. Let’s try them out: click on the button-down arrow next to “Select a test event”:

AWS shop example: Lambda 13 Arrow down next to select a test event

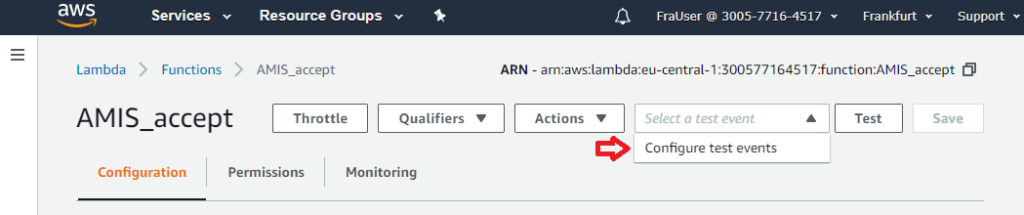

You can now select “Configure test events”:

AWS shop example: Lambda 14 Configure test events

You see pretty straightforward test json. You can change this in any way you want. When you are ready, change the event name (f.e. to “first”) use the Create button to create the test template:

AWS shop example: Lambda 15 First test

You can fire off the event, by clicking on the Test button:

AWS shop example: Lambda 16 Test

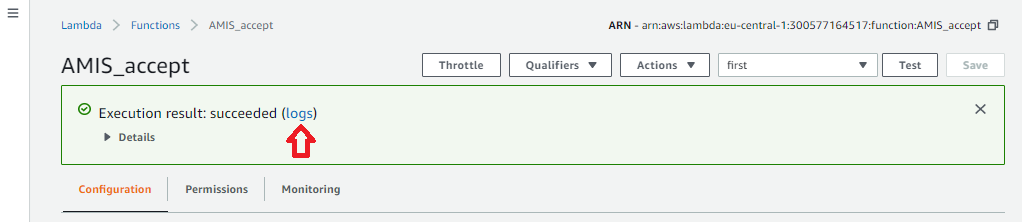

The test was successful. Let’s look what information is send to CloudWatch: click on the link “logs” (next to “Execution result: succeeded):

AWS shop example: Lambda 17 Successful logs

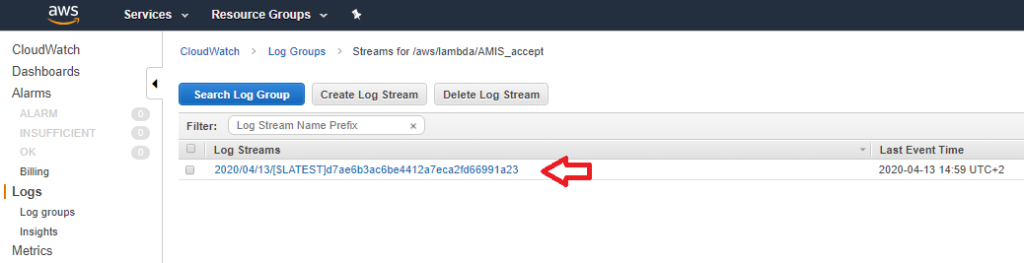

A new tab opens, with the CloudWatch logs. You can see that there is a log stream, with the date in it. It also has a recent Last Event Time. Click on the most recent Log Stream in this screen:

AWS shop example: Lambda 18 CloudWatch log group

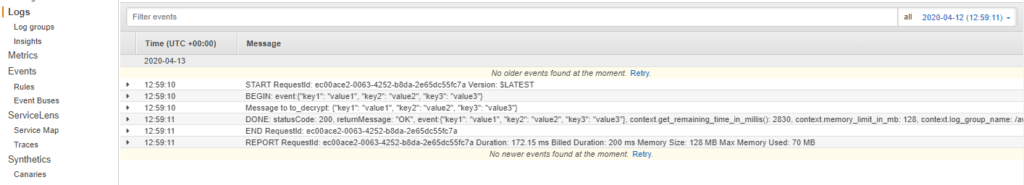

You can see that the command print(“BEGIN: event:”+json.dumps(event)) sent out our test event. The last line is also interesting: it will always be added to every Lambda call, and it contains the Duration, the Billed Duration, the memory size and the max memory size that is used.

AWS shop example: Lambda 18a Log messages

Lambda’s are billed both based on the number of milliseconds that the function has run, and on the amount of memory that has been assigned. In our case, we assigned the minimum amount of memory possible.

If you want to go to Cloudwatch logs without sending a test message, then go to the CloudWatch service and choose the Logs > Log groups item in the left menu.

AWS shop example: Lambda 18b Cloudwartch without test event

Let’s go back to the tab of the Lambda function and scroll down to where these settings are configured: these settings are below the code, below the environment variables we looked at before. Click on Edit:

AWS shop example: Lambda 19 Basic settings

When you look at the default settings, you can see that the amount of memory is by default 128 MB and the timeout is by default 3 seconds. You can also see the name of the role that we saw earlier. When you need more memory, or more time than you can change these settings. The maximum timeout value is 15 minutes. You will see that when you ask for more memory, then the amount of time that your Lambda function uses will be lower. AWS will use better performing servers for Lambda functions that ask for more memory.

AWS shop example: Lambda 20 Edit basic settings

When you play along, you will see a different duration for the same Lambda function. The first time will take much more time than the second or the third time. Sometimes, however, the function will create a new log group and then start again with a first invocation which again will take relatively long.

In my environment, the first invocation takes more than 1000 milliseconds (one second), where the second or third one takes 100 – 300 milliseconds. This difference is there, because the first time the Lambda function is called, it has to be retrieved and to be put in memory. When this is done and the Lambda is executed, following events can use the same Lambda function.When the function isn’t used for some time, it will be swapped out of memory. We will see more about this in a later blog about the testing of the shop example.

Play along

AWS shop example: Lambda bke 1

I scripted the solution [2]. You can follow along and create this solution in your own environment, see the previous blog [1] and the file in the vagrant directory.



[2] Link to github account: . For the example in this blog, look in the shop-1 directory.
