Batch Aggregation of files in BPEL process instances based on correlation
2Remco is an interesting guy with unexpected ideas springing from a creative brain. He can make life interesting, challenging and puzzling. This time he had another interesting challenge – not all that weird to be honest. The challenge in short was:

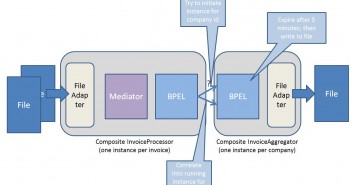

Our invoicing system produces files that contain one or more invoice entries. Every entry describes an invoice for a certain company we do business with. There can be multiple invoice entries for the same company. The objective is to aggregate together all invoice entries for a company – potentially from many different file. For each invoice entry – some special processing involving service calls is required. Once all entries for a company have been collected and aggregated, some additional action is required – for example recording the company invoice aggregate in a database or in a file and call a webservice to perform additional processing. The files with invoices are produced over a period of a couple of hours. It is important that the processes performing the aggregation are reliable – they should not lose any entries.
The specific question we investigated is: can we solve this puzzle using Oracle SOA Suite 11g? And an early More >
Do it yourself Transaction Recorder – when standard auditing is not available
0In the recently published blog article Database Transaction Recorder – Adding Who to When and What to make Flashback take over from Journalling tables (http://technology.amis.nl/blog/10911/database-transaction-recorder-adding-who-to-when-and-what-to-make-flashback-take-over-from-journalling-tables) I have discussed how the replacement in database oriented applications of journaling tables by flashback data archives can be completed by recording the transaction history – including the client identifier identifiying the real end user behind a transaction – using the standard auditing features of the Oracle Database.
This same article discusses how there may be situations where standard auditing is not an option to implement – for example because of prohibitive DBA regulations or the [perceived] complexity of managing the contents of the sys.aud$ table. In such circumstances, other alternatives can be considered. Note that these are inferior: they are more complex in terms of code, require more effort and introduce more run time overhead. However, they too will do the job and may be more appropriatefor a particular situation.
Ways to instantiate a variable in Oracle Service Bus based on a static XML document
4Today we had an interesting exploration into the many ways available in the Oracle Service Bus to load a piece of XML into a variable in a message flow – to use as the source for populating part of a to-be-forwarded request message to the business service or for enriching the response message. Even such a seemingly straightforward task turned out to have a number of ways to approach, each with their own merits and complexities.
The various approaches we uncovered in a space of ten minutes or so:
- use a static expression in an Assign action, simply copying the XML content into the variable
- use the function fn:doc that can load XML from a local file and assign the XML to a variable that way
- introduce the file adapter to load the XML file from the local file system and assign it to a variable; this would also support non-XML formats – like comma separated values – that can be converted to XML
- use the database adapter (or the fn-bea:execute-sql) to retrieve the XML content from a relational database
- store the XML content in an XQuery transformation
- do any of the above and wrap it inside a Proxy Service that can be invoked from from other services, potentially governed by the service More >
